Lewitt LCT 940

TUBE // WARM // RICH // NUANCED // CLEAR // FET
... an infinite number of microphones in a single housing

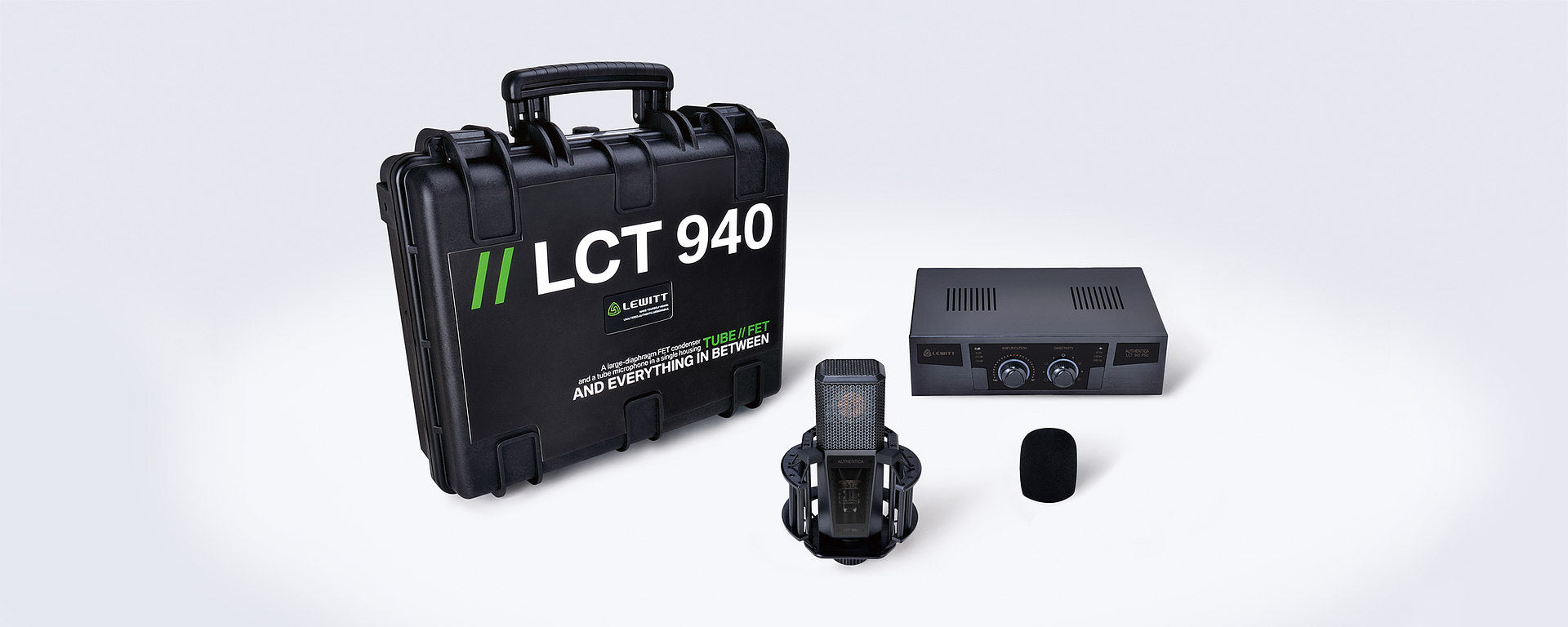

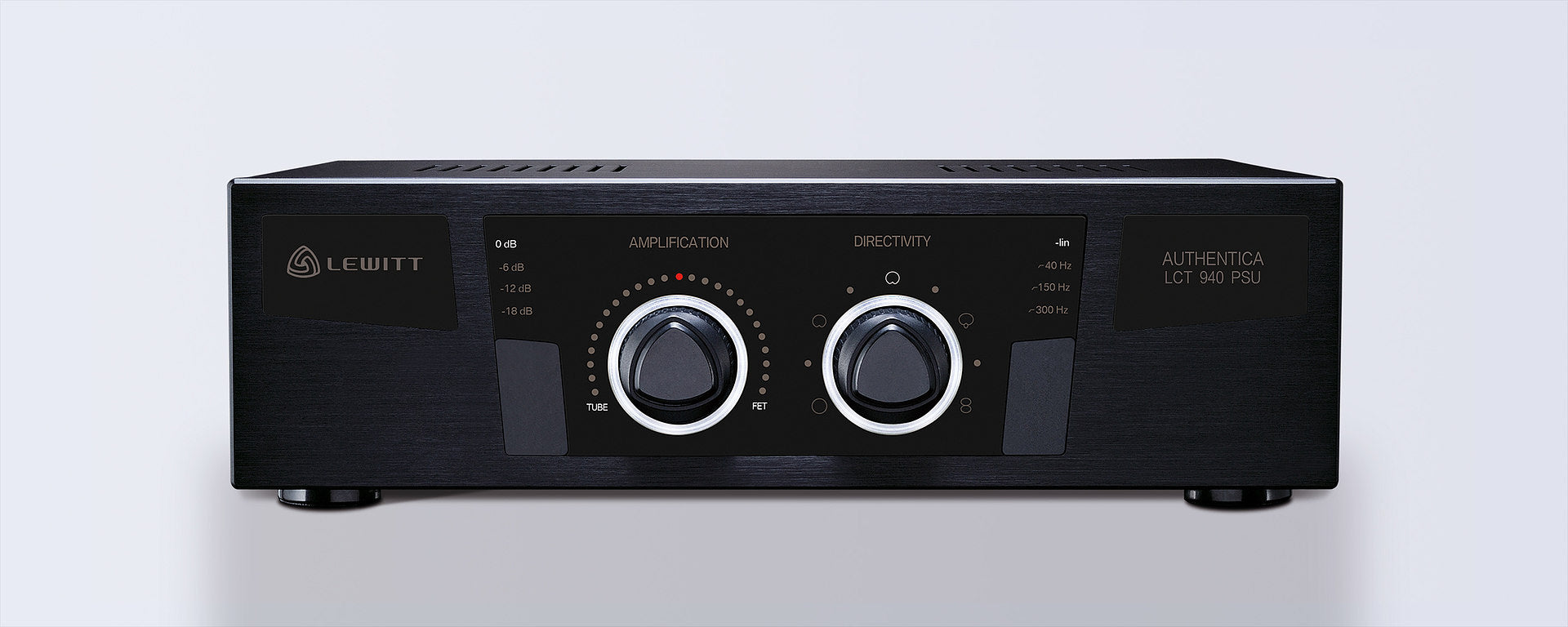

The LCT 940 combines a premium large-diaphragm FET condenser microphone and a top-notch tube microphone in a single housing. Choose between the two main settings of "TUBE" and "FET", or find your sweet spot in between - they are mixable at any possible ratio.

Specifications
Type
    Condenser, externally polarized
Acoustical operating principle
    Pressure gradient transducer
Transducer Ø
    25.4 mm, 1 in
Polar pattern
    Omni, wide cardioid, cardioid, supercardioid, figure-8, four intermediate patterns
Frequency range
    20 ... 20,000 Hz
Sensitivity
    23 mV/Pa, -33 dBV/Pa (cardioid)
    20 mV/Pa, -34 dBV/Pa (omni)
    23 mV/Pa, -33 dBV/Pa (figure-8)
Equivalent noise level (FET)
    8 dB (A), cardioid
    9 dB (A), omni
    8 dB (A), figure-8
Equivalent noise level (Tube)
    12 dB (A), cardioid
    13 dB (A), omni
    12 dB (A), figure-8
Max. SPL for 0.5 % THD (FET)
    143 dBSPL, 0 dB pre-attenuation
Max. SPL for 0.5% THD (Tube)
    140 dBSPL, 0 dB pre-attenuation
Signal / noise ratio (FET)
    86 dB (A)
Signal / noise ratio (Tube)
    82 dB (A)
Dynamic range of FET mic. Amp.
    135 dB
Dynamic range of Tube mic. Amp.
    128 dB
Pre-attenuation pad
     0 dB
    -6 dB
    -12 dB
    -18 dB
Low-cut filter
    linear
    40 Hz (12 dB/oct)
    150 Hz (6 dB/oct)
    300 Hz (6 dB/oct)
Internal impedance
    200 Ω
Rated load impedance
    1,000 Ω
PSU - supply voltage
    230 V, 50 Hz
    110 V, 60 Hz
Current consumption
    170 mA
Connector
    Gold plated 11-pin XLR
Microphone dimensions
    192 x 60 x 46 mm, 7.5 x 2.4 x 1.8 in
PSU dimensions
    250 x 150 x 70 mm, 9.8 x 5.9 x 2.8 in
Microphone net weight
    662 g, 23.3 oz
PSU net weight
    1930 g, 68.1 oz
