Mackie AXIS Digital Mixing System

BETTER WORKFLOW
THROUGH INNOVATION

Designed for professional production and install, Mackie AXIS is an integrated 32-channel digital mixing system that delivers amazing workflow through unmatched speed, visibility and customization.

Get READY

TO WORK SMARTER

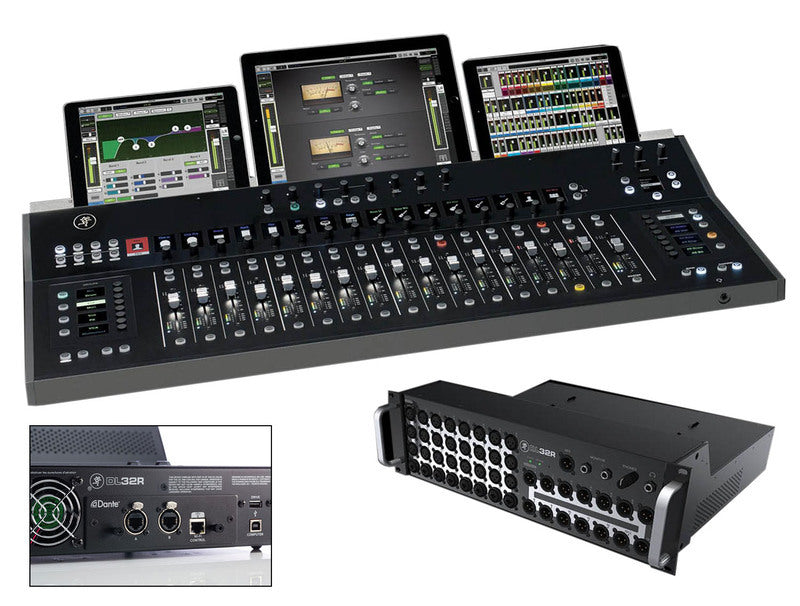

The Mackie AXIS Digital Mixing System delivers an ultra-fast workflow through unmatched visual feedback and customization for professional production and system integration. With full Dante interoperability, the modular AXIS system combines the power of the 32-channel DL32R™ digital mixer and innovative DC16™ control surface to deliver a forward-thinking, modular digital mixing solution with more features per price than any other digital mixer available.

Features

AXIS is a flexible, modular digital mixing system with unmatched speed, visibility and customization.

FAST

SPEED

AXIS delivers a workflow that is built around speed. Built around the innovative workflow of Master Fader, DC16 control surface provides instant access to everything. Every control and every channel is instantly accessible with just the push of a button. Adjust your selected channel's key controls or dive in to the deepest parameter. Navigate like never before with view groups and a mix selector that provide faster navigation compared to traditional "banking" approaches.

SCREENS

VISIBILITY

AXIS is focused on incredible visual feedback at all levels. Large, high-resolution channel screens let you see it all at a glance, improving workflow unlike any other console in this category. DC16 uses full-color, backlit TFT screens with variable brightness control to deliver more critical channel information, more functional differentiation and large, extremely legible fonts sizes and icons. Add in the immense screen, touch-sensitive screen space of up to three iPads and it's clear that only AXIS can provide this level of visual feedback to improve your workflow.

FLEXIBLE

CUSTOMIZATION

All applications (and users) are different. System integrators and production companies need ultimate flexibilty to create the right workflow for their applications. With AXIS, the level of customization allows you to create the perfect mix environment for any install or production. View only the channels you want to see. Choose which controls get immediate access. Limit controls for volunteer engineers. Create the ideal workspace for the application with AXIS.

32-Channel digital mixing system

Flexible modular system with unmatched speed, visibility and customization. Intelligent surface to wireless mixing via SmartBridge. Flexible 32x32 recording/playback.Complete Dante integration

Mackie DC16 Axis Digital Mixing Control Surface Specs

Mixer
Number of Analog Input Channels 16
Signal Processing
Gain/Trim Range Talkback:
0 dB to 60 dB
Digital Audio
Sample Rates 48 kHz
Bit Depth AD/DA Conversion:
24-Bit
Performance
dBFS Reference Level +22 dBu = 0 dBFS
Frequency Response 20 Hz to 20 kHz -1 dB
Max Input Level Stereo Input:
+16 dBu
Talkback Input:
+21 dBu
Output Level Headphone Output:
+19.5 dBu (Max)
Monitor Output:
+21 dBu (Max)
I/O Impedance 1/8" / 3.5 mm Input:
10 kilohms
Monitor Output:
240 ohms (Balanced)
120 ohms (Unbalanced)
Talkback Input:
3 kilohms
Connectivity
Analog Inputs 1 x XLR Balanced Talkback Input
1 x 1/8" / 3.5 mm TRS Unbalanced Input
Analog Outputs 1 x 1/4" TRS Headphone Output
2 x 1/4" TRS Balanced Monitor Output
Digital I/O 1 x RJ45 (1 Gb/s)
2 x etherCON Dante (1 Gb/s)
USB 1 x USB Type-A (Audio Playback, Control, Device Charging)
2 x USB Type-A (Device Charging)
Compatibility
OS Compatibility iOS 8.0 or Later
Mobile Device Compatibility iPad 4th Gen. or Later
iPad Air 1st Gen. or Later
iPad Mini 1st Gen. or Later
iPad Pro 1st Gen., 2nd Gen.
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 8.5 A
AC Power Connector IEC
DC Input Power 12 VDC
Power Consumption 102 W
Physical
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 3.3 x 36.8 x 17.6" / 84 x 935 x 447 mm
Weight 38 lb / 17 kg
Packaging Info
Package Weight 56.5 lb
Box Dimensions (LxWxH) 41 x 22 x 9.5"

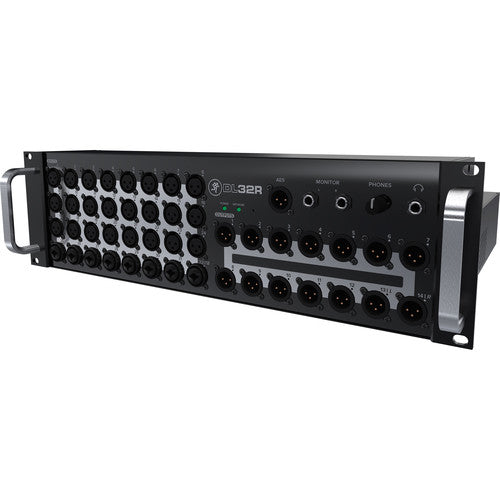

Mackie DL32R 32-Channel Wireless Digital Live Sound Mixer Specs

Mixer
Number of Analog Input Channels 36
Number of Analog Output Channels 12
Max I/O Capacity 32 x Input / 12 x Output
Number of Mic Preamps 32
Faders None
Mix Routing 14 x Aux Send
6 x Matrix
6 x Subgroup
Groups 6 x VCA Group
6 x Mute Group
Signal Processing
Gain/Trim Range Mic:
0 dB to 60 dB (in 3 dB Steps)
Line:
-20 dB to 40 dB (in 3 dB Steps)
Dynamic Processing Input Channels:
Compressor, Gate
Buses, Master:
Compressor, Limiter
EQ FX Returns:
4-Band Parametric
Input Channels:
4-Band Parametric
Output Buses:
4-Band Parametric
31-Band Graphic
Graphic EQ 31-Band
Filters High-Pass
Outputs:
High-Pass
Low-Pass
Internal Effects 2 x Reverb
1 x Delay
Audio Delay Yes
Digital Audio
Sample Rates 48 kHz
AES3 Output:
48 kHz
Multitrack Record:
48 kHz
Audio Streaming:
48 kHz
Bit Depth AD/DA Conversion:
24-Bit
AES3 Output:
24-Bit
Record:
16 / 24-Bit
Audio Streaming:
16 / 24-Bit
Latency 1.5 ms (Analog Input to Analog Output)
Performance
dBFS Reference Level +22 dBu = 0 dBFS
Frequency Response 20 Hz to 20 kHz -1 dB
Max Input Level XLR Input:
+21 dBu
1/4" Input:
+30 dBu
Output Level Headphone Output:
+18 dBu (Max)
Output:
+21 dBu (Max)
Analog Dynamic Range Input to Output:
109 dBA at Unity Gain
Output:
111 dBA
I/O Impedance AES3 Output:
110 Ohms
XLR Mic Input:
3 Kilohms
1/4" Input:
30 Kilohms
XLR Output:
600 Ohms
Monitor Output:
240 Ohms (Balanced)
120 Ohms (Unbalanced)
Crosstalk Adjacent Inputs:
Adjacent Outputs:
EIN -128 dBu (150-Ohm Input)
Noise Floor -90 dBu (A-Weighted)
SNR 92 dBA at Unity Gain (+4 dBu Reference)
THD Mic Input to Main Output:
Connectivity
Analog Inputs 24 x XLR Balanced Input
8 x Combo XLR-1/4" TRS Balanced Input
Analog Outputs 14 x XLR Balanced Output
2 x 1/4" TRS Balanced Output (1 Stereo Pair)
1 x 1/4" TRS Headphone Output
Phantom Power +48 V
Digital I/O 1 x RJ45 (Wi-Fi Router, 100 Mb/s)
1 x XLR AES3 Output
MIDI I/O None
USB 1 x USB Type-A (USB 2.0, External Memory)
1 x USB Type-B (USB 2.0, Host Connection)
Wireless Connectivity None
External Display Connection None
Recording
Max Multitrack Recording 24 Tracks
Media Support HDD
File Format Support WAV
File System Support HDD: FAT32
Compatibility
OS Compatibility Windows 7
Windows 8
macOS 10.8.4
macOS 10.9
iOS 7.1 or Later
Mobile Device Compatibility iPad 3rd Gen., 4th Gen., 2
iPad Mini with Retina
iPad Air
iPhone
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
AC Power Connector IEC
Power Consumption 100 W (Maximum)
Physical
Rackmount Size 3RU
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 5.4 x 19 x 17.5" / 138 x 483 x 443 mm
Weight 18 lb / 8.2 kg
Packaging Info
Package Weight 23.5 lb
Box Dimensions (LxWxH) 21.6 x 21.5 x 9.3"

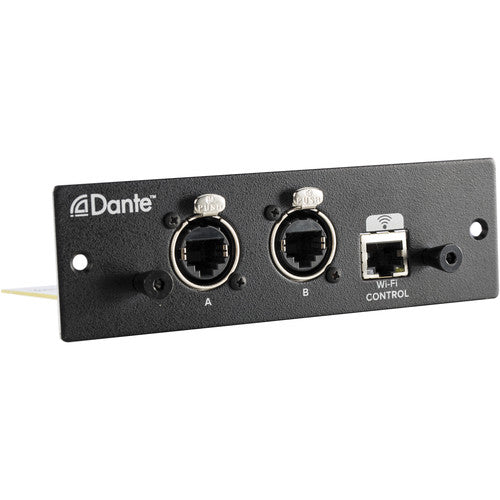

Mackie DL Dante Expansion Card for DL32R Mixer Specs

Physical
Connectors 2 x Ethercon Gigabit Ethernet Dante ports
1 x RJ45, Gigabit Ethernet Wi-Fi control port
Channels 32 receive / 32 transmit
Resolution 24-bit
Sampling Rate 48 kHz
Configuration Via Dante controller
Dimensions (H x W x D) 1.7 x 5.8 x 4.8" / 44 x 147 x 122 mm
Weight 1.0 lb / 0.5 kg
Packaging Info
Package Weight 0.75 lb
Box Dimensions (LxWxH) 7.35 x 6 x 2.85"
