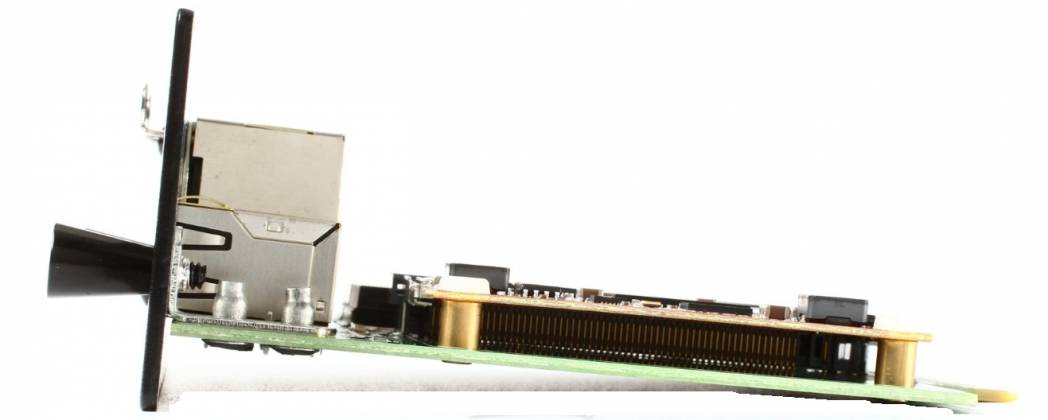

Mackie DL Dante Expansion Card for DL32R Digital Mixer

DL Dante Expansion Card

Optional for DL32R

• 32x32 48 kHz digital audio interface connecting the Mackie DL32R to a Dante network using Cat5e
• Route any signal to the Dante network from the DL32R using Master Fader control software
• Dual etherCON ports for Dante daisy-chaining or redundant Dante mode
• Dedicated Wi-Fi control port eliminates need for Ethernet switch in many applications
• Automatic device discovery and custom channel naming with easy one click routing using Dante Controller software for Mac and PC
• Extremely stable, glitch-free low-latency design
• Includes Dante Virtual Soundcard for recording and playback of up to 64x64 channels via Mac or PC
• Use simultaneously with DL32R USB I/O for total routing and recording control
• Simple two-screw user installation

Tech Specs

• Compatibility: Mack Axis DL32R Dante
• Number of Channels: 32 x 32
• Inputs: 2 x EtherCON ports, 1 x RJ45 Wi-Fi port
• Outputs: 2 x EtherCON
