Mackie DL32R

Product Description
$2,099.99
Maximum quantity available reached.

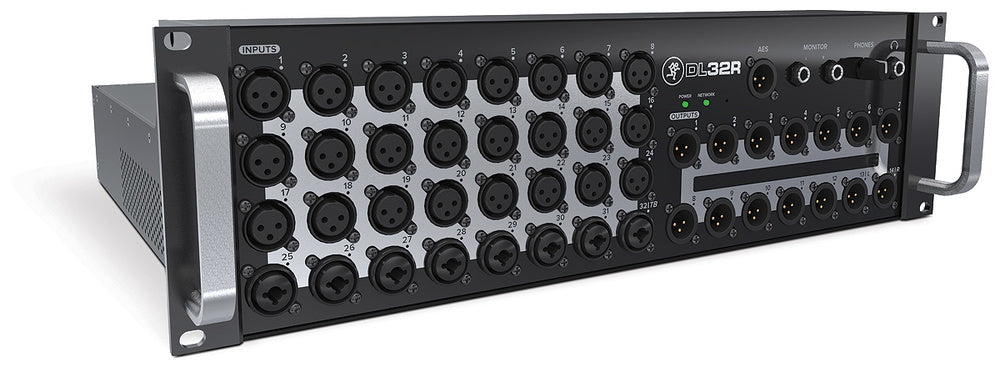

DL32R Wireless Digital Mixer

CONTROL
EVERYTHING FROM ANYWHERE

The Mackie DL32R delivers 32-channels of powerful digital mixing controlled wirelessly from the extremely intuitive, multiplatform Master Fader control app. With total wireless control over everything, including fully-loaded DSP and direct-to-disk multi-track recording/playback, DL32R frees you to get in the mix like never before.

REVOLUTIONARY

POWER AND CONTROL

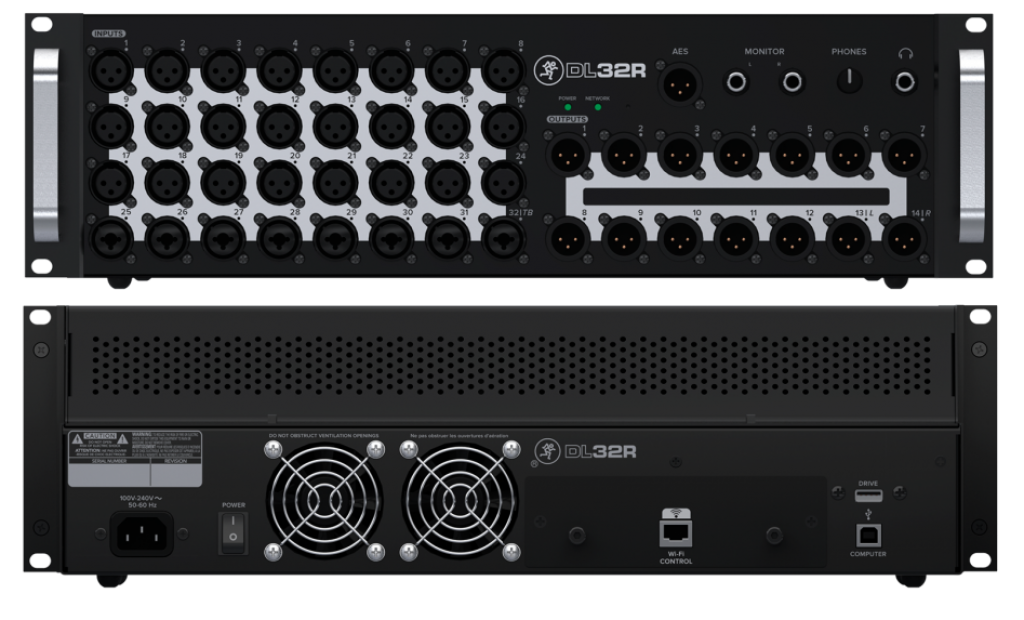

The DL32R features flexible, professional I/O in an incredibly compact design. So you can place it anywhere and it's "Built-Like-A-Tank", so it'll stand up to life on the road. Recallable Onyx+ mic pres provide unmatched clarity and control. DL32R has outputs galore with 14 assignable XLR outputs, stereo AES, phones out, and 1/4” monitor output. The optional DL Dante Expansion Card gives you 32x32 channels of networked audio compatible with hundreds of Dante equipped devices.

master fader

The Heart of Your Mix

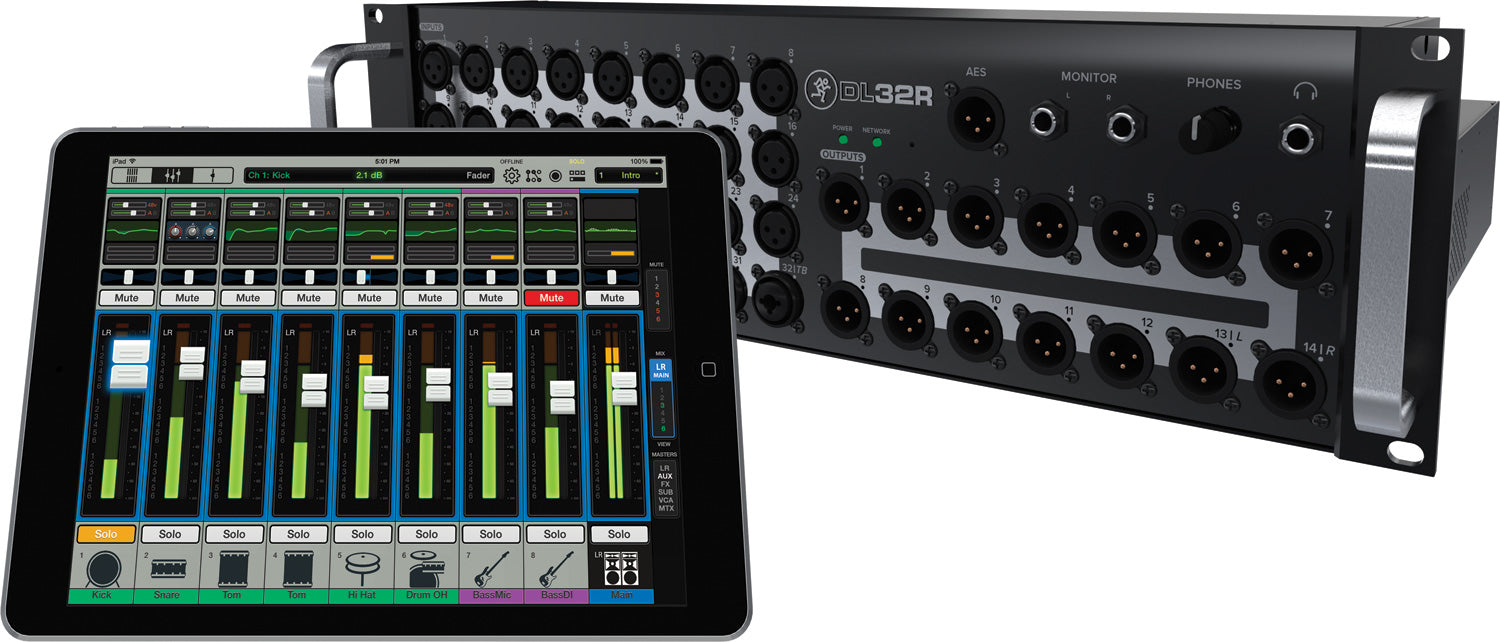

Master Fader is the main user interface for your DL Series mixer. Rather than knobs, faders and buttons on a large piece of hardware, you get powerful mixing tools on your tablet, Mac, or PC and at up to 20 different devices simultaneously. The intuitive design of the Master Fader app makes managing your mix, large or small, easy and efficient. Organize your channels with view and mute groups, utilize subgroups with full bus processing, control levels of channel groups simply with VCAs, and even lock out devices from specific capabilities within the app. And when you get a mix you like, you can save it all into a snapshot.

 Powerful Processing

From EQ to compression, every bit of signal processing is implemented with the highest quality possible maintaining the fidelity of each source. Every channel and output bus gets it's own dedicated processing.

The 4-band parametric EQ on each channel and output features a dedicated high-pass filter, modern and vintage modes, and built-in RTA for maximum versatility and detailed analysis of each source. The clear UI makes it easy to make adjustments, view settings, and choose presets.

Each FX processor features tons of studio-quality reverbs and delays plus effects like chorus, tremolo, flanger, and sweep filter. Fine tune each effect with advanced parameters and EQ.



Total Freedom

Complete wireless control via iOS, Android, macOS, and Windows devices means you can mix from anywhere in the venue on up to 20 devices. Wireless control also means you can put the mixer itself where it makes the most sense for application.

DL32R

32-Channel Wireless Digital Mixer
  • 32 Onyx+™ recallable mic pres with wireless control
  • 14 fully-assignable XLR outputs
  • Stereo AES digital output
  • Total recall of all settings
  • 3U rackmount design ready for road or install
  • Card slot for Dante expansion card*

WIRELESS MIXING*

  • Complete control from your iOS, Android™, macOS®, and Windows® devices
  • No set FOH position – mix from anywhere
  • Personal monitor mixing via personal device
  • Supports up to 20 separate devices at once
  • Multiple engineers can work from a single mixer
  • Ditch the snake – place the mixer anywhere

MULTI-TRACK RECORDING & PLAYBACK

  • 32x32 USB 2.0 audio interface for Mac or PC
  • 32x32 recording/playback direct to USB 2.0 hard drive
  • Wireless control over all direct-to-disk recording/playback functions
  • Record the show for later mixdown
  • Play back intermission music and backing tracks
  • Perform a virtual soundcheck
  • Amazing recording interface for the studio
  • Utilize Mac or PC audio plug-ins in a live environment

FULLY-LOADED DSP

  • 36 input channels with 4-band PEQ + HPF, gate, compression and RTA/Spectrograph
    • 32 stereo-linkable input channels
    • 4 stereo-linkable return channels*
  • 28 output busses with 4-band PEQ + HPF/LPF, 31-band GEQ, comp/limiter, alignment delay and RTA/Spectrograph
    • 14 stereo-linkable aux sends
    • 6 stereo-linkable matrix busses
    • 6 stereo-linkable subgroups*
    • Main L/R busses
  • 6 VCAs and 6 mute groups
  • 4 stereo FX processors with dedicated sends and returns
  • Full I/O routing with A/B sources per channel
  • Assignable oscillator including pink/white noise and sine waves
  • Modern and Vintage options per processor

MASTER FADER CONTROL APP

  • Intuitive and easy to master
  • Fast navigation with view groups and overview
  • Quick setup with tons of factory and user-definable presets
  • Access Limiting allows flexible customization of user interface and prevents unwanted adjustments from other users
  • Export presets, shows and complete system backups
  • Complete offline operation
  • Available on iOS, Android, macOS, and Windows

RECORD AND PRODUCE LIKE A PRO

  • Pro Tools® | First and Waveform™ OEM professional software and plugin packages included
  • The Musician Collection for ProTools | First includes 23 plugins like BBD Delay, Eleven Lite, 304E EQ, and 304C Compressor
  • The DAW Essentials™ Bundle for Waveform OEM includes 16 powerful plugins like Equaliser, Compressor, Reverber8, and Limiter

DL32R is compatible with iOS 11 or later, Android OS 6 or later, macOS 10.12 or later, and Windows 10 or later when using the latest Master Fader 5.x software

* Dante expansion card sold separately. Wi-Fi router and control device required. Wi-Fi router and control device not included. Return channels and subgroups feature PEQ and compression.

Tech Specs

  • Type: Digital
  • Channels: 32
  • Inputs - Mic Preamps: 24 x XLR, 8 x XLR/TRS Combo
  • Phantom Power: 32 x Channels
  • Outputs - Digital: 1 x AES/EBU (XLR)
  • Outputs - Main: 14 x XLR (Assignable)
  • Outputs - Other: 2 x TRS (Monitor)
  • Aux Sends: 14 x Stereo-linkable
  • Busses/Groups: 28 x Bus
  • Data I/O: 1 x Ethernet (WiFi Router Not Included)
  • USB: 1 x Type B, 1 x Type A
  • Computer Connectivity: USB (32 x 32)
  • I/O Expansion Slots: 1 x Slot (Dante Expansion Card)
  • Headphones: 1 x 1/4"
  • Faders: Virtual
  • EQ Bands: 4-band Parametric, 31-band Graphic
  • Effects: Yes
  • Software: Master Fader 5 Control App (iOS 11 or later, Android 6.0 or later, macOS 10.2, Windows 10)
  • Rackmountable: Yes
  • Height: 5.4"
  • Depth: 17.5"
  • Width: 19"
  • Weight: 18 lbs.
