Mackie MDB-1P Passive Direct Box
Mackie MDB-1P Passive Direct Box
Mackie MDB-1P Passive Direct Box
Mackie MDB-1P Passive Direct Box

Mackie MDB-1P Passive Direct Box

Price
$59.99
Taxes and shipping calculated at checkout

Stock Notification

Get notified when this product is available again

Frequently Bought Together

Have a question?

MDB Series Direct Boxes

Ready
For Anything

From acoustic guitars to laptops, always sound your best with MDB Series Direct Boxes. Available in four different models, the MDB Series will give you the peace of mind that your sound will faithfully get to your audience the way that you hear it on stage.

Premium

Without the price tag

Direct boxes are an essential tool for any stage or studio. They make it easy to get clean, low-noise audio to a mixer no matter what instrument you are using. Available in four versatile models, our ultra-affordable DI's offer the Mackie sound quality that you expect with Built-Like-A-Tank™ construction for maximum reliability. From acoustic guitars to laptops, be ready for anything with MDB Series direct boxes.

Features​​​

Expand your versatility


versatility

The Perfect Match

With four models to choose from, you can get the perfect match for your instruments. Acoustic guitars and keyboards are right at home with the MDB-1P and MDB-2P.

High output instruments will appreciate the extra headroom in the MDB-1A.​






rugged

Built-Like-A-Tank™

From the inside out, MDB Series direct boxes are built to last. Thick steel chassis, impact resistant corners, and long-wearing jacks will keep these in your bag for years to come.




Quality

Premium Analog Circuitry

MDB Series direct boxes offer excellent noise performance and transparency. Whether you are in the studio or performing on stage, your instruments will always sound as good as they do at the source.




connect

Get the best sound from your laptop

The MDB-USB is the ultimate way to get pristine digital audio from your laptop directly to a mixer or front-of-house in a venue.

Mackie MDB-1P Overview

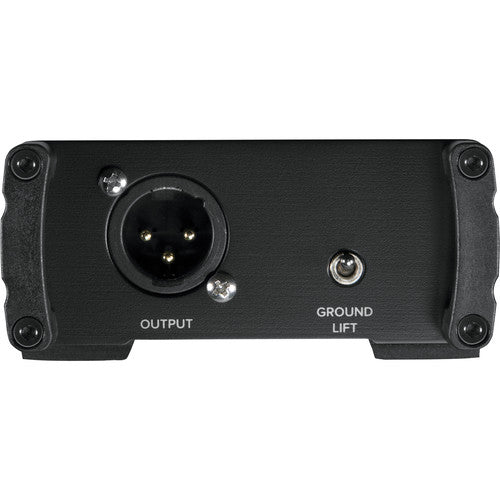

The Mackie MDB-1P is a passive direct box designed to connect a single instrument such as a guitar, bass, or keyboard to a microphone preamp for musicians and audio engineers in recording sessions, houses of worship, and live stage applications. It converts a high-impedance, instrument-level signal via its 1/4" TS unbalanced input to a low-impedance, mic-level output via its balanced XLR 3-pin jack. A 1/4" thru jack allows simultaneous connection to an amplifier or pedalboard.

A -15 dB pad reduces the input level to prevent distortion when using a high-gain source, and the ground-lift switch inhibits hum caused by ground loops. Due to its passive design, the MDB-1P requires no batteries or power supply. A sturdy steel chassis enables confident use in the studio or on the road.

Connect an instrument such as a guitar, bass, or keyboard to a microphone preamp
Converts a high-impedance, unbalanced 1/4" input to a low-impedance, balanced XLR mic-level output
1/4" thru jack for routing to an amplifier
-15 dB pad prevents overloading when accepting signal from a loud source
Ground-lift switch minimizes hum
Passive design requires no batteries or power supply

Mackie MDB-1P Specs

Type Passive
Input Connections 1 x 1/4" TS unbalanced
Output Connectors 1 x 1/4" TS unbalanced
1 x XLR 3-pin balanced
Input Impedance 140 kOhms unbalanced
Output Impedance 400 Ohms unbalanced
Impedance Ratio 350:1
Pad -15 dB
High-Pass Filter None
Controls Pad
Ground-lift switch
Frequency Response 20 Hz to 20 kHz (±0.2 dB)
Signal to Noise Ratio Not specified by manufacturer
Dynamic Range 128 dB
Total Harmonic Distortion 0.002% from 1 kHz
Power Requirement None
Current N/A
Construction Material Heavy-gauge steel chassis
Dimensions (H x W x D) 1.5 x 3.4 x 5.8" / 38 x 86 x 147 mm
Weight 0.8 lb / 0.4 kg
Packaging Info
Package Weight 1.01 lb
Box Dimensions (LxWxH) 6.95 x 5.7 x 2.85"
