Mix Series Compact Mixers

QUALITY
For Straightforward Applications

Mackie Mix Compact Mixers deliver the quality you expect from the world leader in compact mixer design. The professional and affordable Mix Series mixers feature high quality components, a rugged metal chassis and features designed for a variety of applications. With Mackie preamps and proven high-headroom, low-noise design, Mix delivers great sound from any source.

Wouldn't you rather

mix on a mackie?

Mackie has more than 25 years experience designing rock solid compact mixers like VLZ and ProFX. Mix Series Compact Mixers deliver on the proven performance, sound quality and rugged reliability Mackie mixers are known for at the most accessible price ever. Don't settle because of budget and get the performance you deserve with Mackie Mix Series.

Mix5 • Mix8 • Mix12FX

Mix Series Compact Mixers are reliably rugged, with the proven quality you expect from the world leader in compact mixer design.

With proven high-headroom, low-noise design preamps, Mix Series mixers sound great and maintain audio quality from any source. Plus, with their rugged metal chassis and high-quality components throughout, they are a solid investment in reliability.

An amazing value, Mix delivers a straightforward feature set that’s easy to use and the sound quality you need in rugged designs built to last.

Features:

5, 8 and 12-channel compact mixers with proven high-headroom, low-noise performance

Mic/line inputs with studio-level audio quality Multi-band EQ with clean, precise tone shaping• Pan, level and overload indication• Phantom power for studio condenser mics • Low cut filter (75 Hz) [Mix12FX]

Multiple stereo 1/4" line inputs +4/–10 dB and balance operation [Mix12FX]

One aux send with stereo 1/4" returns [Mix8]

12 great-sounding integrated effects including reverbs, choruses and delays [Mix12FX]

Dedicated stereo RCA inputs/outputs for playback or recording

Main L/R outputs

Headphone output

Stereo control room outputs [Mix8 / Mix12FX]

Rugged, reliable design built to last

Extremely compact and portableApplications:Live sound mixing, rehearsal spaces, gymnasiums, banquet halls, conference rooms, boardrooms, studio and field recording, multimedia applications and many, many more.

Key Features
  • 1 Mic/Line Inputs with 2-Band EQ
  • 2 Stereo 1/4" Line Inputs
  • Stereo RCA Tape Inputs & Outputs
  • Pan, Level and Overload Indication

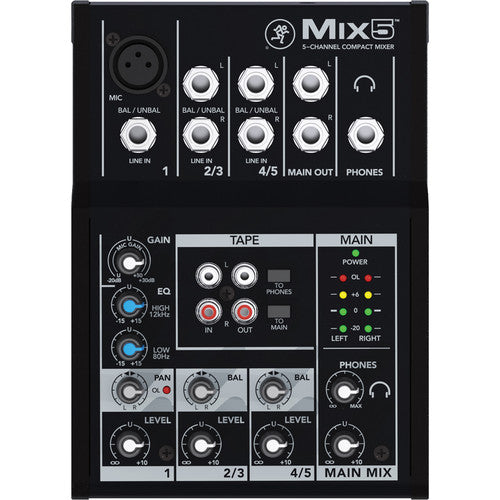

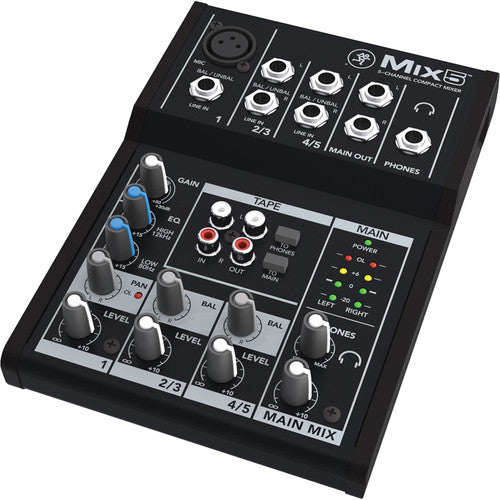

The Mackie Mix5 is a 5-channel compact mixer that features high-quality components, a rugged metal chassis, and is designed for a variety of sound reinforcement applications. The mixer features one mic/line input, two stereo 1/4" line inputs, and is capable of accommodating dynamic and condenser microphones, keyboards, DJ setups, portable music players, and more.

The mic/line input is equipped with XLR and 1/4" connectors, phantom power, a 2-band EQ, pan, level control and an LED overload indicator. Each of the two stereo 1/4" line inputs features a 3-band EQ, balance control, level control, and an LED overload indicator.

Mackie MIX5 Specs

Noise (20 Hz – 20 kHz bandwidth, , 150 ohms source impedance, EIN)



All outputs, master levels and channel levels off –100 dBu

All outputs, master levels unity, all channel levels off –90 dBu

All outputs, master levels unity, 1 channel level unity –85 dBu





THD+N (20 Hz – 30 kHz bandwidth)



Mic input to main output









Attenuation and Crosstalk (20 Hz – 20 kHz bandwidth)



Inputs to outputs @1 kHz  (-85 dB)

Main mix off @1 kHz (-75 dB)





Frequency Response Mic Input to Any Output (Gain at Unity): +0, –1 dB, 20 Hz to 30 kHz









Equivalent Input Noise -125 dBu, (mic in to insert send out, max gain)
Common Mode Rejection Ratio 1 kHz better than –70 dB,  (mic in to insert send out, max gain)
Impedance Mic In: 2 kOhms



All Other Inputs: 10 kOhms or greater

Tape Out : 1 kOhms

Phones: 22 ohms

All Other Outputs: 120 ohms unbalanced,  240 ohms balanced





Maximum Level Mic Inputs (XLR):  +19 dBu



Aux Return In:  +16 dBu [Mix 8]

All Other Inputs:  +21 dBu

All Outputs: +21 dBu





Equalization High Shelving:  ±15 dB @ 12 kHz



Low Shelving:  ±15 dB @ 80 Hz

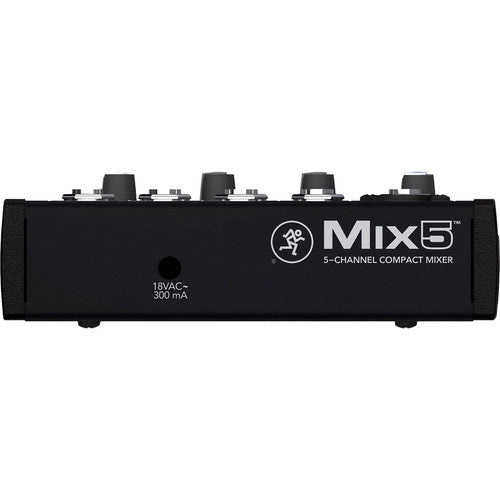

Power Requirements Power Connection:  2-pin DC connector [US], 3-pin DC connector [EU]



Input: 120 VAC, 60 Hz [US], 230 VAC, 50/60 Hz [EU]

Output: 18 VAC, 600 mA





Dimensions 1.7 x  5.5 x 7.7"  (43 x  140 x 196 mm)









Weight 1.4 lb (0.6 kg)
Packaging Info
Package Weight 2.07 lb
Box Dimensions (LxWxH) 11.45 x 6.55 x 3.2"
