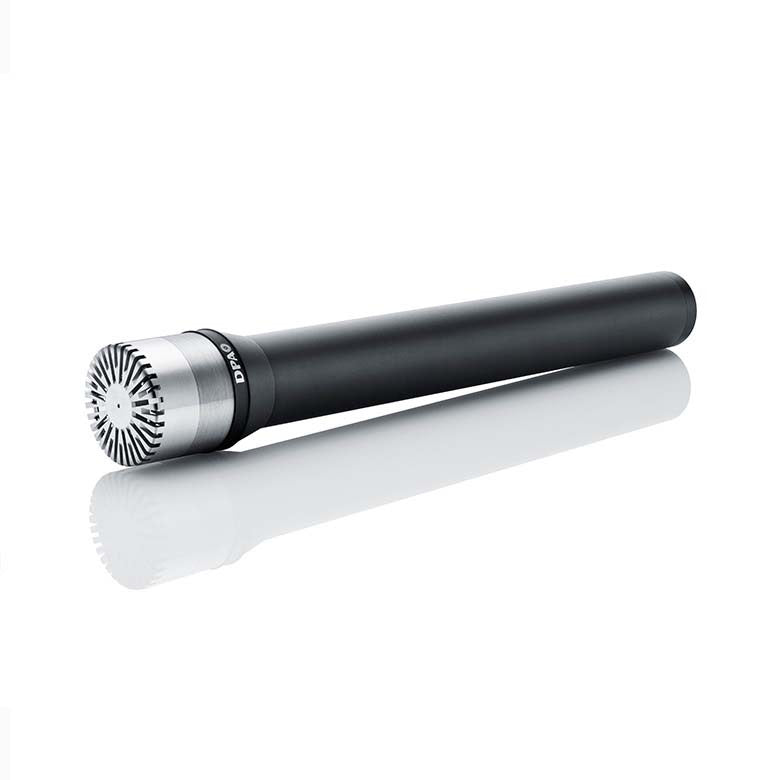

 This omnidirectional condense microphone is designed to work in a standard 48 V phantom power environment. It features the same MMC4041 Large Diaphragm Capsule as in the high-voltage alternative, the d:dicate™ 4041-S, so the mic offers the same superior sound quality, with very slight changes in the specifications. It is a part of the d:dicate™ Recording Microphones Series.
The diaphragm and housing are both made from stainless steel. This gives the capsule a unique immunity against ambient temperature variations. The precision-made back plate is placed in a quartz insulator for maximum electrical stability. This gives the MMC4041 Large Diaphragm Capsule a unique sensitivity of up to 90 mV/Pa.

The 4041-SP has a frequency response from 10 Hz to 20 kHz with a 4-6 dB soft boost around 8 kHz. Furthermore, the MMC4041 Large Diaphragm Capsule has extremely low self-noise of 7 dB(A) with the MMP4000-S. It also has enhanced SPL handling capability of up to 144 dB SPL before clipping occurs.

The MMC4041 Large Diaphragm Microphone Capsule can be unscrewed from the MMP4000-SP preamplifier, which allows you to exchange the preamplifier.


The product offers the following features
Handles high sound pressure levels with no distortion
Natural and transparent sound

d:dicate™ Recording Microphones 4041-SP LARGE DIAPHRAGM MICROPHONE, P48

Directional patternOmnidirectional
Principle of operationPressure
Cartridge typeCondenser w. stainless steel diaphragm
Frequency range20 Hz - 20 kHz
Frequency range, ±2 dB20 Hz - 20 kHz with 4 - 6 dB soft boost at 8 kHz
Sensitivity, nominal, ±2 dB at 250 Hz70 mV/Pa; -23 dB re. 1 V/Pa
Equivalent noise level, A-weightedMax. 8 dB(A) re. 20 µPa
Equivalent noise level, ITU-R BS.468-4Max. 20 dB
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)86 dB(A)
Total harmonic distortion (THD)< 0.5% THD up to 120 dB SPL peak, < 1% THD up to 126 dB SPL peak
Dynamic rangeTyp. 118 dB
Max. SPL, peak before clipping134 dB
Output impedance< 200 Ω
Cable drive capabilityUp to 100 m (328 ft)
Power supply (for full performance)Via external power supply
Current consumption2.20 mA
Connector3-pin XLR-M (Standard P48)
Weight190 g (6.7 oz)
Capsule diameter24 mm (1 in)
Microphone length170 mm (6.7 in)
Temperature range-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)Up to 90%
