Adam Audio A5X-Single

Product Description

$389.00

Maximum quantity available reached.

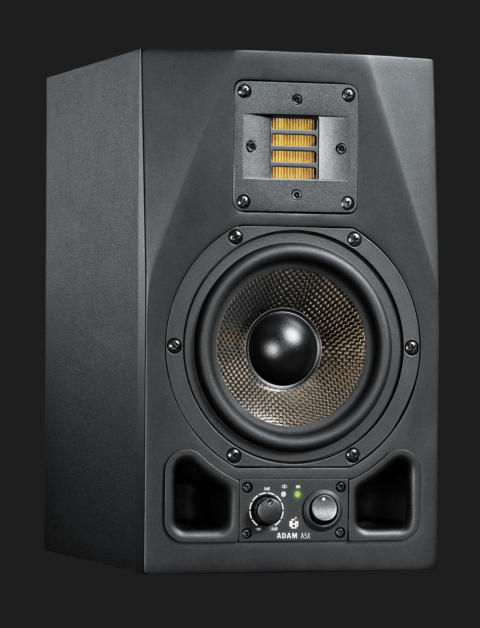

Adam Audio ADAM A5X

The A5X is popular among professionals working in television studios and remote broadcast vans. The A5X can also be found in numerous home/project studios around the world. Its open, powerful sound makes the A5X a trustworthy and useful tool for multimedia applications as well.

Like all models of the AX-Series, the A5X is equipped with ADAM‘s proprietary X-ART tweeter. One 5.5“ bass/midrange woofer works below 2.5kHz and is driven by a 1.5“ voice coil and a powerful 50 Watt PWM amplifier. Its acoustic qualities give you a clear picture of the smallest changes in your mix and the sonic results. Despite all that it does, the A5X is not fatiguing in long studio sessions.

Stereolink

The ‘Stereolink’ is a useful feature for desktop DAWs. Two additional input and output jacks for the second stereo channel allow you to control the volume for both monitors using the volume control of only one loudspeaker. The volume control of the other monitor only affects its own volume in order to easily compensate for differences in listening distance. Unlike the typical master-slave configuration, each A5X monitor is fully equipped and can function either as a master or a slave unit.

German Handmade Precision X-ART Tweeter
5.5“ Woofer (Carbon/Rohacell/Glass Fiber)
Amp. Power RMS / Music: 100 W / 150 W
Frequency Response: 50 Hz - 50 kHz
Max. SPL per pair at 1 m: ≥110 dB

Features & Benefits

Technical Data

Woofer
Number 1
Basket Ø 5.5" (145 mm)
Voice Coil Ø 1.5" (32 mm)
Cone Material Carbon/Rohacell/Glass Fiber
Tweeter
Number 1
Type X-ART
Diaphragm Area 4 inch² (2420 mm²)
Equiv. Diaphragm Ø 2" (56 mm)
Velocity Transform Ratio 4:1
Diaphragm Weight 0.17 g
Built-in Amplifiers
Woofer 1
Type PWM
Amp. Power RMS / Music 50 W / 75 W
Tweeter 1
Type A/B
Amp. Power RMS / Music 50 W / 75 W
Control Panel
Input Sensitivity -∞ to +14 dB
High Shelf EQ > 5 kHz ±6 dB
Low Shelf EQ < 300 Hz ±6 dB
Tweeter Gain ±4 dB
Input Connectors
Analog XLR / RCA
General Data
Frequency Response 50 Hz - 50 kHz
THD 90 dB / 1 m > 100 Hz ≤0.6 %
Max. SPL with sine wave acoustic 100 Hz to 3 kHz at 1 m ≥102 dB
Max. SPL per pair at 1 m ≥110 dB
Crossover Frequencies 2500 Hz
Input Impedance 30 kOhm
Panel Front
Stereolink Yes
Weight 14.6 lb (6,6 kg)
Magnetically Shielded No
Height x Width x Depth 11" (280 mm) x 6.5" (170 mm) x 8.5" (220 mm)
Warranty 5 years (2 years warranty plus 3 years optional with product registration)
Delivery Contents Cinch-cable, power cord, manual

Sku: A5X

Vendor: Adam Audio
