Adam Audio F5

Adam Audio ADAM F5

Professional Monitoring with the F5 speaker.

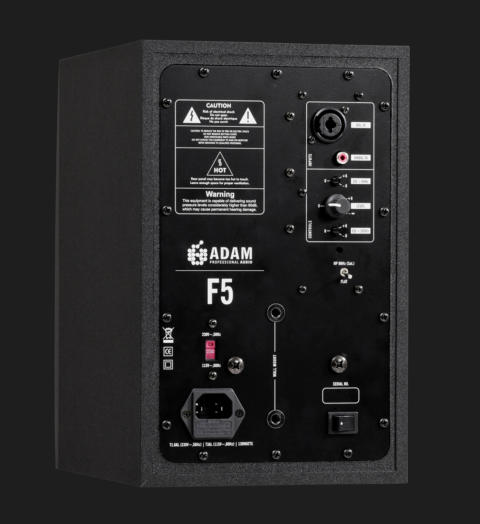

The F5 offers all the features you want to see in a professional studio monitor: a broad frequency range (52Hz – 50kHz) plus comprehensive control. The monitor is equipped with a Room Equalizer for high (> 5kHz) and low (< 300 Hz) frequencies and an overall volume control on the rear panel. A high pass filter (to be used in conjunction with a subwoofer) and XLR/TRS/RCA inputs complete the professional functions of the F5.

The F5 is driven by two A/B class amplifiers with 50W RMS / 70W Music. This helps the monitor to provide a vibrant, deep bass and a maximum SPL of 106dB per pair. The reproduction of dynamically challenging tracks should not be a problem with this powerhouse.

Features & Benefits

• X-ART tweeter, handmade in Berlin
• Allows longer operation with fewer signs of fatigue
• Their breakup is prevented by the folded diaphragms, distortions are effectively reduced to a minimum
•  Advanced dynamic range due to acoustically effective diaphragm surface that is 2.5 times bigger (compared to a classic tweeter according to the piston principle)
• The air velocity ratio of 4:1 during the sound generation by folded X-ART membrane
• Direct, fast response in the high-range even with complex transients
• Lightweight glass fiber/paper sandwich construction of the woofers
• Excellent transient response even at high sound levels without breakup of the diaphragm
• Vertical 2-way system with 5” woofer
• High resolution of the stereo image
• Spacious bass reflex ports on the front
• Bass reproduction with very low compression
• Allows positioning close to walls
• Linear frequency response of 52 Hz to 50 kHz
• Unbiased reproduction in a wide frequency band
• Maximum peak sound pressure level per pair in 1 m ≥106 dB
• Powerful, compression-free sound reproduction even at very high sound levels
• Simple, stepless room acoustic adjustments over 2-band EQ and high pass filter
• Allows optimal adaptation to acoustically difficult listening environments or individual preferences
• Analog inputs over XLR/jack combination sockets and RCA
• Optimized for balanced and unbalanced line signals
• Auto Standby Mode
• Energy saving when not in use
• Acoustically optimized cabinet geometry
• Reduction of unwanted reflections on the cabinets
• Compact cabinet dimensions
• Fits every desktop
• Easily mounted on walls with original ADAM Audio wall mount (optional)
• Space saving positioning at any height
• 2 years warranty
• Full repair service if required

Technical Data

• Woofer
• Number    1
• Basket Ø    5" (127 mm)
• Voice Coil Ø    1" (25 mm)
• Cone Material    Glass fiber/paper
• Tweeter
• Number    1
• Type    X-ART
• Diaphragm Area    3 inch² (1848 mm²)
• Equiv. Diaphragm Ø    1.5" (42 mm)
• Velocity Transform Ratio    4:1
• Built-in Amplifiers
• Woofer    1
• Type    A/B
• Amp. Power RMS / Music    25 W / 35 W
• Tweeter    1
• Type    A/B
• Amp. Power RMS / Music    25 W / 35 W
• Control Panel
• Input Sensitivity    -∞ to +6 dB
• High Shelf EQ > 5 kHz    ±6 dB
• Low Shelf EQ < 300 Hz    ±6 dB
• Input Connectors
• Analog    XLR / RCA / TRS
• General Data
• Frequency Response    52 Hz - 50 kHz
• Max. SPL per pair at 1 m    ≥106 dB
• Crossover Frequencies    2900 Hz
• Weight    15 lb (6,8 kg)
• Magnetically Shielded    No
• Height x Width x Depth    11.5" (290 mm) x 7.5" (185 mm) x 9" (230 mm)
• Warranty    2 years
• Delivery Contents    Power cord, manual
