Adam Audio ADAM S2V

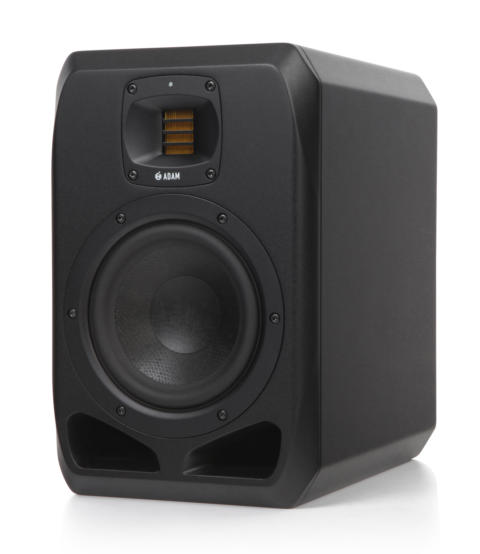

The S2V is a classic two-way nearfield monitor designed for use in small-to-medium-sized control rooms.

The 7-inch bass driver, newly created from the ground up for the S Series, covers frequencies ranging from 35 Hz to 3 kHz and delivers a powerful, distortion-free low-end with a wide dynamic range. The carefully refined S-ART tweeter, handbuilt as ever at the ADAM Audio factory in Berlin, works seamlessly in tandem with the newly developed HPS waveguide, creating absolutely precise imaging within a generously proportioned sweet spot.

The S2V’s compact dimensions belie its impressive power. A 300 W Class D amplifier drives the woofer while a 50 W Class A/B unit handles the S-ART tweeter; the combined output produces SPLs of up to 120dB per pair.

The S Series’ custom-designed DSP optimizes the loudspeaker crossovers to create linear responses for the entire range, as well as providing user equalization and in-room tuning/voicing functions. The DSP also handles the limiter-based high-frequency driver protection, processes the signals from the AES3 digital inputs, and will in time facilitate various expansion options. Software updates can be carried out with ease via the associated USB port, which also allows users to connect computers and control the speakers’ DSP functions via a software front-end.

With its highly accurate frequency response and balanced, razor-sharp imaging, the S2V allows users to pinpoint even the most subtle audio details, making it an ideal choice for use in demanding studio environments.

Features & Benefits

  • S-ART tweeter, handmade in Berlin and manufactured to the tightest tolerances in ADAM Audio’s history
  • Allows longer operation with fewer signs of fatigue
  • Their breakup is prevented by the folded diaphragms, distortions are effectively reduced to a minimum
  • Advanced dynamic range due to acoustically effective diaphragm surface that is 2.5 times bigger (compared to a classic tweeter according to the piston principle)
  • The air velocity ratio of 4:1 during the sound generation by folded S-ART membrane
  • Direct, fast response in the high-range even with complex transients
  • Newly designed HPS waveguide, milled from a solid block of aluminum
  • Makes dispersion more consistent and imaging more stable over a wider area
  • Reduction of early reflections on the surfaces of, e.g. mixing consoles, desks, etc.
  • Custom-built Extended Linear Excursion (ELE) bass drivers
  • Accurate audio reproduction at an extremely high resolution thanks to the precision-designed relationship between its low weight, optimized inner damping and highly rigid HexaCone membrane, in conjunction with a basket which has been developed to eliminate unwanted resonance and distortion
  • Custom-designed Symmetrical Magnet Assembly (SMA)
  •  Allows the voice coil a maximum excursion three times greater than that offered by previous designs, with an extended, symmetrical magnetic field ensuring linear, low-distortion operation
  • Power compression effects are prevented by an intelligent self-cooling system
  • Vertical 2-way system with 7” woofer
  • Very high resolution of the stereo image
  • Spacious bass reflex ports on the front
  • Bass reproduction with very low compression
  • Allows positioning close to walls
  • Highly efficient PWM ICE Power amplifier for the woofer coupled with an A/B amplifier for S-ART tweeter
  • Low-distortion amplification at both low and high volume levels
  • Linear frequency response of 35 Hz to 50 kHz
  • Unbiased reproduction in a wide frequency band
  • Maximum peak sound pressure per pair in 1 m ≥ 120 dB
  • Powerful, compression-free sound reproduction even at very high sound levels
  • Custom DSP engine
  • Perfect crossovers for optimal frequency response and maximum dynamic range
  • EQ options and presets for in-room optimization
  • Limiter-based amp protection, AES3 digital inputs and board connectors for future expansion options, together with a USB connector for software upgrades and computer-based control
  • Analog XLR input
  • Optimized for balanced line signals
  • Acoustically optimized and weightily constructed cabinets
  • Reduction of susceptibility to vibrations and unwanted edge-diffraction effect
  • 2 years warranty with optional extension to 3 years with the registration of the product
  • Full repair service if required for 5 years

 Technical Data

  • Woofer
  • Number    1
  • Basket Ø    7" (178 mm)
  • Voice Coil Ø    1.5" (39 mm)
  • Cone Material    HexaCone
  • Tweeter
  • Number    1
  • Type    S-ART
  • Diaphragm Area    4 inch² (2420 mm²)
  • Equiv. Diaphragm Ø    2" (56 mm)
  • Velocity Transform Ratio    4:1
  • Diaphragm Weight    0.17 g
  • Waveguide    HPS
  • Built-in Amplifiers
  • Number    2
  • Woofer    1
  • Type    PWM
  • Amp. Power RMS    300 W
  • Tweeter    1
  • Type    A/B
  • Amp. Power RMS    50 W
  • Control Options
  • Input Sensitivity    Adjustable
  • Parametric EQs    6
  • Room Compensation High-Shelf EQ    1
  • Room Compensation Low-Shelf EQ    1
  • Preset Memories    5
  • Delay    0 ms to 5 ms
  • Input Connectors
  • Analog    XLR
  • Input Impedance    48 kOhm
  • Max. Input Level    +24 dBu
  • Digital    AES3
  • General Data
  • Panel    Rear
  • Frequency Response    35 Hz - 50 kHz
  • THD > 100 Hz    ≤0.4 %
  • Max. SPL per pair at 1 m    ≥120 dB
  • Crossover Frequencies    3 kHz
  • Max. Power Consumption    230 W
  • Weight    24.2 lb (11.0 kg)
  • Height x Width x Depth    13,6" (346 mm) x 8,7" (222 mm) x 13,3“ (338 mm )
  • Warranty    5 years (2 years warranty plus 3 years optional with product registration)
  • Delivery Contents    Power cord, Manual
