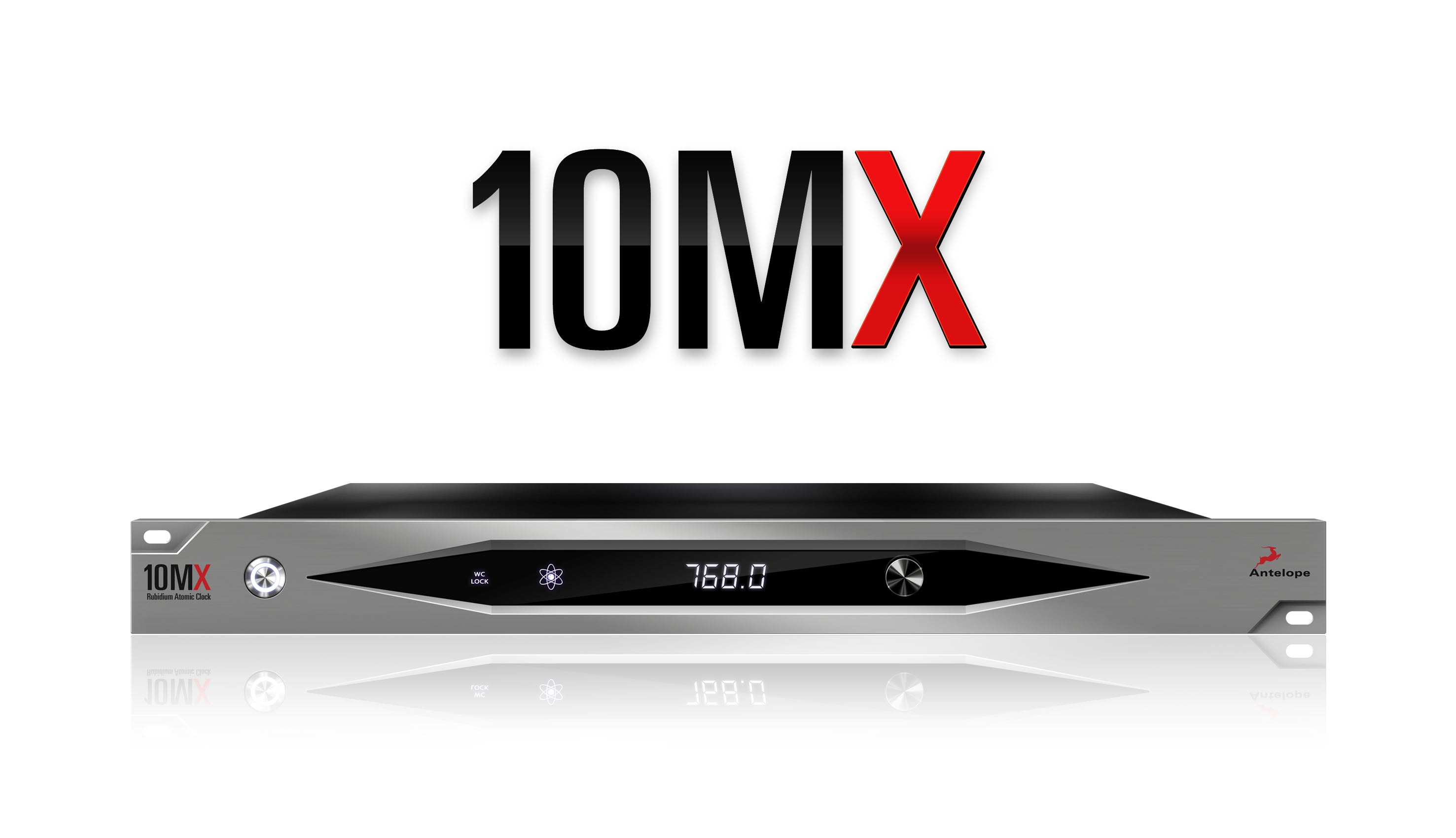

10MX



Rubidium Atomic Clock



10MX is the newest and the premier member of the Isochrone family. It features technologies from two of Antelope’s legendary products. The atomic precision of the 10M and the sophisticated jitter-management algorithm of Trinity are combined in a futuristic, 1U rack space enclosure, providing the world’s most stable and musical clocking.

10MX is a fusion of proven technologies and contemporary industrial design, where no compromises are allowed and both build-quality, and performance-excellence are top priority. The new Rubidium Atomic Clock is an epiphany of more than 20 years’ expertise in the digital audio world, making vividly real the clarity, depth, width and 3-dimensionality distinctive of the analog sound.



4 Word Clocks

The master clock beast: 4 Word Clocks allowing up to 768 kHz



64-Bit Acoustically Focused Clocking

Flawless clocking powered by Antelope Audio’s world-renowned jitter management algorithm

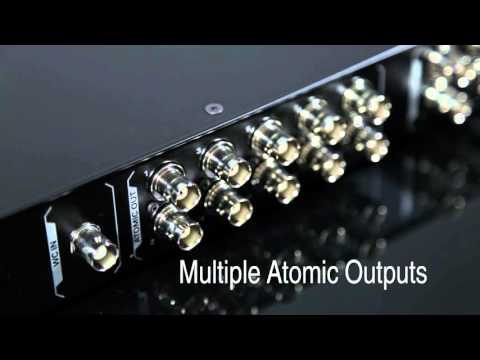

Multiple Atomic Outputs

The 10MX’s multiple atomic outputs allow up to 10 devices to be simultaneously clocked



Additional Outputs

2 x S/PDIF and 2 x AES/EBU master clocking outputs up to 192 kHz



Maximum Control

Intuitive Software Control Panel



Pc/Mac Connection

PC/Mac connection via USB, allowing remote control and firmware upgrades

Atomic Clocking

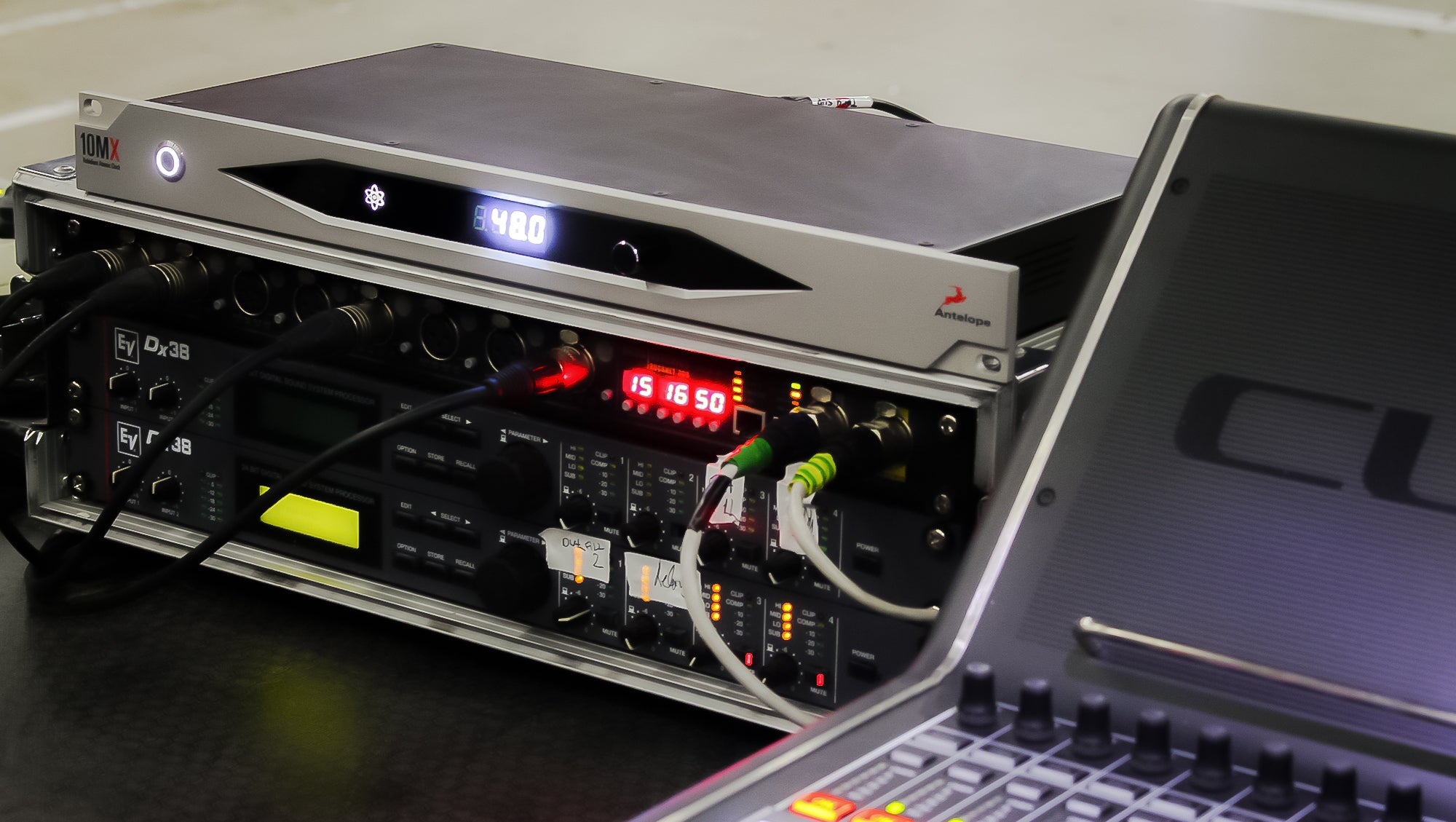

10MX fits any studio environment – from recording to mixing and mastering. It is perfectly suited for recording, mixing and mastering environments. Its form factor, occupying only 1U of rack space, makes it ideal for live sound application where rack slots are precious commodity.

The multiple atomic outputs allow up to 10 devices to be clocked simultaneously over BNC outputs of 10MHz. The unit can also be used as a master clock with 4 outputs, supporting the outstanding sampling rate of up to 768 kHz via BNC. Two more clocking outputs are available via AES and two via S/PDIF.

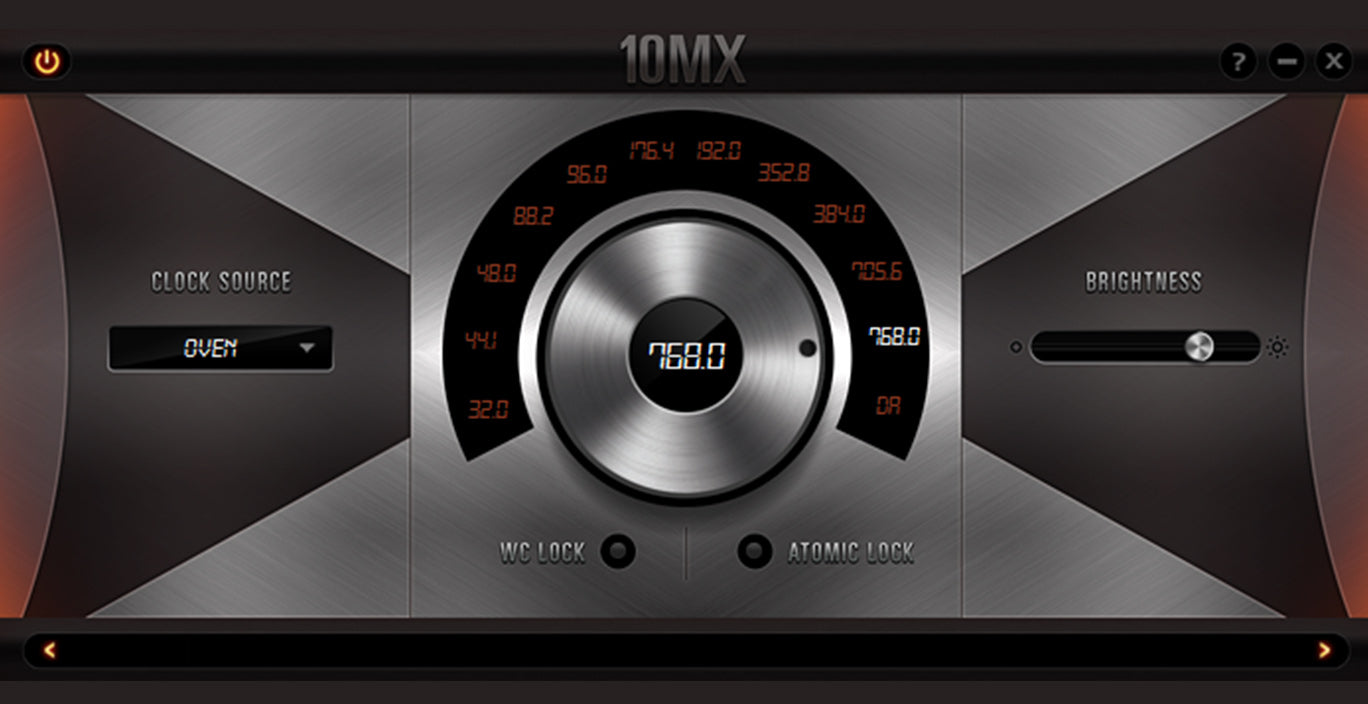

Advanced Control

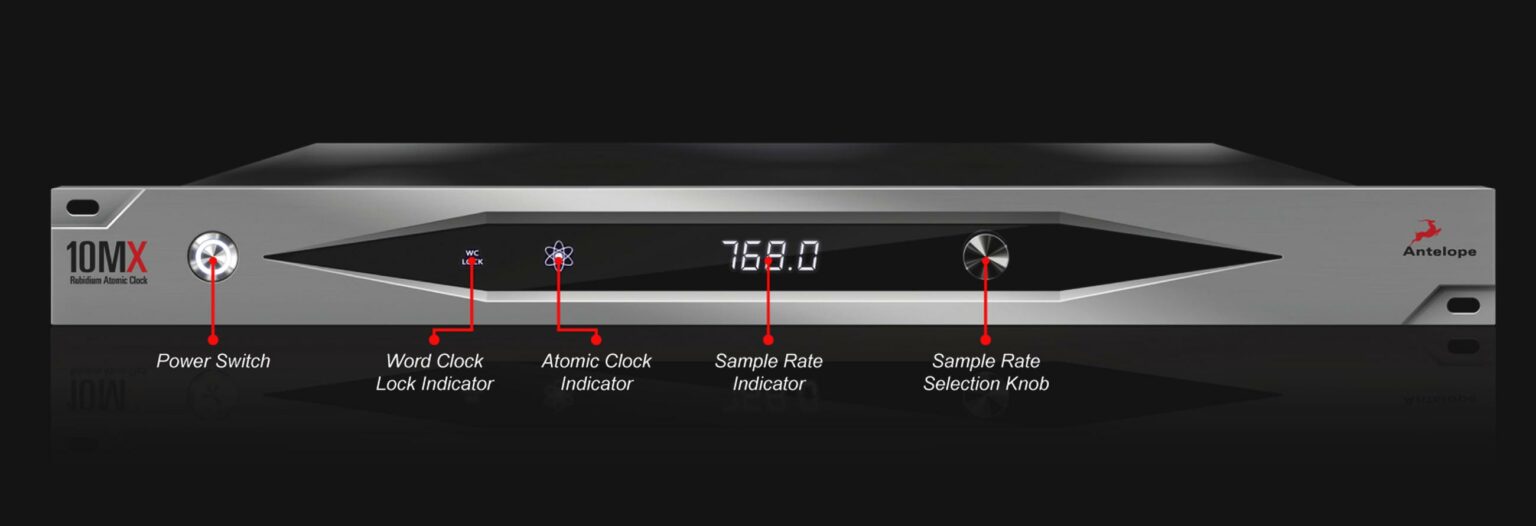

Access all features of 10MX via its user-friendly software app or from the sleek front panel

The new Rubidium Atomic Clock is equally easy manageable either from the front panel or the intuitive software control panel available for OS X and Windows, connecting via a USB port.



The Legend Grows

The 10MX continues the legacy of the world renowned 10M and Trinity

The new Rubidium Atomic Clock is an epiphany of more than 20 years’ expertise in the digital audio world, making vividly real the clarity, depth, width and 3-dimensional distinctive of the analog sound.



Specifications:



Phase Noise (SSB)

1Hz ≤-70 dBc/Hz

10Hz ≤-87 dBc/Hz

100Hz ≤-114 dBc/Hz

1kHz ≤-130 dBc/Hz

10kHz ≤-140 dBc/Hz



Short-Term Stability

t=1s ≤3E-11

t=10s ≤1.6E-11

t=100s ≤8E-12

Time drift in a 24-hr period:



Warm-Up Time

8 – 10 minutes (depends on ambient temperature)



Word Clock Input

1 x Word Clock Input @ 75 Ohms 3Vpp on BNC 44.1 – 384kHz



Maximum shock withstanding

Non-operating, flight case mounted:

100m/s2 (~10.2 g*), 11 msec half-sine pulse per IEC 60068-2-27:2008

Non-operating, in original packing:

300m/s2 (~30.6 g*), 5 msec half-sine pulse per IEC 60068-2-27:2008

* g – gravitational acceleration

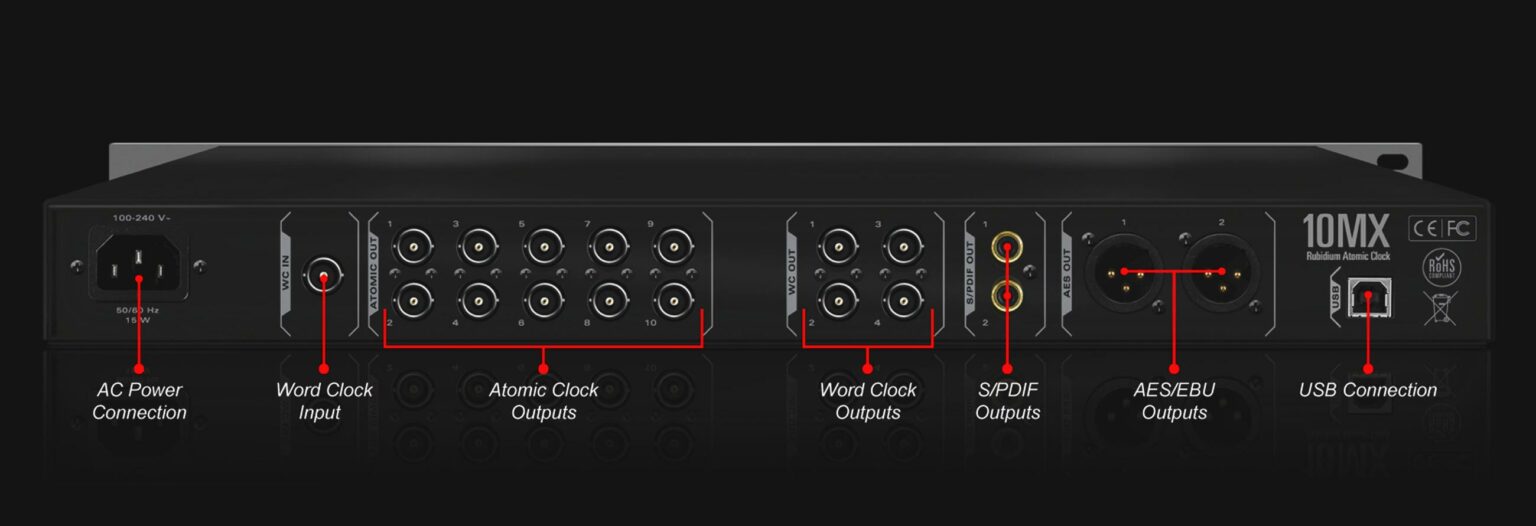

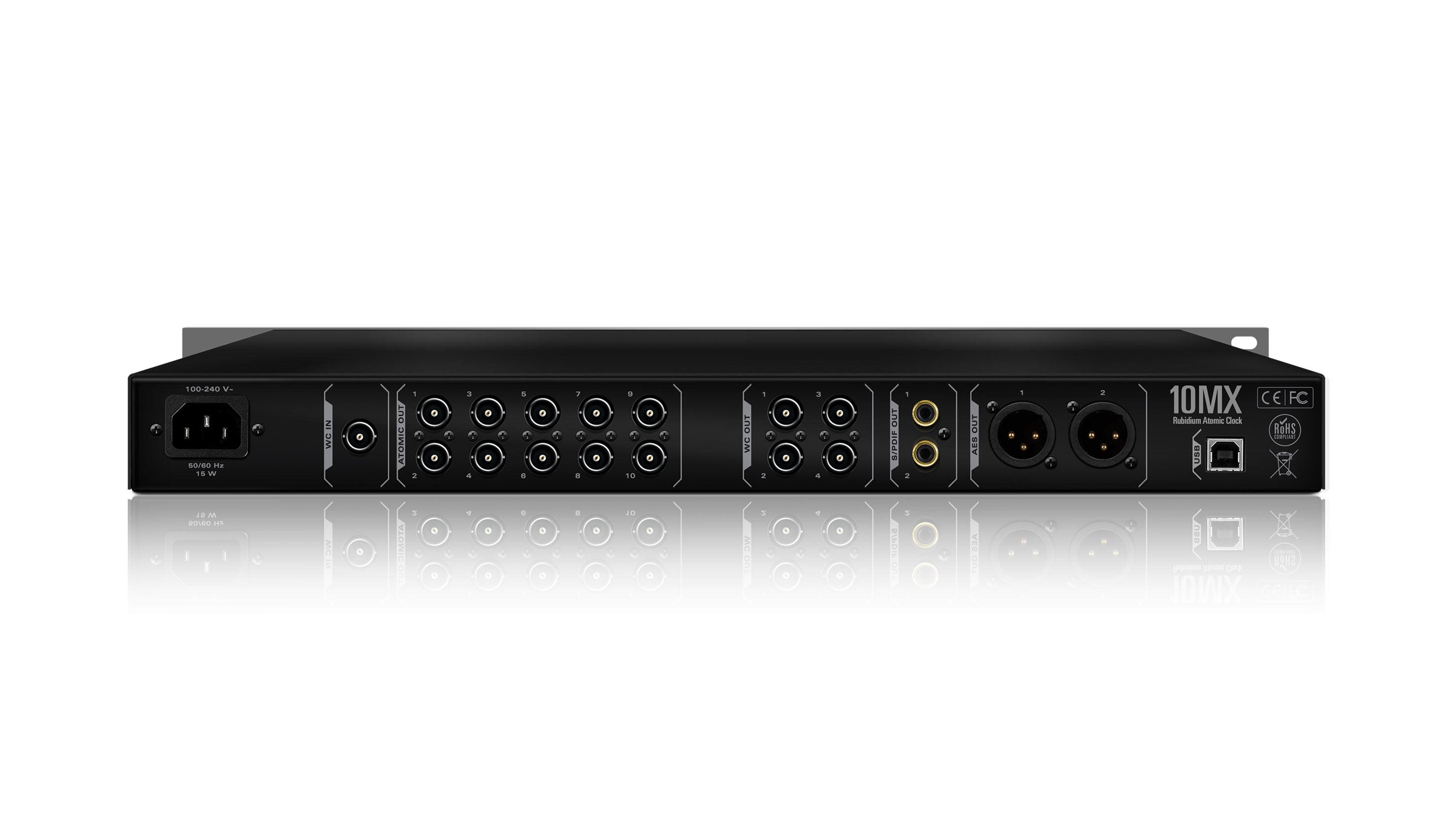

Outputs

Word Clock: 4 x BNC

AES/EBU: 2 x XLR

S/PDIF: 2 x RCA



Word Clock Outputs

4 x Word Clock Outputs @ 75 Ohms 3Vpp on BNC 44.1 – 768 kHz square wave signal



USB I/O

USB 2.0 Hi-Speed; Data stream up to 480Mbits/384kHz, Type B



Clocking System

4th Generation Acoustically Focused Clocking

64-bit DDS

Oven Controlled Crystal Oscillator



Clock Stability

<+/-0.0 2 PPM, oven controlled at 64.5 °C



Atomic Reference Type

Rubidium Ultra-Stable Resonance-Controlled Master Oscillator



Frequency

10 MHz



Frequency Accuracy

Better than ±5E-11 @25C (±0.05 PPB)



Aging

Daily* ±2.5E-11

Monthly* ±1E-10

Yearly ±1E-9

(*After 1 day & 1 month of operation respectively)





Atomic Clock Outputs

10 x BNC Sinusoidal, 10MHz, 75 Ohm, 1Vpp typical (unload)



Sample Rates (kHz)

32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 768



Word Clock Specs

TTL Level, 75 Ohm Output Impedance



USB

USB 2.0 Full-Speed, Type B, only for control



Operating Temperature

0-50°C, 32-122°F



Weight

2.8 kg/6.17 lb



Dimensions

482.6 (W) х228 (D) х 44 (H) mm

19 (W) x 9 (D) x 1.73 (H) inch



Power Supply

AC



Power Consumption

15 W



Humidity

30 – 80% RH non-condensing



Power Supply Input

100 – 240 V~



System Requirements

Windows

OS: Windows 7/8/8.1/10

Disk Space: Minimum 512 MB available disk space

USB: 1x USB 2.0 Port

Required USB bandwidth (for firmware update): 80%-90%

CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency

Memory (RAM): 4GB Minimum (8GB or more Recommended)



MAC

OS X: 10.9/10.10/10.11/10.12 (Sierra Recommended)

Disk Space: Minimum 512 MB available disk space

USB: 1x USB 2.0/3.0 Port

Required USB bandwidth: 80%-90%

Memory(RAM): 4GB Minimum (8GB or more recommended)

CPU: Intel Core 2 Duo (Minimum) Intel Core i3 ™ or higher (Recommended)

Additional Info: Internet connection required for product activation.
