Apogee Ensemble Thunderbolt Audio Interface

Product Description
$2,495.00

Superior Sound Quality. Powerful Plugin Performance. Lowest Latency.

Apogee Ensemble is the first Thunderbolt 2 audio interface to offer superior sound quality, the lowest latency performance and the most comprehensive studio functionality all in one box. Made for the professional home or commercial studio, Ensemble features legendary Apogee AD/DA conversion, 8 Advanced Stepped Gain™ mic preamps, monitor controller functionality including talkback, front panel Guitar I/O, two headphone outputs and digital connectivity for a total of 30 x 34 I/O.

When you buy and register your Apogee Ensemble, you have access to incredible prices on any Waves audio plugins you want. Registered Apogee Ensemble customers will receive a discount code good for 25% off a single plugin or 35% off any Waves bundle plus an additional $100 voucher* that can be used towards their next Waves plugin purchase. Ensemble’s Core Audio optimized DMA engine, custom audio driver and Thunderbolt 2 connection combined with the powerful processing of your Mac allow you to utilize more plugins and virtual instruments with the lowest latency performance of any native system.



Specifications:

Highlights

  • 8 Mic preamps with up to 75 dB of gain and Advanced Stepped Gain circuit
  • Thunderbolt connectivity for ultra-low latency (1.1ms round trip with Logic Pro X)
  • Front panel Guitar I/O with Class A JFET inputs, dual mode re-amp outputs
  • Includes special offers on Waves plugins (available upon registration)
  • Talkback functionality with built-in mic and control button
  • 2 PurePower headphone outputs
  • 10 separately assignable analog inputs
  • 16 analog outputs of premium Apogee conversion

System Requirements

Mac OS:

  • Computer: Thunderbolt-equipped Mac (iMac, Macbook Pro, Macbook Air, Mac Pro)
  • Memory: 4 GB RAM minimum, 8 GB recommended
  • OS: 10.9.3 or greater
  • Connection: Any available Thunderbolt port on a Mac

Compatible Software:

  • Any Mac Core Audio compatible application
  • Recommended apps: Logic Pro, Pro Tools, GarageBand, MainStage, Final Cut, Ableton Live, Digital Performer, Studio One, Cubase, and Nuendo

In the box:

  • Ensemble
  • 3-pin IEC power cable
  • Rubber feet
  • Quick Start Guide
  • Warranty Booklet

Features:

  • Thunderbolt 2 Mac audio interface
  • Analog-to-digital conversion (ADC) for recording up to 24-bit/192kHz
  • Proprietary Thunderbolt audio driver and ESS Sabre32 DAC offer full 32-bit playback
    • Groundbreaking low latency performance
    • Core Audio-optimized hardware engine frees your Mac CPU

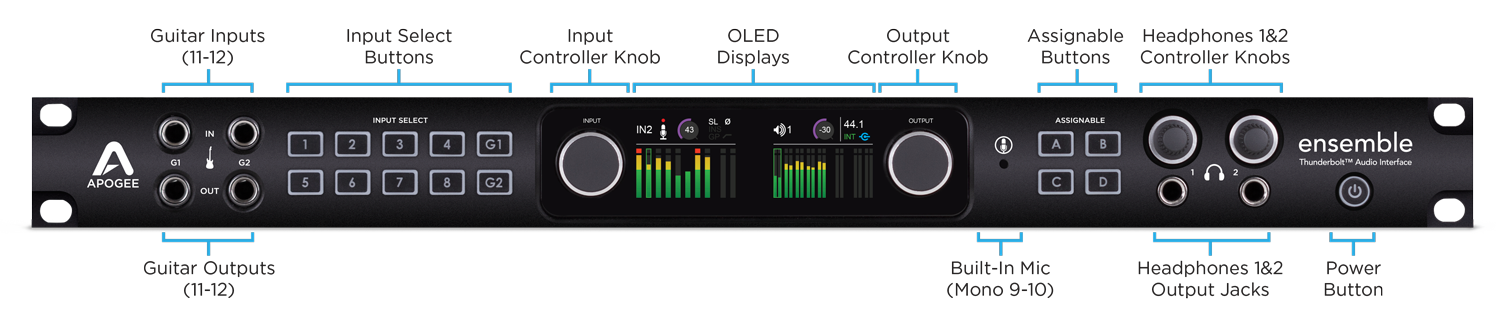

  • 2 high-resolution OLED displays show levels and settings
  • Input select buttons and controller knob for convenient selection of parameters and settings
  • 4 assignable buttons to control:
    • Talkback mic (built-in or external)
    • Output settings such as speaker set selection, mute, dim, sum to mono Complete input/output control with Apogee’s Maestro software
  • Works with Pro Tools, Logic, Ableton and any Core Audio compliant app on Mac
  • Designed in California – Assembled in the U.S.A.

General Info:

  • Dimensions: 19” X 12.125” X 1.73”
  • Weight: 11.15 lbs.
  • AC IN 100-240V, 50-60 HZ, 65W MAX

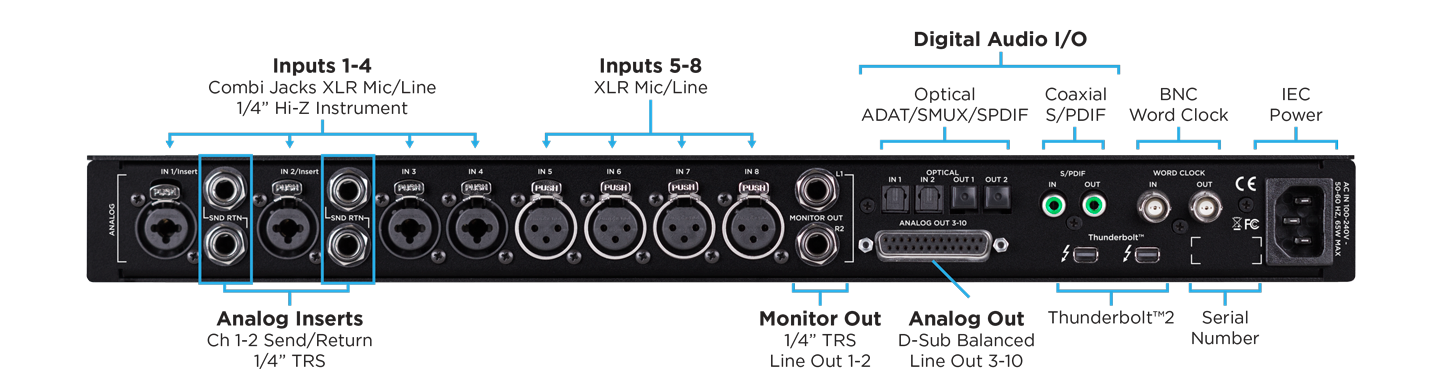

Analog Inputs:

  • 4 Combi mic/line/instrument inputs
    • 2 1/4″ balanced analog inserts
  • 4 XLR mic/line inputs
  • 2 1/4″ hi-z guitar/instrument inputs with Class-A JFET input stage

Digital Inputs:

  • Optical IN: Supports ADAT, SMUX & S/PDIF
    • ADAT: 16 channels 44.1-48 kHz on 2 Toslink connectors
    • SMUX: 8 channels 88.2-96 kHz on 2 Toslink connectors
    • S/PDIF: 4 channels, up to 96 kHz on 2 Toslink connectors
  • Coax IN: 2 channels of S/PDIF, up to 192 kHz on 1 RCA connector
  • Word clock input on BNC connector

Built-in Microphone:

  • Mono omnidirectional condensor capsule on front panel

Mic Preamps:

  • 8 Mic preamps
  • Gain: Up to 75 dB and advanced stepped gain circuit design
  • Selectable 48v phantom power, hi-pass filter, Soft Limit ̈ and polarity invert
  • EIN: 129dB (un-weighted) @ 60dB, 150Ohm input
  • Max input level: +20dBu
  • Input impedance: 3K Ohm

Hi-Z:

  • Max input level 14 dBu
  • Input impedance: >2MOhm

Analog Outputs:

  • 2 1/4″ balanced monitor outputs
  • 8 balanced outputs on 1 DSUB 25-pin connector
  • 2 independent 1/4″ stereo headphone outputs
  • 2 1/4″ dual-mode guitar/instrument outputs

Digital Outputs:

  • Optical OUT: Supports ADAT, SMUX & S/PDIF
    • ADAT: 16 channels 44.1-48 kHz on 2 Toslink connectors
    • SMUX: 8 channels 88.2-96 kHz on 2 Toslink connectors
    • S/PDIF: 4 channels, up to 96 kHz on 2 Toslink connectors
  • Coax OUT: 2 channels of S/PDIF, up to 192 kHz on 1 RCA connector
  • Word clock output on BNC connector

A/D conversion:

  • Max input level (+4dBu ref/Mic): +20dBu
  • Max input level (-10dBV ref): +6dBV
  • Input impedance: 5KOhm
  • Freq resp 10 Hz -20Khz: > +/-0.2dB (@44.1Khz)
  • Rel. THD + N: -110dB (@ 96Khz)
  • Dyn. Range: 119dB (A-weighted)

D/A conversion:

  • Max output level (+4dBu ref): +20dBu
  • Max output level (-10dBV ref): +6dBV
  • Line output impedance: 90 Ohm
  • Freq resp 10Hz -20 Khz: > +/- 0.05dB (@44.1Khz)
  • Rel. THD+N : -114dB (@96Khz)
  • Dyn Range: 123dB (A-weighted)
  • Front panel Guitar Output: impedance balanced/max level 14 dBu
  • Headphone Max output level: 19dBu
  • Headphone Rel THD + N into 600 Ohm: -109dB
  • Headphone Dyn Range: 120dB (A-weighted)
Vendor : Apogee
