Arturia RackBrute 3U

Product Description
$259.00
Maximum quantity available reached.

Arturia RackBrute 3U

Don’t worry. Your beloved modules are under heavy guard.
Modular gear is a precious commodity, and you need a versatile housing and security system to accommodate them. A first glance, you’ll see that this is a perfectly fitted 3U, 88 HP case made of a light but strong aluminum chassis, fitted with wood side panels. Deceptively simple, RackBrute is far more than a simple box. It includes many smart additions, such as the included +12V / -12V / +5V power supply that ensures that keeps everything up and running, and the multi-position handle system that not only lets you carry your collection with ease, but also lets you deploy an optimal operating angle, whatever your preference.

The best way to recognize a specialist is through the quality of their equipment.

Ready for anything
Secure an unobstructed viewpoint over the theatre of operation, and hold the position ‘til further orders.

In addition to keeping your modules safe and secure, RackBrute 3U gives you total control of the situation, no matter the context. The first of its secret weapons is the Link fastening system. Paired with the included handle, it will let you choose one of several configurations and orientations for your modular arsenal. Whether you want your gear stealthy and prone, or standing to attention, RackBrute is at your command.

The second trick up its sleeve is the stalwart, ever-reliable, power supply module. Including two independent circuits to supply common modular voltages, it will more than cover your need for +12V, -12V and +5V, providing up to 1600mA in total.

Thirdly, its robust power rail includes a sophisticated noise-filtering technology, and provides 20 standard slots to leave plenty of space for your collection.

Once you’re powered, in position, and locked down, you’ll feel like your modular rig could withstand a siege.

Joining forces with allies
Always remember the Modular Republic’s motto: Unity is strength

The Link fastening system not only equips the RackBrute 3U, but also its large-calibre sibling, RackBrute 6U as well the MiniBrute 2 and MiniBrute 2S. No matter the combination you go for, you can make the most out of your extensive module collection, or create a powerful EcoSystem with the extensive CV/Gate connectivity of the MiniBrute 2 and 2S.

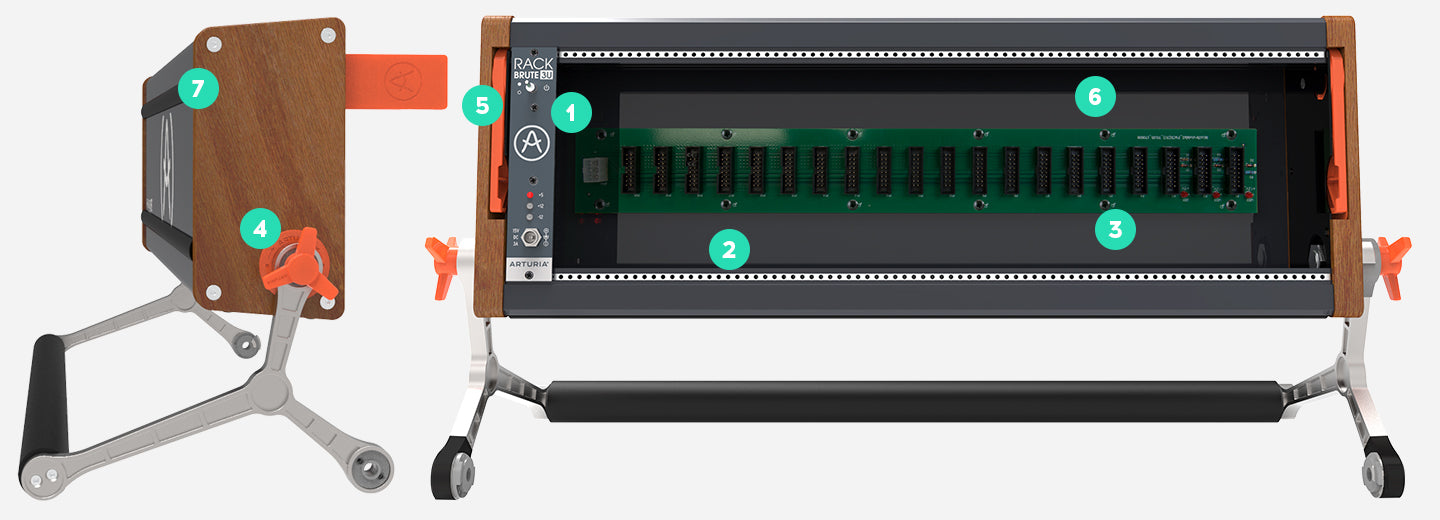

Equipment checking!
All present and correct, ready for inspection. We trust you’ll find everything to your liking.

1. Power module
Power supply with 1600mA +12V output, 1600mA -12V output and 900mA +5V output. 5HP width.

2. Screw holes to connect modules

3. Power and signal distribution
connect up to 20 modules

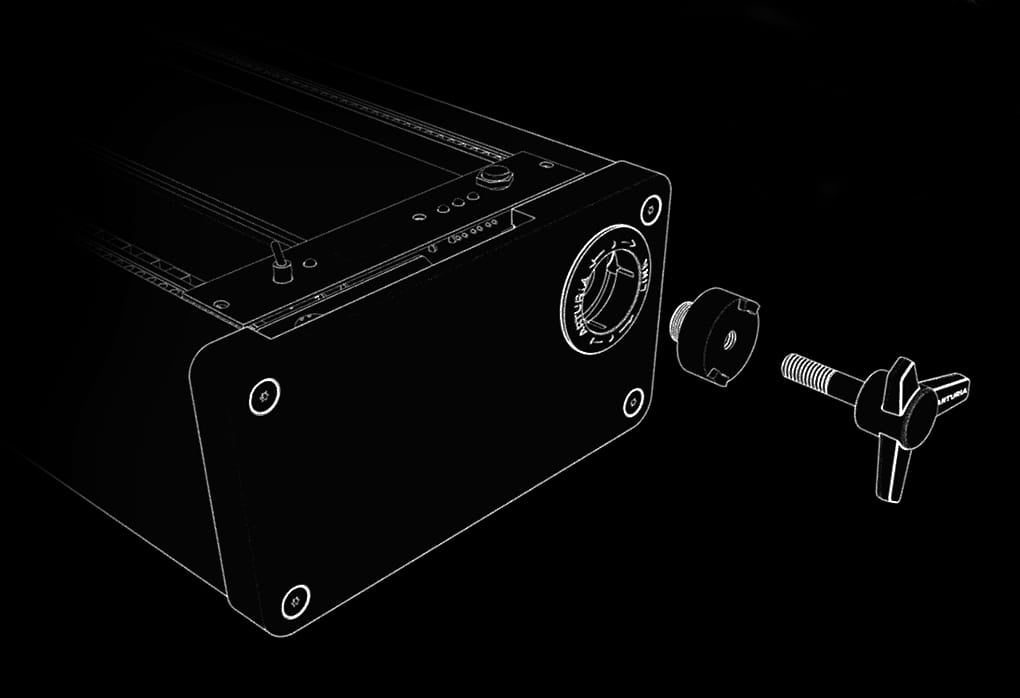

4. Link system
use RackBrute in various configurations

5. Retractable stops
protection for folded configuration (requires another Link-ready unit)

6. 88HP total width
83HP available when power supply module is connected

7. Anti-slip strips
Keep everything nice and steady when RackBrute is placed face-up.
Let’s move out

We made sure that your gear would arrive without the list scratch.

When carrying precious cargo, dozens of fragile modules, a unique and irreplaceable collection, you need to be certain of their safety. With RackBrute 3U, you have nothing to fear: from the handle, all the way to the threaded nut strips, you’ll find strong aluminum and steel. Wherever you go, however long your journey, however heavy your setup, RackBrute was built to last. Even transporting two RackBrutes or a RackBrute and a MiniBrute 2 is totally risk-free thanks to the built-in Spacers, eliminating any chance of collision.

If you are planning an undercover mission, the dedicated, discrete RackBrute Travel Case will keep your precious equipment free from harm.

When you need to take your show on the road, rehearse, or even just rearrange your creative space, you can depend on RackBrute.

Main Features

  •     Eurorack format, 88 HP
  •     Aluminum Chassis
  •     Provided with a 5 HP power module
  •         Up to 1600mA on +12V and 1600mA on -12V (2 separate circuits of 800mA)
  •         Up to 900mA on 5V (USB + 5V modules)
  •     Power rail with
  •         Noise filtering
  •         20 standard power slots with up to 800mA on +12V and -12V
  •     Link system and smart handle to fasten a MiniBrute 2/2S or another RackBrute unit in various configurations
  •     Built-in Spacers for the highest protection in transport configuration

Box contents

  •     RackBrute 3U unit
  •     Power cord

Size & weight

  •     Instrument size : 19 x 6.6 x 3.3 inches (484 x 167 x 83mm)
  •     Instrument weight : 4.7 lbs. (2.1 Kg)




Sku: 532101
Vendor: Arturia
