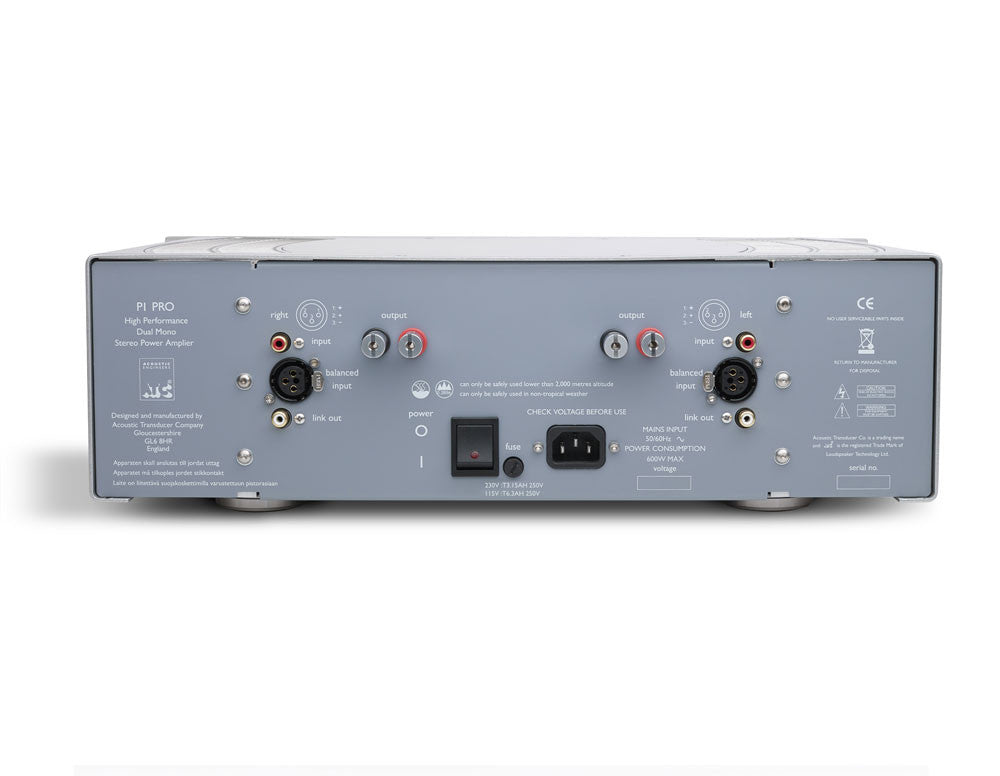

ATC P1 Pro – Dual-Mono Power Amplifier

Product Description
$3,056.66
Maximum quantity available reached.

Overview

True dual-mono design delivers full power simultaneously from both channels, with minimal crosstalk
Grounded source class A/B circuit topology as found in ATC’s renowned active loudspeakers.
Ultra wide bandwidth, low distortion and high dynamic range ensure tonal accuracy and perfectly timed transients.
No compromise, high performance power supply and large heatsinks guarantee outstanding stability and long term reliability.
A perfect match for any passive studio reference monitor.
19” Rack mountable convection cooled chassis
Hand built in the UK and supported by a 6 year warranty.

Specification

Output Power into 8 Ω: 150W (8 Ω, 1kHz, continuous. avg., both channels driven)
Input Sensitivity: 2V RMS (ref. 150W out)
Input Impedance: 10kΩ/leg
Frequency Response: <2Hz – >400kHz (-3dB)
Signal to noise ratio: >115dB (IEC ‘A’)
Crosstalk: >100dB (10Hz – 20kHz)
THD: >0.002%/-95dB (8 Ω, 1kHz, -1dB below full Power)
Damping Factor: >400 (8 Ω)
Dimensions (HxWxD): 141.1×482.6×365.6mm (3U tall with feet removed)
Weight: 20kg/44lbs

Sku: P1 PRO MONOBLOCK
Vendor: ATC
