The Micro Clock MKIII is the culmination of almost 10 years of research involving jitter-reducing, harmonic-enhancing design techniques not found in any other master word clocks on the market. It not only can sync all of your digital audio gear together, but can significantly improve the sound quality as well. It may be the most significant single upgrade you can make to your digital audio setup. Get ready to hear what you’ve been missing!

The Micro Clock MKIII is a significant redesign of its predecessor, the Micro Clock MKII. Core technological improvements include lower-jitter crystal oscillators, higher-quality galvanic transformer isolation in the signal path, dedicated output drivers with better isolation, higher-precision signal division, and much heavier noise filtration throughout the circuit. All of this results in a more robust, lower-jitter clock signal than the Micro Clock MKII, with even more desirable harmonics in the clock’s spectral band that impart an undeniable musical quality to the conversion process. The feature set has expanded to include an LED frequency display, six BNC outputs capable of up to 384kHz, AES and RCA S/PDIF outputs capable of up to 192kHz, an optical S/PDIF output capable of up to 96kHz, and removable rack ears.

FRONT

  1. POWER: engage to turn unit on, disengage to turn unit off
  2. DISPLAY CONTRAST: engage to dim display, disengage to brighten display
  3. FREQUENCY (kHz): rotate three clicks at a moderate speed to unlock and cycle through output frequencies as indicated on the display

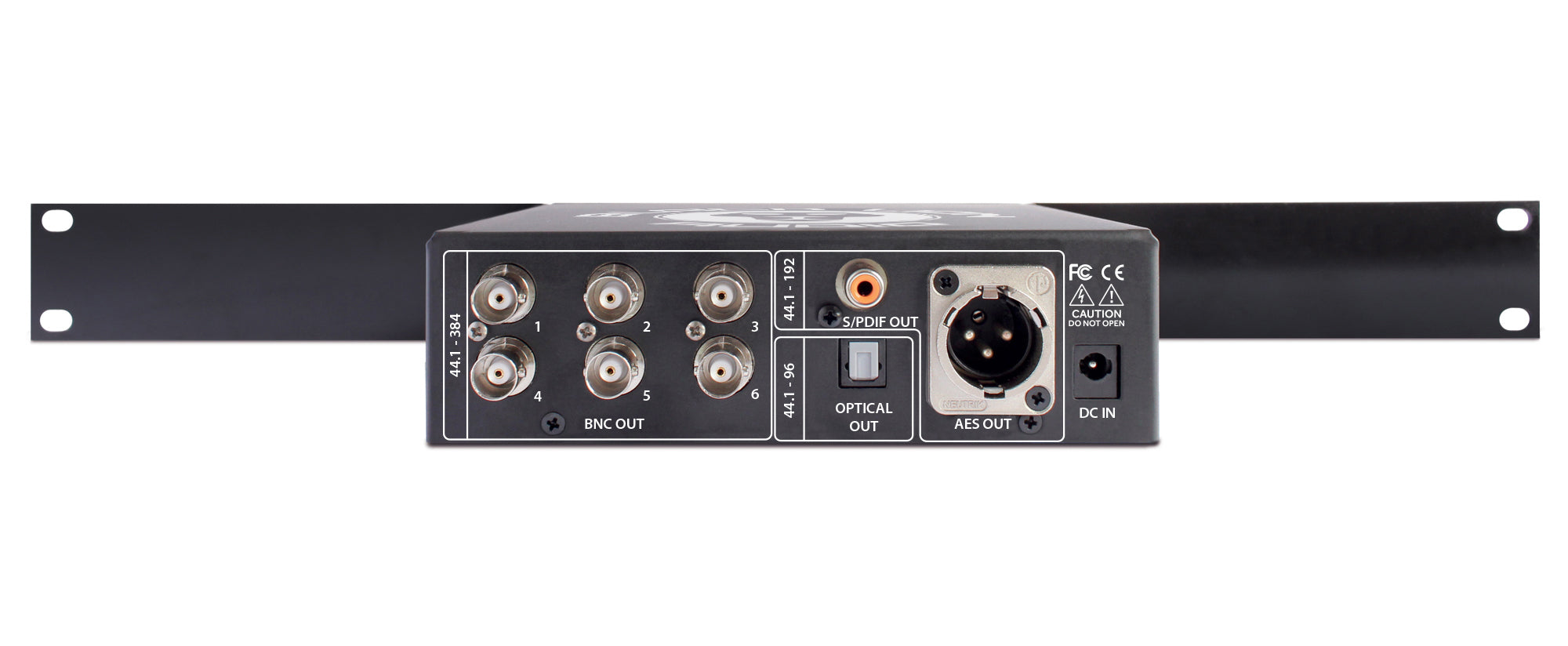

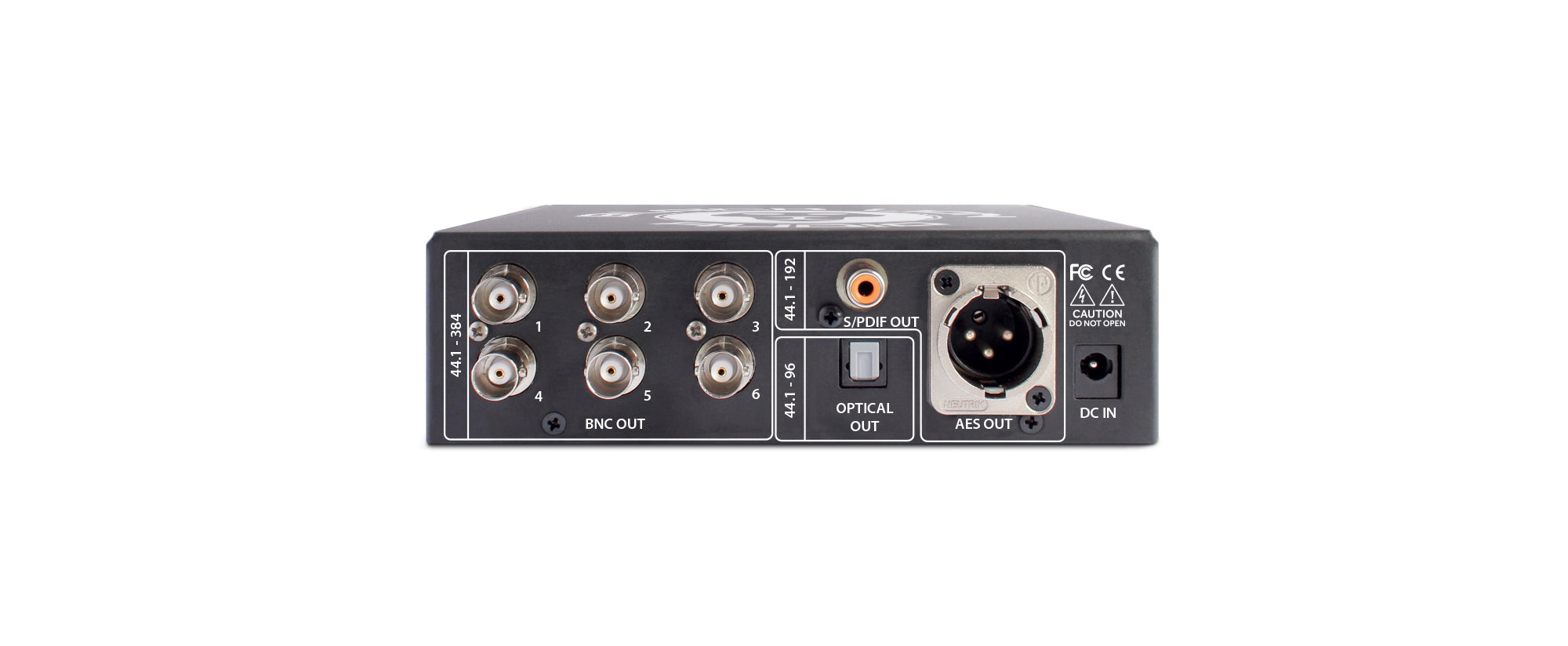

BACK

  1. BNC Out: 5V, 75Ω output; termination is optional (44.1kHz – 384kHz)
  2. S/PDIF Out: unbalanced RCA output (44.1kHz – 192kHz)
  3. Optical Out: optical S/PDIF output; does not support ADAT (44.1kHz – 96kHz)
  4. AES Out: balanced XLR output (44.1kHz – 192kHz)
  5. DC In: 9VDC center pin positive, input jack

Jitter: 1.92pS RMS (BNC outputs)
Outputs: 6 BNC, 1 XLR AES, 1 RCA S/PDIF, 1 Optical S/PDIF (recommended max. cable length = 1,000ft of high quality, 75Ω coaxial cable)

  • BNC: 75 Ω, 5V unterminated
  • RCA S/PDIF: 75 Ω, unbalanced
  • AES XLR: 110 Ω, balanced

Clock Frequencies

  • BNC (kHz) – 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384
  • RCA S/PDIF & AES (kHz) – 44.1, 48, 88.2, 96, 176.4, 192
  • Optical S/PDIF (kHz) – 44.1, 48, 88.2, 96

Power: 9VDC (6W power consumption)
Power connector: 2.1mm barrel connector with 5.5mm outer diameter (center pin positive)
Weight: 2.2lbs
Dimensions: 6.5”L x 6”W x 1.75”H (without rack ears installed)
Shipping Dimensions: 13x13x5
Shipping weight: 4lbs
