DPA d:dicate™ 4006C Compact Omni Mic
DPA d:dicate™ 4006C Compact Omni Mic
DPA d:dicate™ 4006C Compact Omni Mic

DPA d:dicate™ 4006C Compact Omni Mic

Price
$1,978.95
Taxes and shipping calculated at checkout

Stock Notification

Get notified when this product is available again

Frequently Bought Together

Have a question?

4006C OMNIDIRECTIONAL MICROPHONE, COMPACT

Whenever a small, lightweight and inconspicuous microphone for top-quality recording is required, the d:dicate™ 4006C Omnidirectional Microphone, Compact mic is the perfect choice. The mic design is compact and clean.
This is a very versatile recording microphone. The mic is popular as an A-B stereo pair in concert halls where quality recordings can sometimes be compromised by classic architecture. The mic can be mounted, hung or concealed to create clean, transparent recordings.

It is ideal for use in theatres, opera houses, concert halls and houses of worship – anywhere there is a live audience. It can also be for film recordings, both in the studio and on location. Musicians like to use this mic to close-mike some instruments, such as the double bass, trumpet and piano. And, at the same time, they are fantastic for ambience miking on soundstages, in sports stadiums and other environments where audience sound needs to be recorded.

The microphone capsule

This microphone offers total transparency in any recording situation. It picks up incredible detail and depth of sound. The definition of its high-frequency characteristics across a wide range of instruments is impressive. It offers natural sound, high sensitivity, low noise-floor and extremely linear frequency response from 10 to 20 kHz (±2 dB).

The d:dicate™ 4006C Omnidirectional Microphone, Compact is a flexible solution. Engineers, broadcasters and musicians alike can achieve clean, natural and precise sound reproduction. This mic is ideal for A-B stereo pairs for symphonic concert hall recordings. It also excels on vocals, for close-miking all types of instruments and as an outdoor interview microphone.

A selection of accessories is available, including acoustic pressure equalizers, a nose cone and interchangeable protection grids. These accessories can acoustically transform the mic. By changing grids, it is possible to gain several unique frequency responses and directional characteristics from the mic. Furthermore, these accessories will not produce any phase shift, noise or distortion that would otherwise be introduced by an electrical filter.

A truly flexible range

The d:dicate™ 4006C Omnidirectional Microphone, Compact is part of the flexible d:dicate™ Microphones Series. It combines the MMC4006 Omnidirectional Capsule with the MMP-C compact preamplifier. This combination offers a subtle character alteration with a bit more “body” to the low end than the d:dicate™ 4006A Omnidirectional Microphone.

Another option, for the true audiophile, is the d:dicate™ 4006A Omnidirectional Microphone. It offers low distortion and totally accurate and faithful sound.

At any time, and with no tools needed, it is possible to transform the d:dicate™ 4006C Omnidirectional Microphone, Compact into a new configuration. You can combine it with another d:dicate™ or d:facto™ Microphone Capsule or Preamplifier.

The d:dicate™ 4006C Omnidirectional Microphone, Compact is available as a sensitivity-selected stereo pair ST4006C.

Features

The product offers the following features
Neutrality
Versatility
Precision
Recording standard

Frequency response with Free-field Grid
Frequency response with Close-miking Grid
Frequency response with Diffuse-field Grid
Frequency response with Nose Cone
Polar pattern with Free-field Grid
Polar pattern with Close-miking Grid
Polar pattern with Diffuse-field Grid
Polar pattern with Nose Cone
Polar pattern with Nose Cone - Vertical

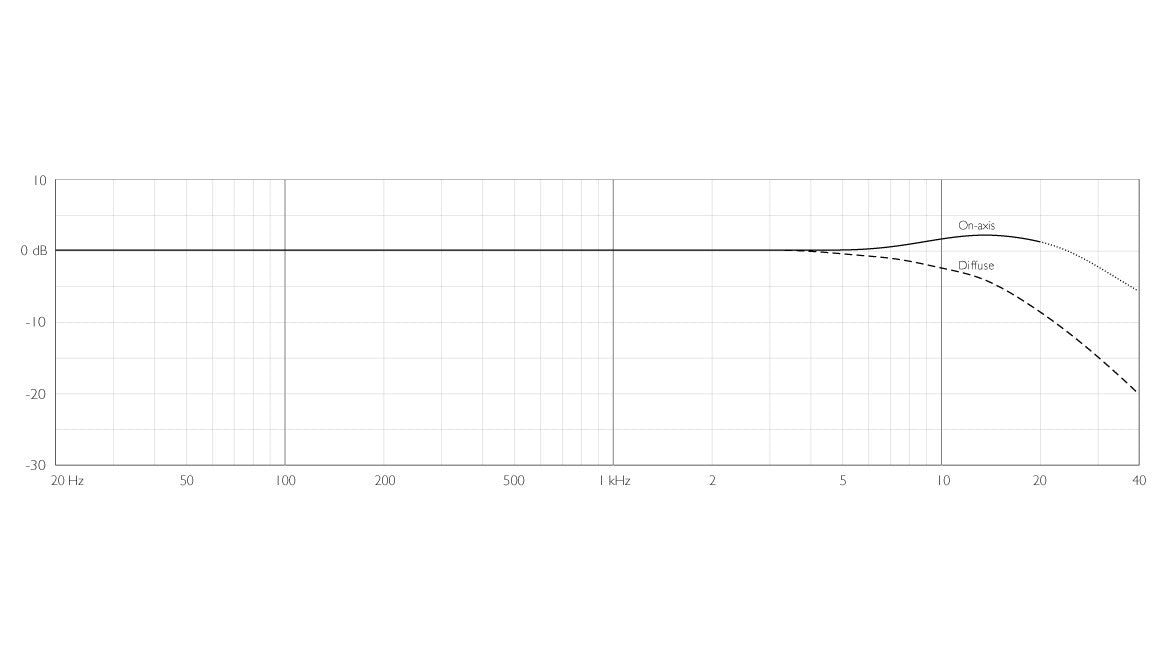

Typical on and off-axis response of a 4006A

Specifications
d:dicate™ Recording Microphones 4006C OMNIDIRECTIONAL MICROPHONE, COMPACT

Directional patternOmnidirectional
Principle of operationPressure
Cartridge typePre-polarized condenser
Frequency range10 Hz - 20 kHz
Frequency range, ±2 dB20 Hz - 20 kHz
Sensitivity, nominal, ±2 dB at 250 Hz40 mV/Pa; -28 dB re. 1 V/Pa
Equivalent noise level, A-weightedTyp. 15 dB(A) re. 20 µPa (max. 17 dB(A))
Equivalent noise level, ITU-R BS.468-4Typ. 27 dB (max. 29 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)Typ. 79 dB(A)
Total harmonic distortion (THD)< 1% up to 134 dB SPL peak
Dynamic rangeTyp. 119 dB
Max. SPL, peak before clipping139 dB
Output impedance100 Ω
Minimum load impedance2 kΩ
Cable drive capability100 m (328 ft)
Output balance principleImpedance balancing with Active Drive
Common mode rejection ratio (CMRR)> 50 dB
Power supply (for full performance)48 V Phantom power (± 4 V)
Current consumption2.8 mA
ConnectorXLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
ColorMatte black
Weight63 g (2.2 oz)
Microphone diameter16 - 19 mm (0.6 - 0.75 in)
Capsule diameter16 mm (0.6 in)
Microphone length64 mm (2.5 in)
Maximum output voltage, RMS4.5 V
Polarity+V at pin 2 for positive sound pressure
Temperature range-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)Up to 90%
Matching tolerance (frequency response and sensitivity)±0.5 dB
Phase deviation for kit< 5°
