DPA d:dicate™ 4011ER/ES Cardioid Mic

Product Description
$1,789.95
Maximum quantity available reached.

4011ER/ES CARDIOID MICROPHONE

Ideal for unobtrusive spot miking, such as hanging or table use, the d:dicate™ 4011E Cardioid Microphone, Active Cable is an ultra-compact cardioid microphone from the modular d:dicate™ Microphones Series. The mic has a length of only 3.5 cm (1.4 in) and a low-key appearance.

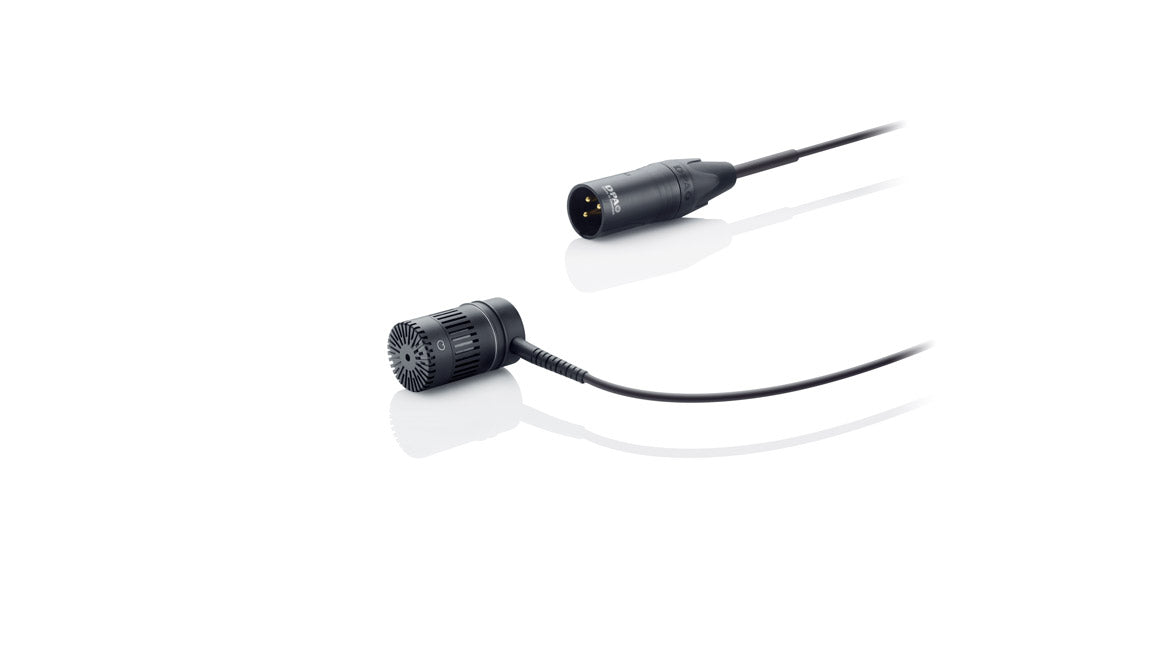

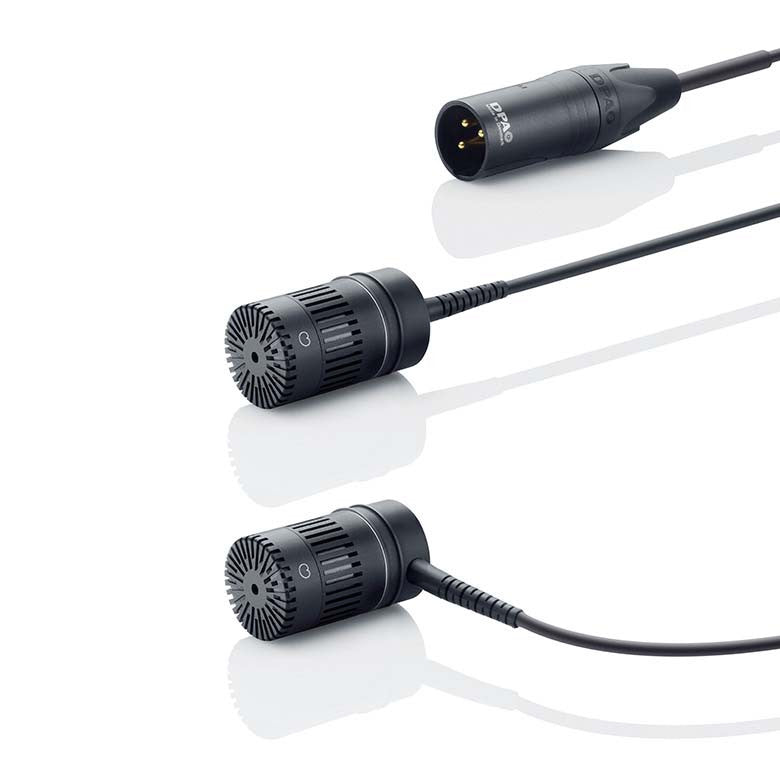

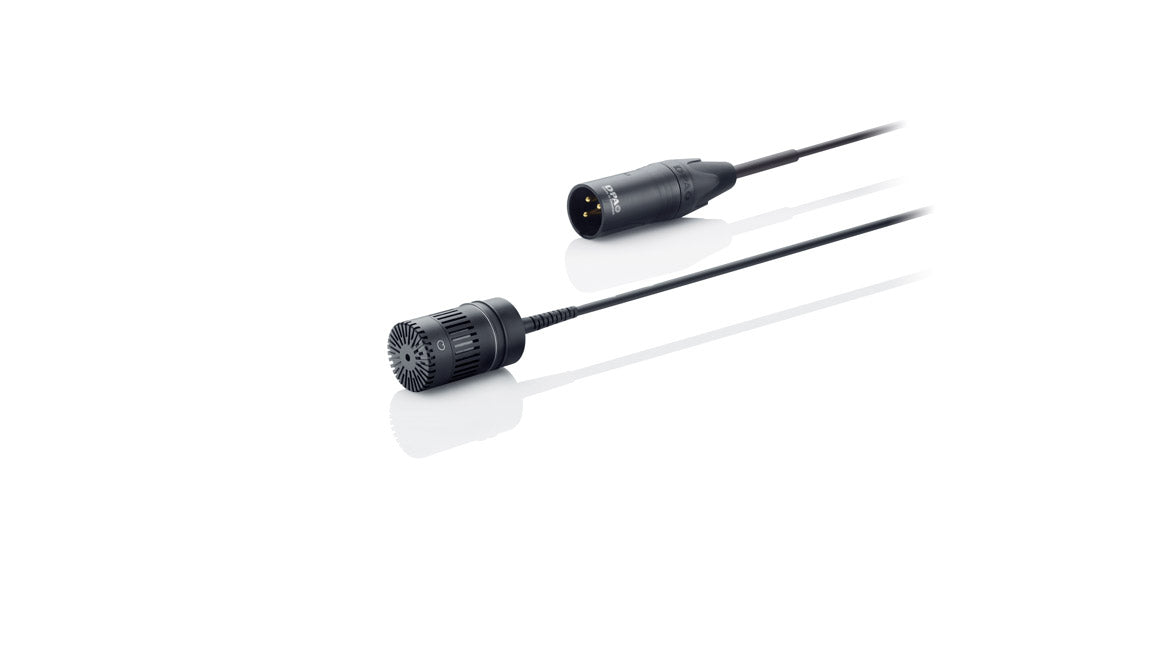

The d:dicate™ 4011E Omnidirectional Microphone features an integrated cable solution with either side (4011ES) or rear (4011ER) cable entry. This allows the mic to be hung from the ceiling and create precise and repeatable positions and angles when spot miking orchestra sections or ambience atmospheres.

The microphone capsule

The principal appeal of the MMC4011 Cardioid Microphone Capsule is its directional quality and attention to detail. This mic makes everything sounds like the original. The first-order cardioid pickup pattern provides superb separation between sound sources.

Capable of handling high SPLs without distortion, the microphone is perfectly tailored for close-miking applications; minimizing bleed from other instruments. It is ideal for close-miking of instruments like acoustic guitar, drums or grand piano. With its accessories, it can even be placed, for instance, in the piano frame.

A flat on-axis frequency response and excellent phase response deliver a totally faithful reproduction of the original sound. The off-axis response is similarly smooth so that any leakage is an accurate reflection of the original, though attenuated according to the true first-order cardioid pickup pattern.

A truly flexible range

This mic is part of the flexible d:dicate™ Microphone Series. At any time, and with no tools needed, it is possible to transform the d:dicate™ 4011ER/ES Omnidirectional Microphone into a new configuration. You can combine it with another d:dicate™ or d:facto™ Microphone Capsule or Preamplifier.

The d:dicate™ 4011ES replaces the non-modular legacy 4021 Cardioid Condenser Microphone and the d:dicate™ 4011ER replaces the non-modular legacy 4022 Cardioid Condenser Microphone.

Order numbers: 4006ER, 4006ES.

Features

The product offers the following features
Ultra-compact spot or hanging mic
Close-miking
Great for high sound levels
Accurate sound
Colorless sound
Modular flexibility

Specifications
d:dicate™ Recording Microphones 4011ER/ES CARDIOID MICROPHONE

Directional patternCardioid
Principle of operationPressure gradient
Cartridge typePre-polarized condenser
Frequency range20 Hz - 20 kHz
Frequency range, ±2 dB, at 30 cm (11.8 in)40 Hz - 20 kHz
Sensitivity, nominal, ±2 dB at 1 kHz10 mV/Pa; -40 dB re. 1 V/Pa
Equivalent noise level, A-weightedTyp. 18 dB(A) re. 20 µPa (max. 20 dB(A))
Equivalent noise level, ITU-R BS.468-4Typ. 25 dB
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)Typ. 76 dB(A)
Total harmonic distortion (THD)< 1% up to 139 dB SPL peak
Dynamic rangeTyp. 121 dB
Max. SPL, peak before clipping144 dB
Output impedance100 Ω
Minimum load impedance2 kΩ
Cable drive capability100 m (328 ft)
Output balance principleImpedance balancing
Common mode rejection ratio (CMRR)> 40 dB
Power supply (for full performance)48 V Phantom power (± 4 V)
Current consumption3.5 mA
ConnectorXLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
ColorMatte black
Weight109 g (3.8 oz)
Microphone diameter19 mm (0.75 in)
Capsule diameter19 mm (0.75 in)
Microphone length35 mm (1.38 in)
Maximum output voltage, RMS2.2 V
Polarity+V at pin 2 for positive sound pressure
Temperature range-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)Up to 90%
Matching tolerance (frequency response and sensitivity)±1 dB
Phase deviation for kit< 10°



Sku: 4011ER
Vendor: DPA
