DPA d:dicate™ 4018A Supercardioid Mic

Product Description
$1,646.40
Maximum quantity available reached.

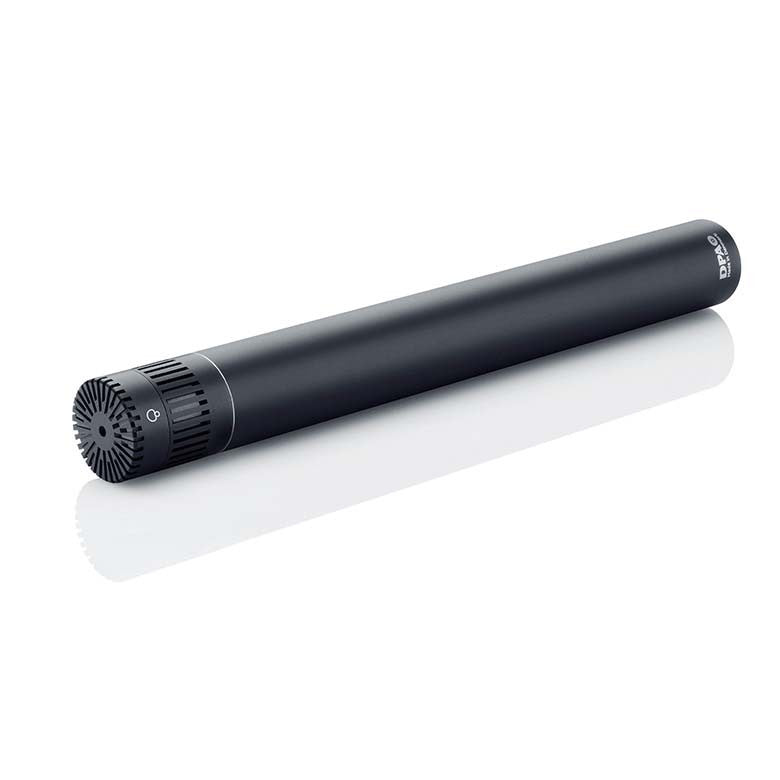

4018A SUPERCARDIOID MICROPHONE

This mic is part of the flexible d:dicate™ Microphones Series. It has a highly-directional supercardioid pickup pattern with a smooth and uniform off-axis frequency response.
The d:dicate™ 4018A Supercardioid Microphone is designed for a broad range of music recording and broadcast/ENG/film long-distance miking applications. It can be used for booming, dialogue, interview and table or spot-recording use. The mic also offers superb expandability through modular accessories. It is ideal for use as spot or hanging mic for orchestra recording situations.

The microphone capsule

The supercardioid shape is frequency independent, securing an identical sound color around the microphone. The usual rear lobe heard on most supercardioids is minimized on this capsule. This makes it much more isolated without sudden frequency dependent peaks and dips.

A truly flexible range

This mic is part of the flexible d:dicate™ Microphone Series. At any time, and with no tools needed, it is possible to transform the d:dicate™ 4018A Supercardioid Microphone into a new configuration. You can combine it with another d:dicate™ or d:facto™ Microphone Capsule or Preamplifier.

Features

The product offers the following features
Low noise and high sensitivity
Highly directional for high isolation
Most controlled supercardioid shape
Uniform, frequency independent directionality
Excellent for spot miking orchestra sections or singers
Modular flexibility

Specifications
d:dicate™ Recording Microphones 4018A SUPERCARDIOID MICROPHONE

Directional patternSupercardioid
Principle of operationPressure gradient
Cartridge typePre-polarized condenser
Frequency range20 Hz - 20 kHz
Frequency range, ±2 dB, at 30 cm (11.8 in)40 Hz - 18 kHz
Sensitivity, nominal, ±2 dB at 1 kHz12 mV/Pa; -38.4 dB re. 1 V/Pa
Equivalent noise level, A-weightedTyp. 16 dB(A) re. 20 µPa (max. 19 dB(A))
Equivalent noise level, ITU-R BS.468-4Typ. 23 dB (correct with the attenuator in 0 dB or -20 dB setting)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)Typ. 78 dB(A)
Total harmonic distortion (THD)< 1% up to 137 dB SPL peak
Dynamic rangeTyp. 121 dB
Max. SPL, peak before clipping156 dB
Switchable attenuator, filters etc.0 dB / -20 dB
Output impedance 200 Ω
Minimum load impedance2 kΩ
Cable drive capability100 m (328 ft)
Output balance principleImpedance balancing with Active Drive
Common mode rejection ratio (CMRR)> 60 dB
Power supply (for full performance)48 V Phantom power (± 4 V)
Current consumption2.8 mA
ConnectorXLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
ColorMatte black
Weight158 g (5.6 oz)
Microphone diameter19 mm (0.75 in)
Capsule diameter19 mm (0.75 in)
Microphone length170 mm (6.7 in)
Maximum output voltage, RMS8 V
Polarity+V at pin 2 for positive sound pressure
Temperature range-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)Up to 90%
Matching tolerance (frequency response and sensitivity)±1 dB
Phase deviation for kit< 10°

Sku: 4018A
Vendor: DPA
