DPA d:dicate™ 4090 Omni Mic, Norm SPL, P48

Product Description
$499.00
Maximum quantity available reached.

4090 OMNIDIRECTIONAL MICROPHONE, HI-SENS, P48

The d:screet™ 4090 Omnidirectional Microphone, Hi-Sens, P48 is a high-quality omnidirectional condenser microphone. Due to its uniquely natural and open sound, the 4090 is suitable for instrument-miking applications in the studio or on the stage.
With 134 dB SPL handling, this microphone can be used with essentially any instrument from acoustic guitar and strings to piano and wind instruments. Due to their remarkably linear frequency response in the 20 Hz to 20 kHz range, sound system engineers can also use these mics for sound system alignment, testing and tuning.

The rugged and compact design features a 5.4 mm (.21 in) diameter pre-polarized condenser capsule in a tapered body measuring just 12 cm (4.76 in).

Features

The product offers the following features
Natural and open sound
For instrument-miking in the studio or on the stage
For acoustic guitar, strings, piano and wind instruments

Specifications
d:screet™ Miniature Microphones 4090 OMNIDIRECTIONAL MICROPHONE, HI-SENS, P48

Directional patternOmnidirectional
Principle of operationPressure
Cartridge typePre-polarized condenser
Frequency range20 Hz - 20 kHz

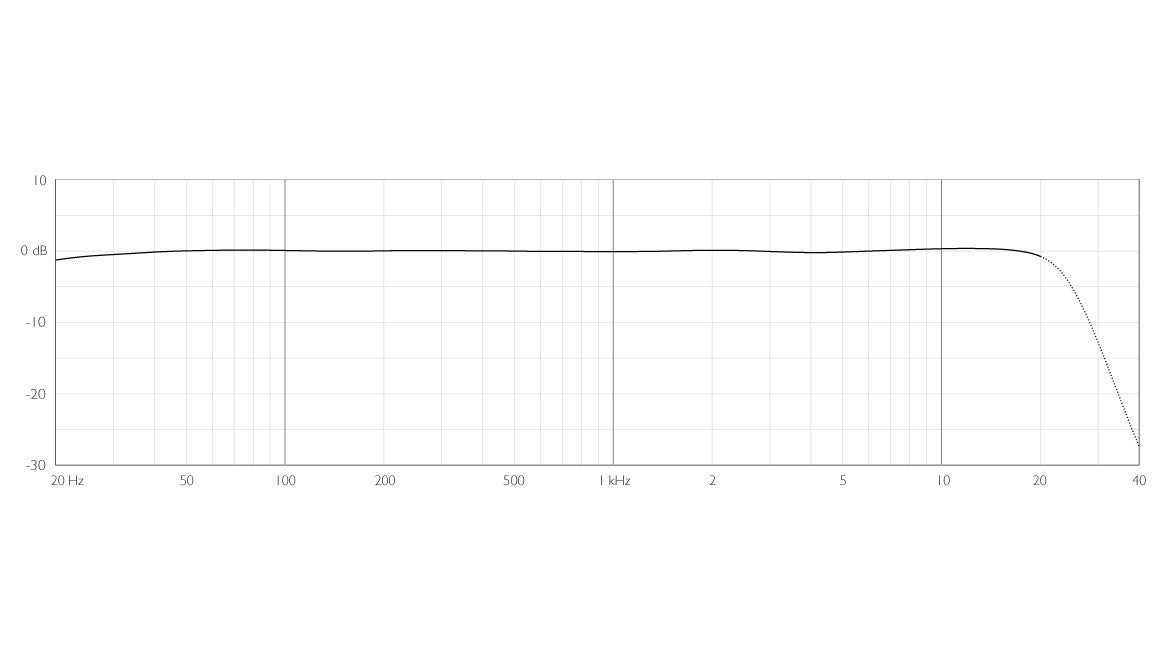

Frequency range, ±2 dB20 Hz - 20 kHz
Sensitivity, nominal, ±3 dB at 1 kHz20 mV/Pa; -34 dB re. 1 V/Pa
Equivalent noise level, A-weightedTyp. 23 dB(A) re. 20 µPa (max. 26 dB(A))
Equivalent noise level, ITU-R BS.468-4Typ. 35 dB (max. 38 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)Typ. 71 dB(A)
Total harmonic distortion (THD)< 1% up to 123 dB SPL peak
Dynamic rangeTyp. 100 dB
Max. SPL, peak before clipping134 dB
Output impedance< 40 Ω
Cable drive capabilityUp to 300 m (984 ft)
Output balance principleImpedance balanced
Common mode rejection ratio (CMRR)> 40 dB
Power supply (for full performance)48 V Phantom power +/- 4 V
Current consumption2 mA
ConnectorColor:
ColorBlack
Weight38 g (1.34 oz)
Microphone diameter19 mm (0.75 in); at tip 6.7 mm (0.26 in)
Microphone length122 mm (4.8 in)
Polarity+V at pin 2 for positive sound pressure
Temperature range-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)Up to 90%

Sku: 4090
Vendor: DPA
