DPA d:dicate™ 2006C Stereo Pair with Clips and Windscreens in Peli Case

Product Description
$1,555.00
Maximum quantity available reached.

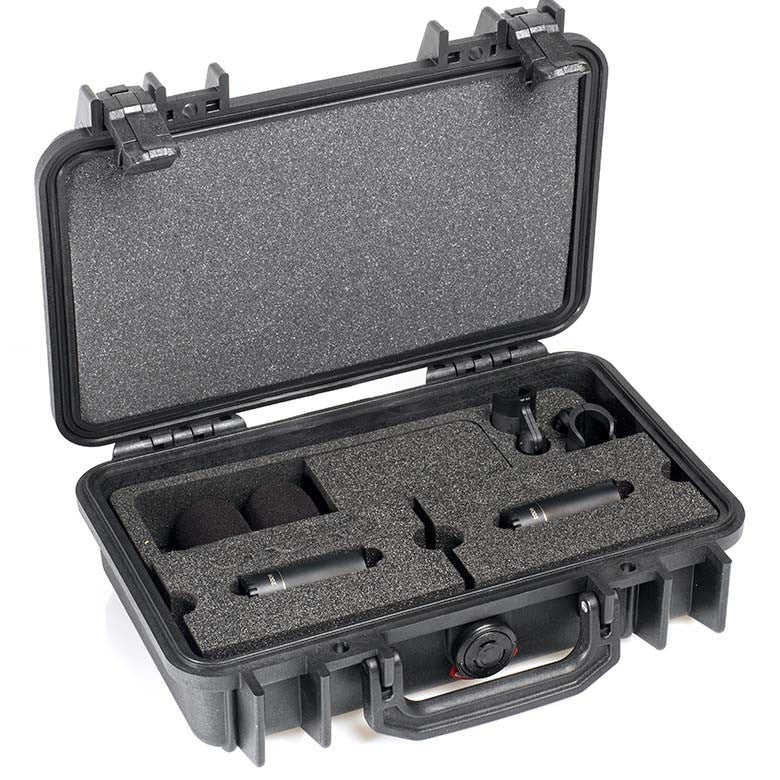

ST2006C STEREO PAIR WITH TWO 2006C, CLIPS AND WINDSCREENS IN PELI™ CASE

A complete stereo pair; two handpicked omnidirectional condenser microphones, selected on sensitivity within ±1.5 dB. Small, lightweight and inconspicuous main AB stereo pair.
The mics deliver precise sound and true tone. Meeting classic architecture and installation requirements, these mics can be mounted, hung or concealed to create clean, transparent recordings.

This condenser mic bridges the gap between the extreme sound quality of the d:dicate™ Microphones series and our well-known Miniature Microphones in the d:screet™ and d:fine™ series.

The microphone capsule

Inside this capsule, two opposite-facing miniature capsules are custom rebuilt. They are placed into a double-diaphragm, one-capsule composition. This combines the advantages of small capsules with the lower inherent noise achieved from a larger diaphragm area. These capsules provide fast impulse response and large frequency bandwidth.

The capsules are loaded to the supreme d:dicate™ Microphone series preamplifiers instead of the tiny miniature FET ones. This gives the sound more air and precision.

Comparisons with its big brother, the iconic MMC4006 capsule, are inevitable. The relationship between the two can be clearly heard. The MMC2000 series performs as well as more exclusive microphones. It is a premium-class mic capsule and redefines the term value for money.

A truly flexible range

The d:dicate™ 2006C Twin Diaphragm Cardioid Microphone, Compact is part of the flexible d:dicate™ Microphones Series. It combines the MMC2006 Twin Diaphragm Cardioid Capsule with the MMP-C compact preamplifier. This combination offers a subtle character alteration with a bit more “body” to the low end than the d:dicate™ 2006A Twin Diaphragm Cardioid Microphone. It is also much easier to position than other cardioid mics.

Another option, for the true audiophile, is the d:dicate™ 2006A Twin Diaphragm Cardioid Microphone. It offers low distortion and totally accurate and faithful sound.

At any time, and with no tools needed, it is possible to transform the d:dicate™ 2006C Twin Diaphragm Cardioid Microphone, Compact into a new configuration. You can combine it with another d:dicate™ or d:facto™ Microphone Capsule or Preamplifier.
Features

The product offers the following features
Sensitivity-selected pair
Acoustic authenticity
Linear in a large frequency bandwidth
Twin diaphragm capsule
Modular flexibility
Peli™ Case transportation and protection

Specifications
d:dicate™ Recording Microphones ST2006C STEREO PAIR WITH TWO 2006C, CLIPS AND WINDSCREENS IN PELI™ CASE

Directional patternOmnidirectional
Principle of operationPressure
Cartridge typePre-polarized condenser, Twin Diaphragm Capsule
Frequency range20 Hz - 20 kHz

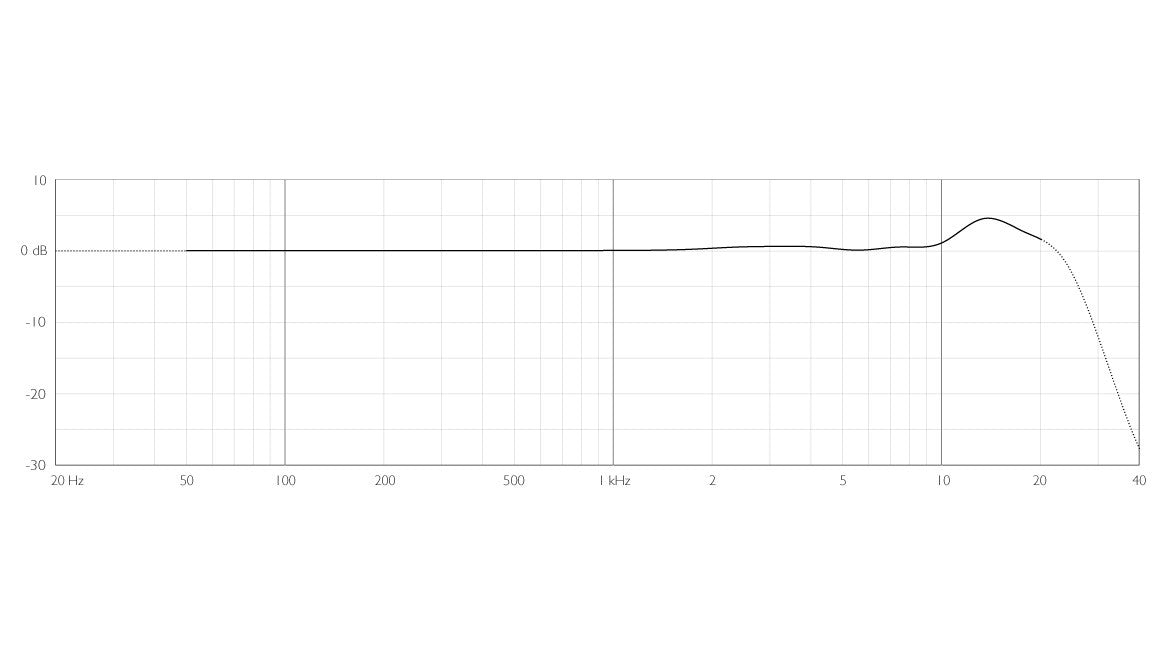

Frequency range, ±2 dB50 Hz - 20 kHz with typ. 3 dB soft boost at 14 kHz
Sensitivity, nominal, ±2 dB at 1 kHz40 mV/Pa; -28 dB re. 1 V/Pa
Equivalent noise level, A-weightedTyp. 16 dB(A) re. 20 µPa (max. 18 dB(A))
Equivalent noise level, ITU-R BS.468-4Typ. 28 dB (max. 30 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)Typ. 78 dB(A)
Total harmonic distortion (THD)< 1% up to 130 dB SPL peak
Dynamic rangeTyp. 114 dB
Max. SPL, peak before clipping139 dB
Output impedance100 Ω
Minimum load impedance2 kΩ
Cable drive capability100 m (328 ft)
Output balance principleImpedance balancing with Active Drive
Common mode rejection ratio (CMRR)> 50 dB
Power supply (for full performance)48 V Phantom power (± 4 V)
Current consumption2.8 mA
ConnectorXLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
ColorMatte black
Weight60 g (2.1 oz)
Microphone diameter19 mm (0.75 in)
Microphone length58 mm (2.3 in)
Maximum output voltage, RMS4.5 V
Polarity+V at pin 2 for positive sound pressure
Temperature range-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)Up to 90%



Sku: ST2006C
Vendor: DPA
