DPA d:dicate™ 4006C Stereo Pair with Clips and Windscreens in Peli Case

Product Description
$3,888.00
Maximum quantity available reached.

ST4006C STEREO PAIR WITH TWO 4006C, CLIPS AND WINDSCREENS IN PELI™ CASE

Whenever a small, lightweight, inconspicuous microphone for top-quality recording is required, a d:dicate™ 4006C Microphone is the right choice. They come as a hand-matched pair that offers the truest capture of stereo sound available.
Even though the standard tolerances on our d:dicate™ microphones are extremely low, a stereo match is even closer. These specially selected d:dicate™ 4006C microphones are matched within ±0.5 dB on both frequency response and sensitivity.

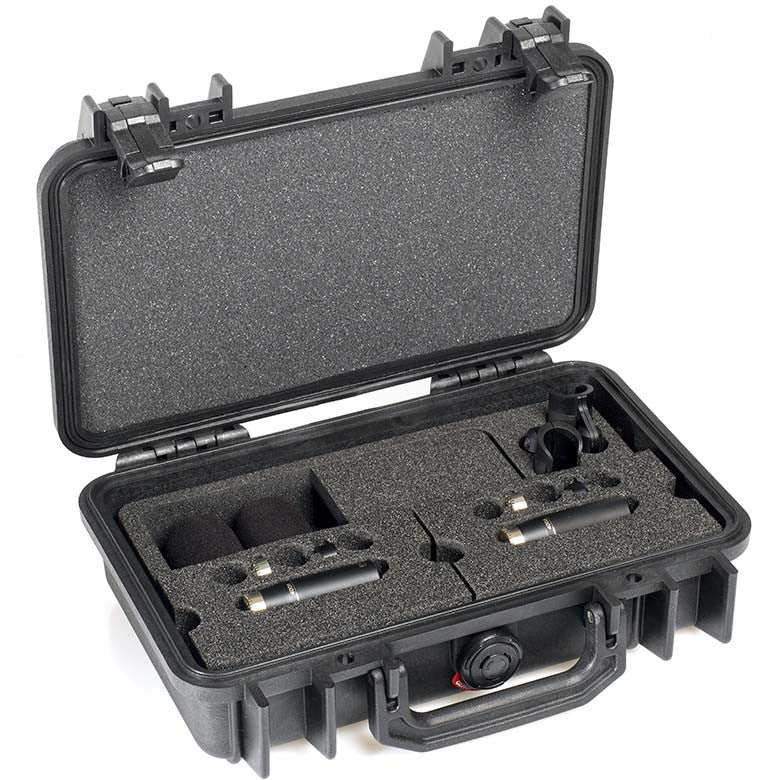

The pair comes in a heavy-duty Peli™ Case for safe transportation and easy access to the microphones and accessories.

The mic capsule

The MMC4006 Omnidirectional Microphone Capsule offers total transparency in any recording situation. It picks up incredible detail and depth of sound. The definition of its high-frequency characteristics across a wide range of instruments is impressive. It offers natural sound, high sensitivity, low noise-floor and extremely linear frequency response from 10 to 20 kHz (±2 dB).

A selection of accessories is available, including acoustic pressure equalizers, a nose cone and interchangeable protection grids. These accessories can acoustically transform the mic. By changing grids, it is possible to gain several unique frequency responses and directional characteristics from the mic. Furthermore, these accessories will not produce any phase shift, noise or distortion that would otherwise be introduced by an electrical filter.

A truly flexible range

The d:dicate™ 4006C Omnidirectional Microphone, Compact is part of the flexible d:dicate™ Microphones Series. It combines the MMC4006 Omnidirectional Capsule with the MMP-C compact preamplifier. This combination offers a subtle character alteration with a bit more “body” to the low end than the d:dicate™ 4006A Omnidirectional Microphone.

Another option, for the true audiophile, is the d:dicate™ 4006A Omnidirectional Microphone. It offers low distortion and totally accurate and faithful sound.

At any time, and with no tools needed, it is possible to transform the d:dicate™ 4006C Omnidirectional Microphone, Compact into a new configuration. You can combine it with another d:dicate™ or d:facto™ Microphone Capsule or Preamplifier.

The d:dicate™ 4006C Omnidirectional Microphone, Compact is also available individually.

Features

The product offers the following features
Carefully matched microphones
Natural sound
High sensitivity
Low noise-floor
Extremely linear frequency
Sturdy Peli™ Case for transportation and protection

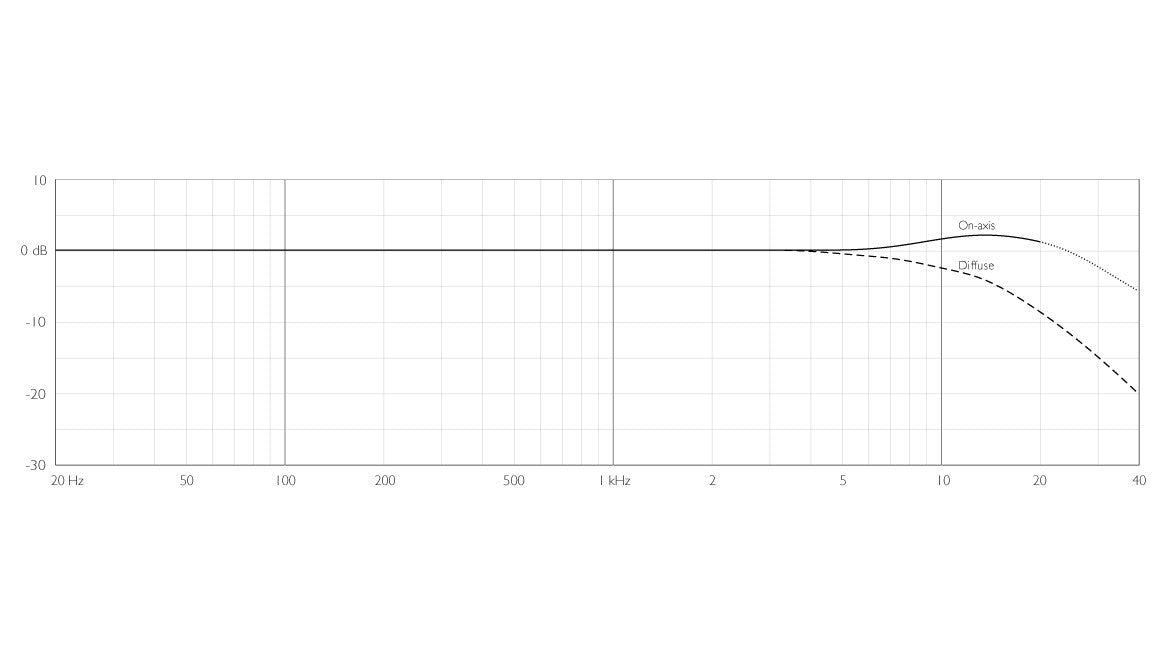

Frequency response with Free-field Grid
Frequency response with Close-miking Grid
Frequency response with Diffuse-field Grid
Frequency response with Nose Cone
Polar pattern with Free-field Grid
Polar pattern with Close-miking Grid
Polar pattern with Diffuse-field Grid
Polar pattern with Nose Cone
Polar pattern with Nose Cone - Vertical

Typical on and off-axis response of a 4006A

Specifications
d:dicate™ Recording Microphones ST4006C STEREO PAIR WITH TWO 4006C, CLIPS AND WINDSCREENS IN PELI™ CASE

Directional patternOmnidirectional
Principle of operationPressure
Cartridge typePre-polarized condenser
Frequency range10 Hz - 20 kHz
Frequency range, ±2 dB20 Hz - 20 kHz
Sensitivity, nominal, ±2 dB at 250 Hz40 mV/Pa; -28 dB re. 1 V/Pa
Equivalent noise level, A-weightedTyp. 15 dB(A) re. 20 µPa (max. 17 dB(A))
Equivalent noise level, ITU-R BS.468-4Typ. 27 dB (max. 29 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)Typ. 79 dB(A)
Total harmonic distortion (THD)< 1% up to 134 dB SPL peak
Dynamic rangeTyp. 119 dB
Max. SPL, peak before clipping139 dB
Output impedance100 Ω
Minimum load impedance2 kΩ
Cable drive capability100 m (328 ft)
Output balance principleImpedance balancing with Active Drive
Common mode rejection ratio (CMRR)> 50 dB
Power supply (for full performance)48 V Phantom power (± 4 V)
Current consumption2.8 mA
ConnectorXLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
ColorMatte black
Weight63 g (2.2 oz)
Microphone diameter16 - 19 mm (0.6 - 0.75 in)
Capsule diameter16 mm (0.6 in)
Microphone length64 mm (2.5 in)
Maximum output voltage, RMS4.5 V
Polarity+V at pin 2 for positive sound pressure
Temperature range-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)Up to 90%
Matching tolerance (frequency response and sensitivity)±0.5 dB
Phase deviation for kit< 5°

Sku: ST4006C
Vendor: DPA
