DPA d:dicate™ 2011A Stereo Pair with Clips and Windscreens in Peli Case

ST2011A STEREO PAIR WITH TWO 2011A, CLIPS AND WINDSCREENS IN PELI™ CASE

A complete stereo pair; two handpicked cardioid condenser microphones, selected on sensitivity within ±1.5 dB. Makes several stereo principles like XY and ORTF easy to obtain.
These mics are acclaimed for their close-miking excellence and hi-SPL handling. Optimized for onstage use, it has been used on many stages as well as recording sessions. They exhibit a previously unheard blend of clarity, richness and dynamic range. The off-axis response is linear but in a smaller frequency bandwidth. This makes stage separation and gain-to-feedback higher. The mic level is easier to control.

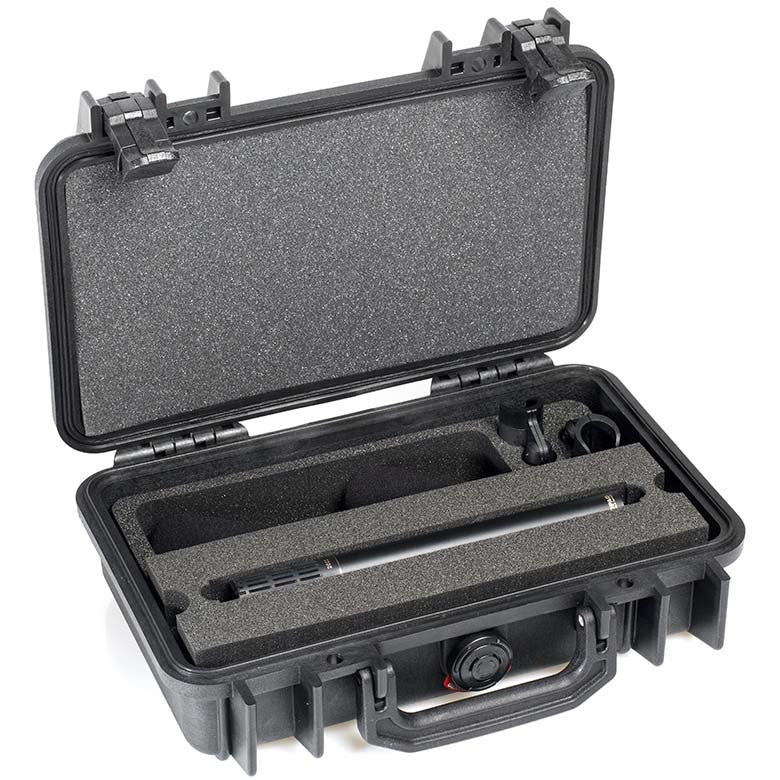

The foam design in the heavy-duty transportation box allows for fast and easy exchange of the microphone/accessory inlays.

The microphone capsule

Inside this capsule, two opposite-facing miniature capsules are custom rebuilt. They are placed into a double-diaphragm, one-capsule composition. This combines the advantages of small capsules with the lower inherent noise achieved from a larger diaphragm area. These capsules provide fast impulse response and large frequency bandwidth.

The capsules are loaded to the supreme d:dicate™ Microphone series preamplifiers instead of the tiny miniature FET ones. This gives the sound more air and precision.

Comparisons with its big brother, the iconic MMC4011 capsule, are inevitable. The relationship between the two can be clearly heard. The MMC2000 series performs as well as more exclusive microphones. It is a premium-class mic capsule and redefines the term value for money.

Please read this note about the acoustic center of the d:dicate™ MMC2011 Twin Diaphragm Cardioid Microphone Capsule.

A truly flexible range

The d:dicate™ 2011A Twin Diaphragm Cardioid Microphone is part of the flexible d:dicate™ Microphones Series. It combines the d:dicate™ MMC2011 Twin Diaphragm Cardioid Microphone Capsule with the MMP-A preamplifier. This combination is for the true audiophile. It offers low distortion and totally accurate and faithful sound.

Another option, the d:dicate™ 2011C Twin Diaphragm Cardioid Microphone, Compact offers a subtle character alteration with a bit more “body” to the low end than the d:dicate™ 2011A Twin Diaphragm Cardioid Microphone.

At any time, and with no tools needed, it is possible to transform the d:dicate™ 2011A Twin Diaphragm Cardioid Microphone into a new configuration. You can combine it with another d:dicate™ or d:facto™ Microphone Capsule or Preamplifier.

Features

The product offers the following features
Sensitivity-selected pair
Blends clarity, richness and dynamics
Twin diaphragm capsule and interference tube technologies
Superb stage separation and level control
Low-profile mounting options
Modular flexibility
Peli™ Case transportation and protection

Specifications
d:dicate™ Recording Microphones ST2011A STEREO PAIR WITH TWO 2011A, CLIPS AND WINDSCREENS IN PELI™ CASE

Directional patternCardioid
Principle of operationPressure gradient, with interference tube
Cartridge typePre-polarized condenser, Twin Diaphragm Capsule
Frequency range20 Hz - 20 kHz
Frequency range, ±2 dB, at 30 cm (11.8 in)50 Hz - 17 kHz with 3 dB soft boost at 12 kHz
Sensitivity, nominal, ±2 dB at 1 kHz10 mV/Pa; -40 dB re. 1 V/Pa
Equivalent noise level, A-weightedTyp. 20 dB(A) re. 20 µPa (max. 23 dB(A))
Equivalent noise level, ITU-R BS.468-4Typ. 33 dB (max. 36 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)Typ. 74 dB(A)
Total harmonic distortion (THD)< 1% up to 137 dB SPL peak
Dynamic rangeTyp. 117 dB
Max. SPL, peak before clipping153 dB
Switchable attenuator, filters etc.0 dB / -20 dB
Output impedance200 Ω
Minimum load impedance2 kΩ
Cable drive capability100 m (328 ft)
Output balance principleImpedance balancing with Active Drive
Common mode rejection ratio (CMRR)> 60 dB
Power supply (for full performance)48 V Phantom power (± 4 V)
Current consumption2.8 mA
ConnectorXLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
ColorMatte black
Weight164 g (5.8 oz)
Microphone diameter19 mm (0.75 in)
Microphone length198 mm (7.8 in)
Maximum output voltage, RMS> 5 V
Polarity+V at pin 2 for positive sound pressure
Temperature range-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)Up to 90%
