Flux Pure Analyzer Essential

The Flux Pure Analyzer System is ITU-R BS.1770 / EBU R128 Compliant and is a network-driven modular RTA-system providing an extensive range of analyzer options for any imaginable audio analysis and measurement applications. As a complement to
the Pure Analyzer Essential, three different add-on modules, all providing specific tools for their actual field of usage, are currently available. In order to use any of the add-on modules, the Pure Analyzer Essential is required.

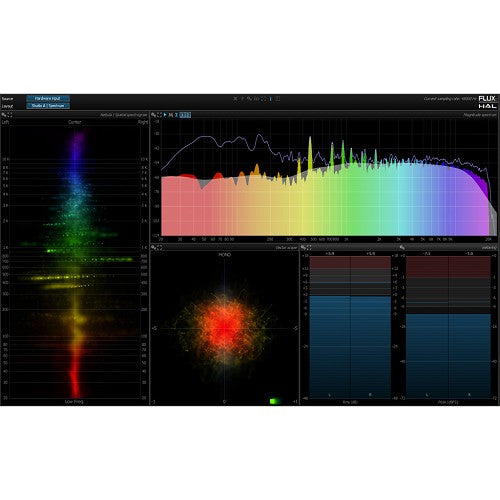

For maximum flexibility and efficiency, Pure Analyzer presents the option to separate the signal acquisition from the analysis utilizing a Sample grabber plug-in, and in addition to the Sample grabber plug-in, Pure Analyzer also provide I/O support for ASIO and Core Audio. The foundation of the Pure Analyzer System is a standalone application, Pure Analyzer Essential, which can be extended with modules for Live, Metering/Loudness and Surround analysis, performing the graphic analysis rendering using a GPU-efficient 2D/3D graphic engine. The engine is based on the OpenGL standard optimizing the audio-to-visual experience utilizing the GPU on the built in graphics card. The Pure Analyzer Essential application receives the sample feeds from the Sample grabber and analyzes them in real time. The Pure Analyzer provides the option to
receive data from several different Sample grabber plug-ins on the network, and analyze the received data in parallel by selecting the actual corresponding Sample grabber to be the current source for the analysis with a simple button click. In addition to this, the input streams from the physical ASIO/Core Audio I/O can also be selected as the current source for the analysis in the same simplistic fashion.

Pure Analyzer Essential features:

  •     Mono and Stereo analysis
  •     Sample rates up to 384 KHz
  •     Network support with the SampleGrabber plug-in
  •     OpenGL based graphics rendering engine, capable of up to 120 fps
  •     Independent display and time-code frame rates
  •     Auto-pause controlled by user-defined threshold
  •     Peak/RMS/Phase
  •     Adjustable ballistics
  •     Filter-weighting: ITU-R BS.1770-2 (K-weighting), ANSI A,B,C
  •     Real-time spectrum analyzer in Standard FFT or  Flux-Display
  •     Block size up to 64 K
  •     Analysis in rectangular,Barlett,Blackman,Hamming,Hann
  •     Numerous further resolution -and display-modes
  •     Spectrogram with adjustable color scales
  •     Vector Scope with numerous parameters
  •     Flux Nebula stereo display
  •     Oscilloscope

Available add-on modules are (optional):

  •     Pure Analyzer Metering
  •     Pure Analyzer Live
  •     Pure Analyzer Multichannel


  •     free user account at www.ilok.com required
  •     free USB port on your Mac or PC
  •     Internet connection
  •     iLok compatible software product

Product activation
This Instrument requires an iLok Key!
This USB protection device is not included in the box of this collection, it is a separate item you have to buy additionally. So you’ll have to order at least one iLok Key with your first purchase. It will be put inside the shopping basket automatically but can be deleted if not required. If you already own another iLok protection device you can use it for this instrument, too. Each iLok dongle can store up to 100 product licenses, the new iLok2 even up to 500 licenses. Licenses can be manged easily using the iLok Licence Manager and for protection against theft or loss we recommend you the Zero Downtime Protection with TLC
Additionally an internet connection on any computer and a free user-accout at www.ilok.com is required to authorize the product.
