iCON Pro Audio | Cube Pro (ProDriveIII) USB audio interface

Product Description
$103.40
Maximum quantity available reached.

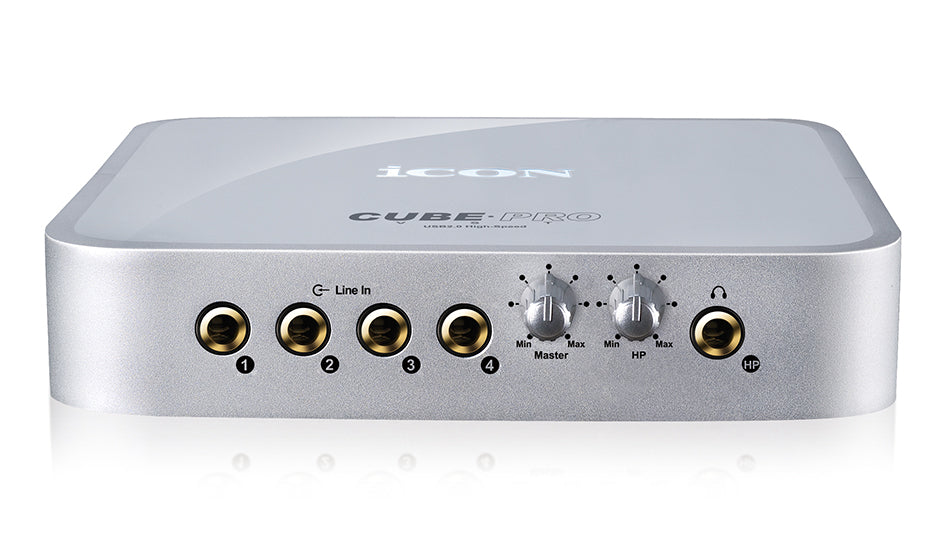

Cube Pro (ProDriveIII)

The iCON Cube Pro USB Audio interface provides 4 inputs and 4 outputs of hi resolution audio for your favorite DAW via USB 2.0 connectivity. And if you don’t already have a DAW, no worries. The Cube Pro ships with composing and recording software Bitwig Studio 8-Track included. Our own ProDriver software (also included) lets you redirect audio to any output from any source on your computer with it’s versatile virtual mixer. You can also host AU, VST, VST3 or Direct X plugins in standalone mode without a DAW. Save your plugin chains as presets and recall them later, or during your session.

Whether you decide to run it stand alone, or as the front end interface for your recording rig, the Cube Pro and bundled software give you many options to choose from.

Main features include:

  • 24-Bit 192KHz 4-In/4-Out USB Recording Interface
  • High dynamic range:
    DAC: Dynamic Range: 114dB
    ADC: Dynamic Range: 114dB
  • 4×4 analog I/O full duplex recording and playback
  • 4 analog inputs and 4 analog outputs on 1/4” TRS jacks
  • Master volume control on the front panel
  • 1 headphone output with assignable source and individual volume control
  • Flexible channel routing via the software control panel
  • Bitwig Studio 8-Track included
  • iCON’s innovative ProDriver virtual mixer and plug-in host is included
  • USB2.0 High Speed equipped and USB bus-powered
  • Supports DirectSound, WDM and ASIO2.0
  • Compatible with Mac OS (Intel-Mac), iOS 9 or above and Windows 7, 8 & 10 (32-bit/64-bit)
  • Full duplex, simultaneous record/playback
  • +5VDC power supply connector is equipped for external power supply when using with iOS
  • Rugged aluminum construction
  • Bitwig 8Track included
  • Dotec audio plugins included

Tech Specs:

Line Inputs 1-4(Unbanced):
Frequency Response 22Hz to 22kHz (+/-0.1dB)
Dynamic Range 112dB, A-weighted
Signal-to-Noise Ratio -112dB, A-weighted
THD+N -98dB
Crosstalk -97dB@1kHz
Nominal Input Level Unbalanced: +4dBV, typical;
Maximum Input level Unbalanced: +11dBV, typical;
Input Impedance 10K Ohms, typical
Line Outputs 1-4 (Unbanced):
Frequency Response 22Hz to 22kHz (+/-0.1dB)
Dynamic Range 112dB, A-weighted
Signal-to-Noise Ratio -112dB, A-weighted
THD+N -98dB
Crosstalk -97dB @ 1kHz
Nominal Output Level Unbalanced: +4dBV, typical;
Maximum Output level +11dBV, typical;
Output Impedance 150 Ohm
Load Impedance 600 Ohm minimum
Headphone Outputs: (at Maximum Volume; Into 100 Ohm load):
Frequency Response 22Hz to 22kHz (+/-1dB)
Power into Ohms 90 mW into 100 Ohms
THD+N <0.06% (-66dB)
Signal-to-Noise Ratio -90dB, A-weighted
Max Output Level into 100 Ohms +2.0dBV, typical
Output Impedance 75 Ohm
Load Impedance 32 to 600 Ohms
Weight 0.834 KG(1.84lb)
Dimensions 165mmx185mmx46mm
Dimensions 6.5"(L)x7.28"(W)x1.81"(H)
Sku: icubepro
