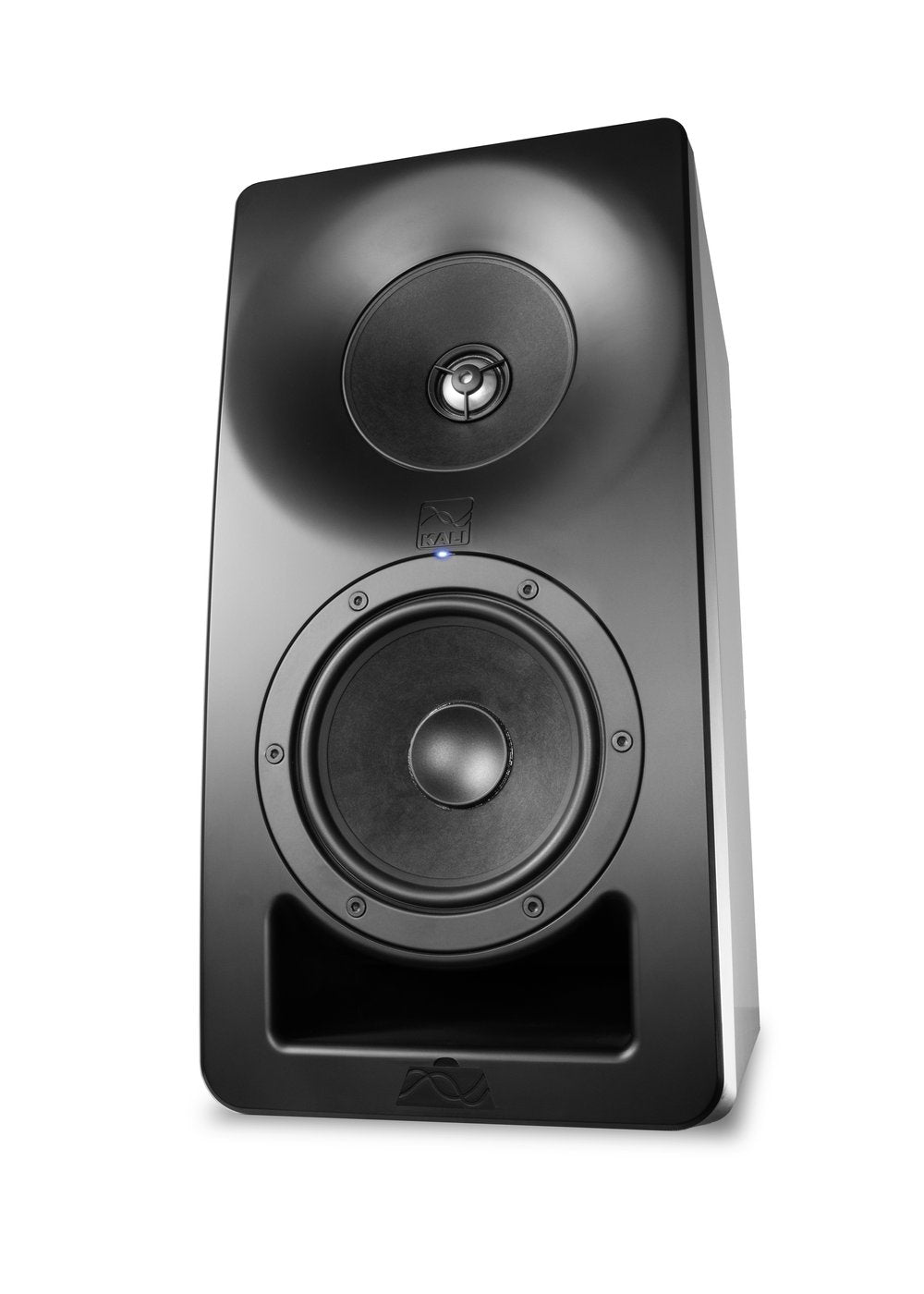

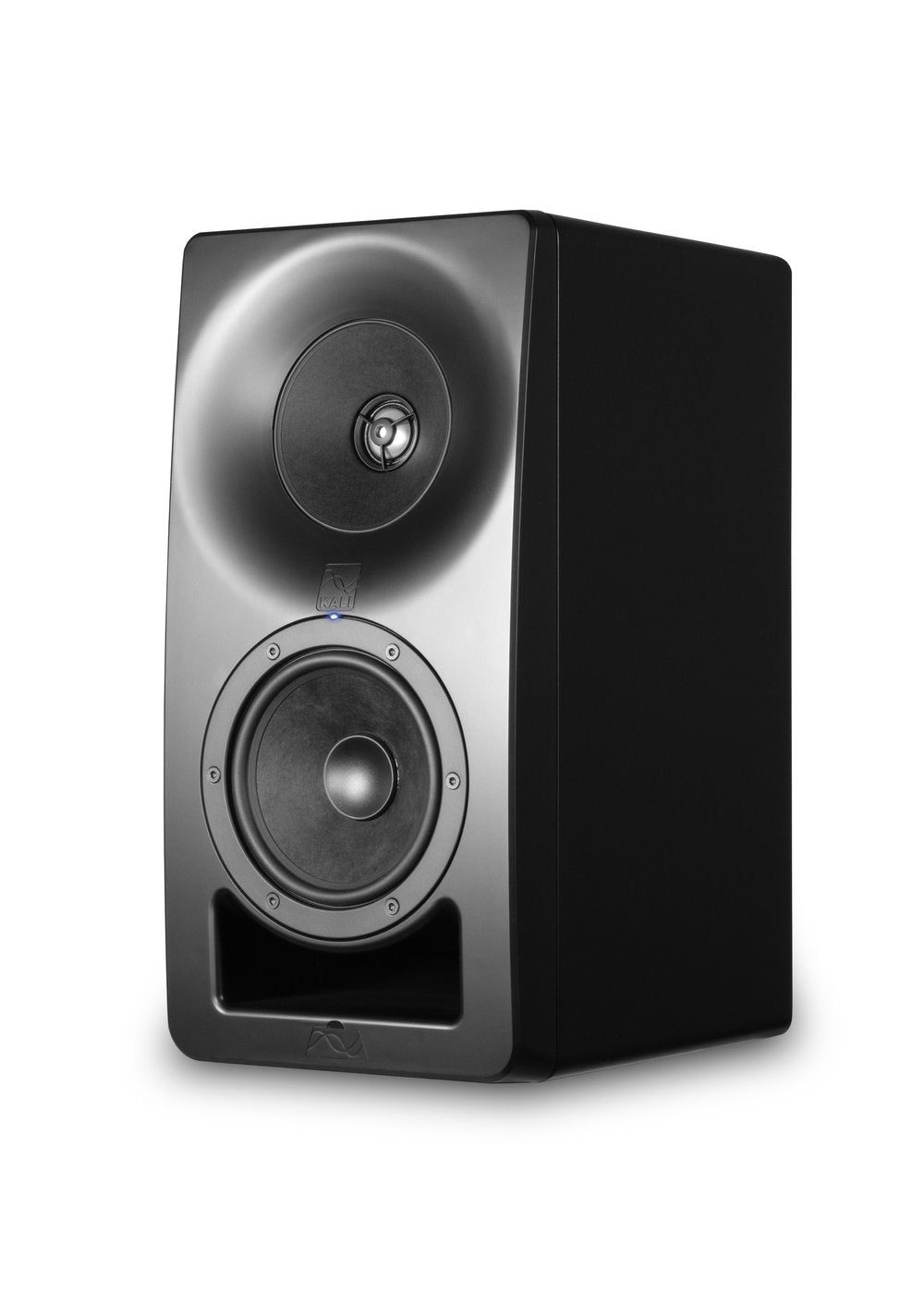

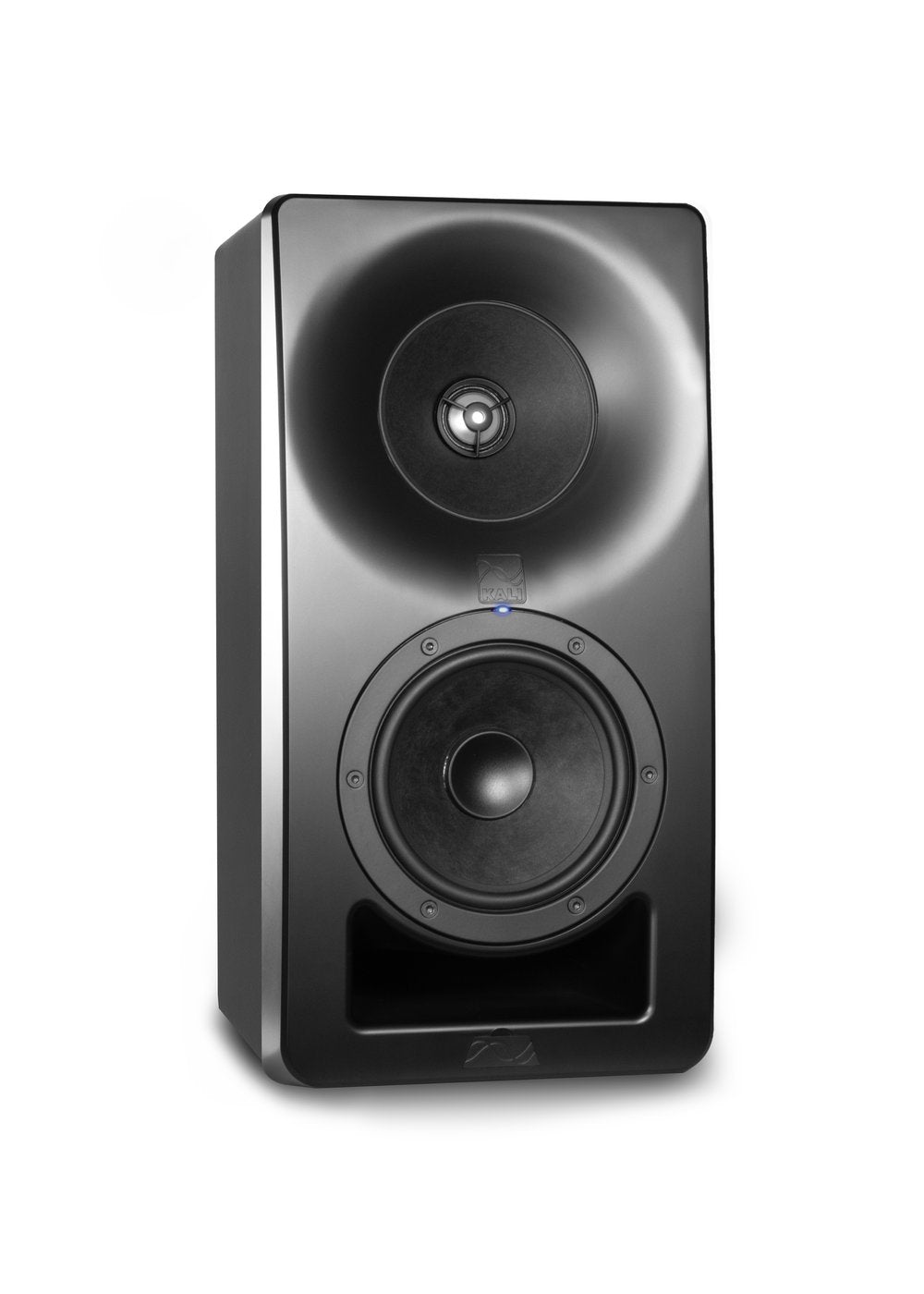

Kali Audio | SM-Series SM-5 5-inch Powered 3-way Studio Monitor

Kali’s Ultimate Speaker

Kali’s founding principle is to deliver the best possible product for the price. Our speakers have always been praised for their accuracy, translation, and ease of use. The SM-Series builds on these ideals, and incorporates the best available materials, components, and manufacturing.

The result is a high performance studio monitor that is ready for the most demanding mixing and mastering applications.

With onboard processing for room calibration, each speaker can be programmed with delays, trims, and EQs to deliver accurate response in your room.

ROOM CALIBRATION

The SM-5 gives users full control of 8 parametric EQs, delay up to 12ms, and loudspeaker trim. These parameters can be accessed and edited using our Kali Control Panel application, available for both Mac and Windows.

Importantly, since these parameters are processed by the same DSP hardware already in line, using user-defined DSP adds no additional latency to the system. Total digital latency is acceptably low to allow tracking using the SM-5s.

Onboard calibration removes the need for a dedicated room calibration processor. It also prevents some of the confusion and mishap that is possible with a plug-in based processor. Calibration is available for any source you could plug into the speaker, without needing to route it through software, and it will never be active on a mix you print.

Kali has fully documented our recommended room calibration procedures. When you perform the measurement yourself, we can provide room tuning files for a small fee per speaker.

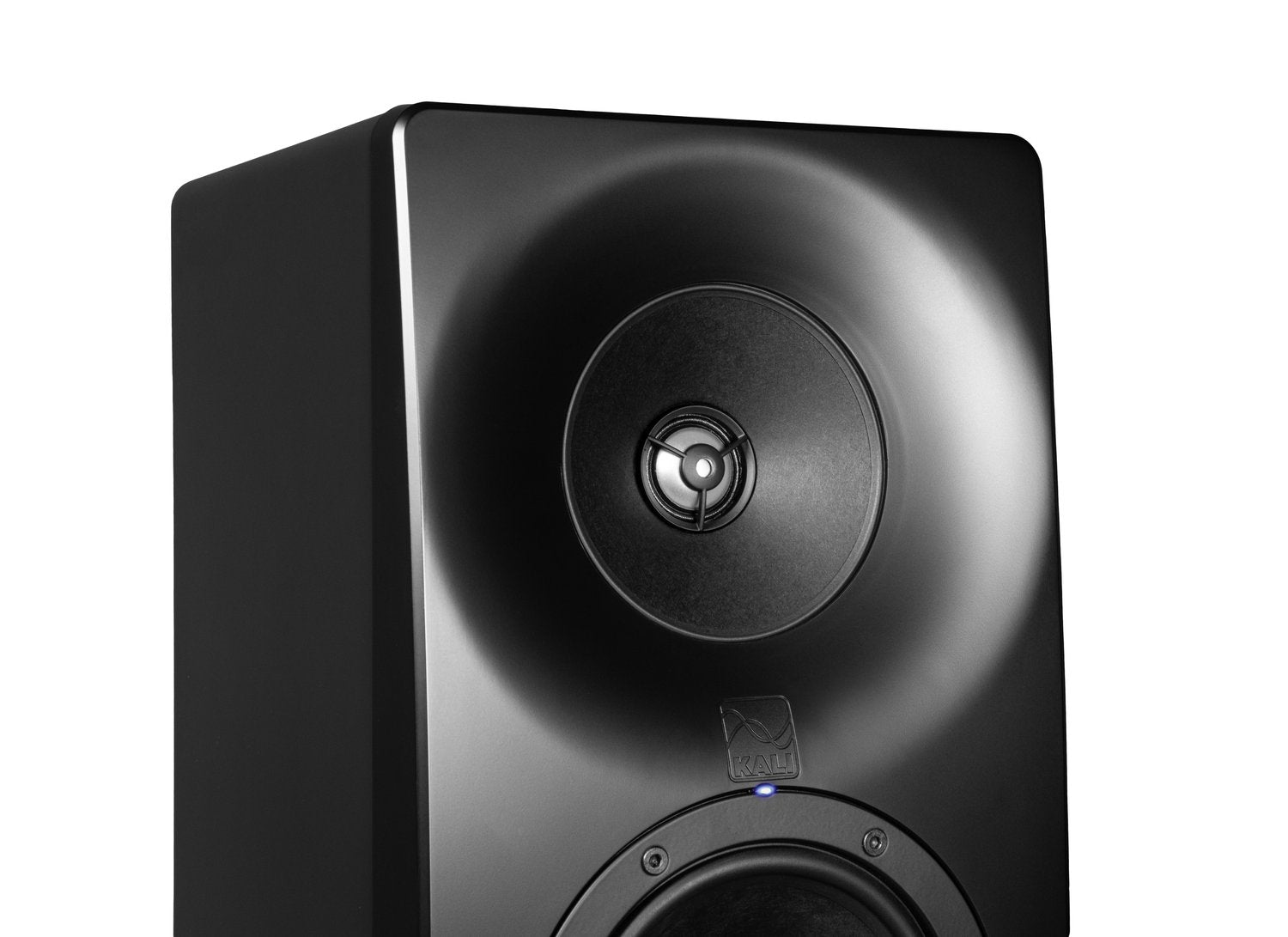

DRIVERS

EASE OF USE

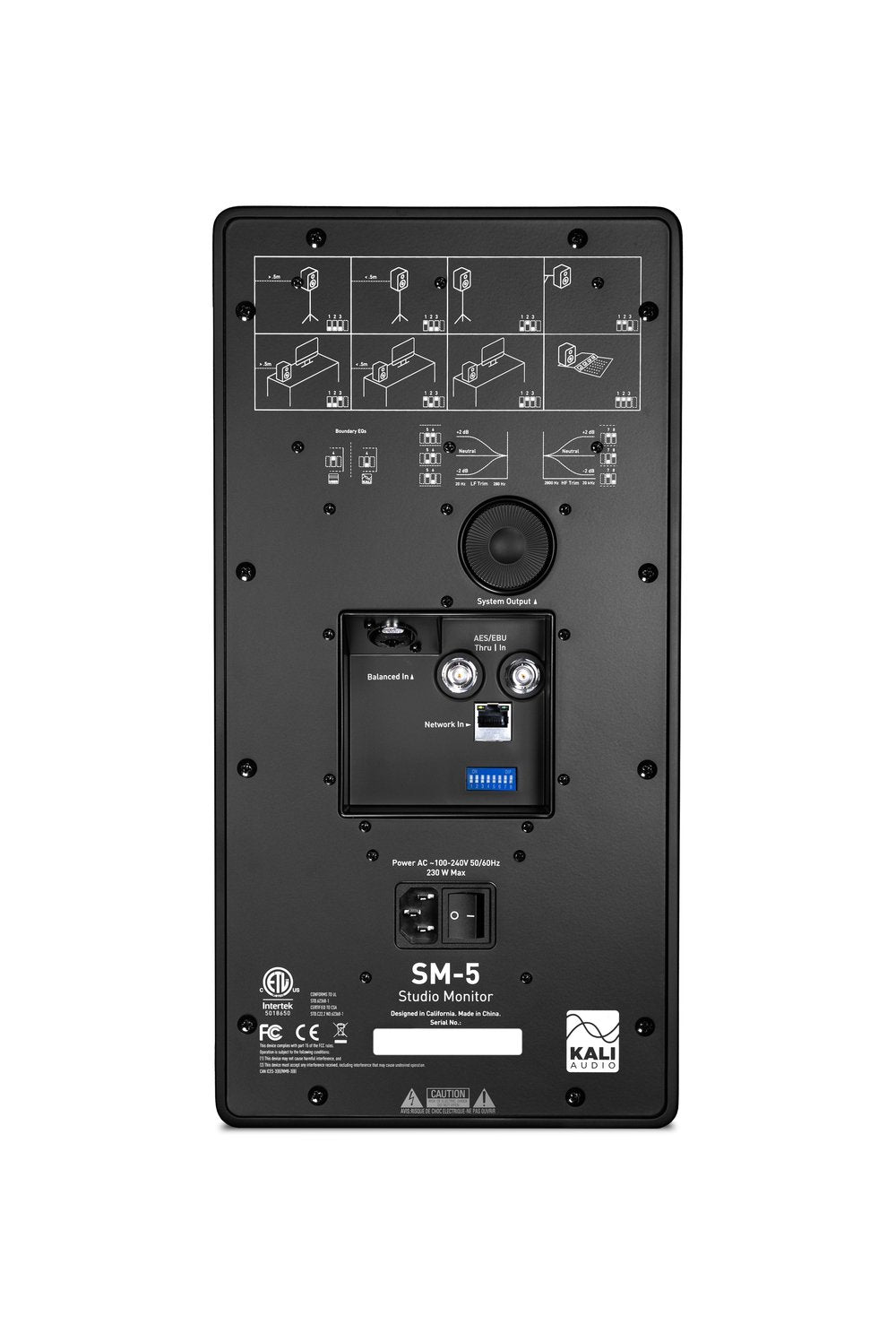

Recessed Input PanelThe SM-5’s input panel is recessed to allow for easier wall and ceiling mounting. It features inputs for XLR or TRS connectors, AES/EBU in and thru over BNC, and RJ45 (ethernet) for control.

The back of the speaker also features the trim wheel, which allows for precise 0.5 dB adjustments from -12 dB to +6 dB

Software

User-editable DSP is available using Kali Control Panel software, available for both Mac and Windows. You may find links to download the latest version below.

Kali Control Panel works in both Online Mode, meaning that each speaker is connected to a network with an ethernet cable, or Offline Mode, meaning that you can use a USB thumb drive to load files onto the speaker.

Kali Control Panel is currently in beta, and not all features may work as intended at this time.

Mounting

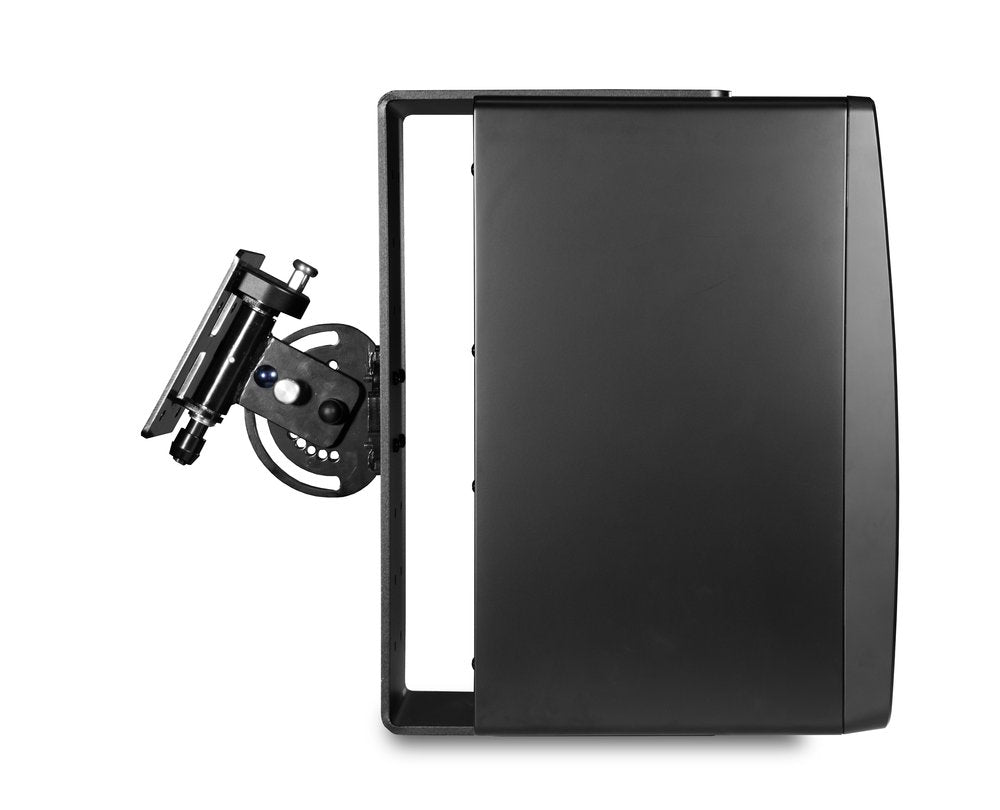

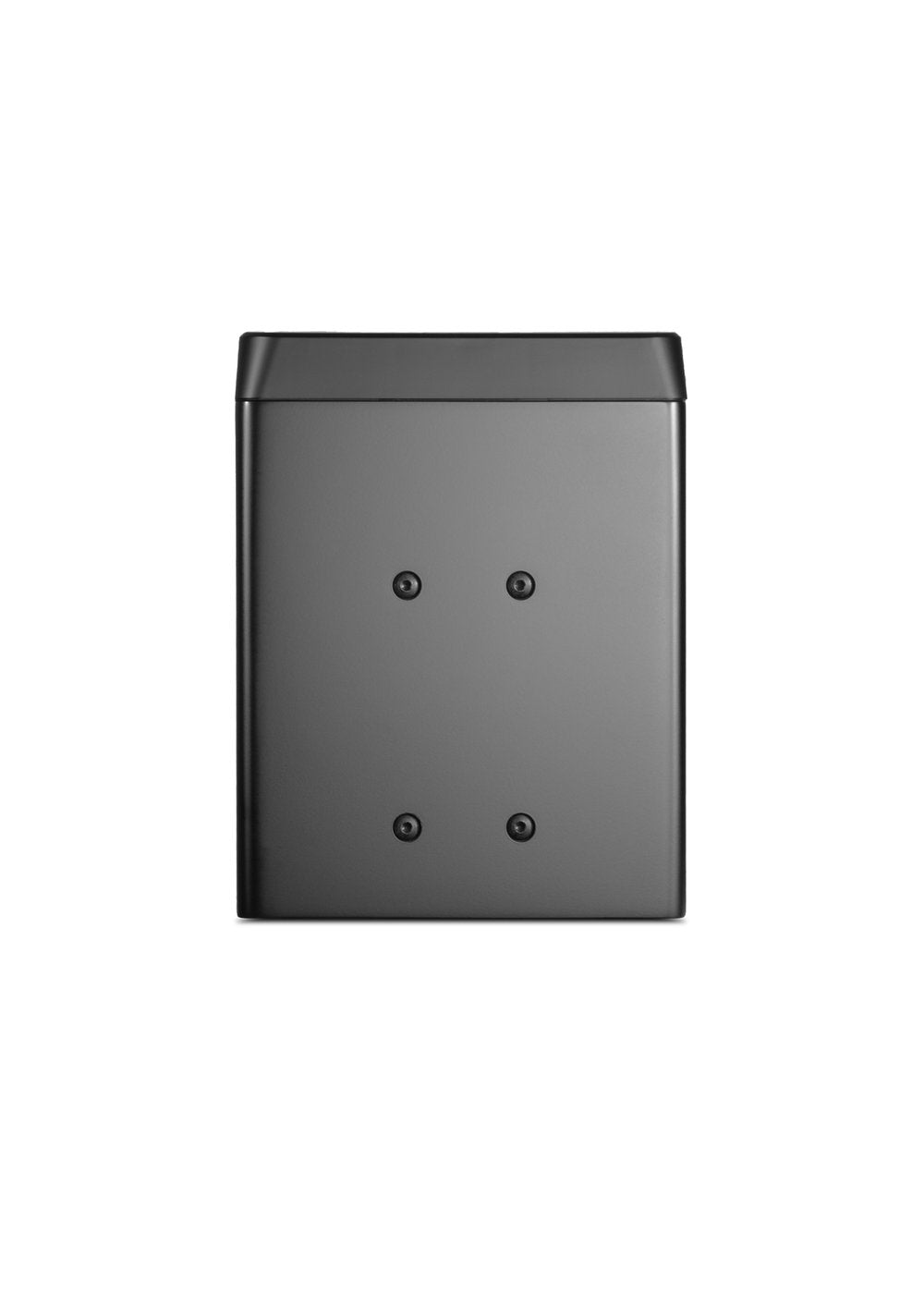

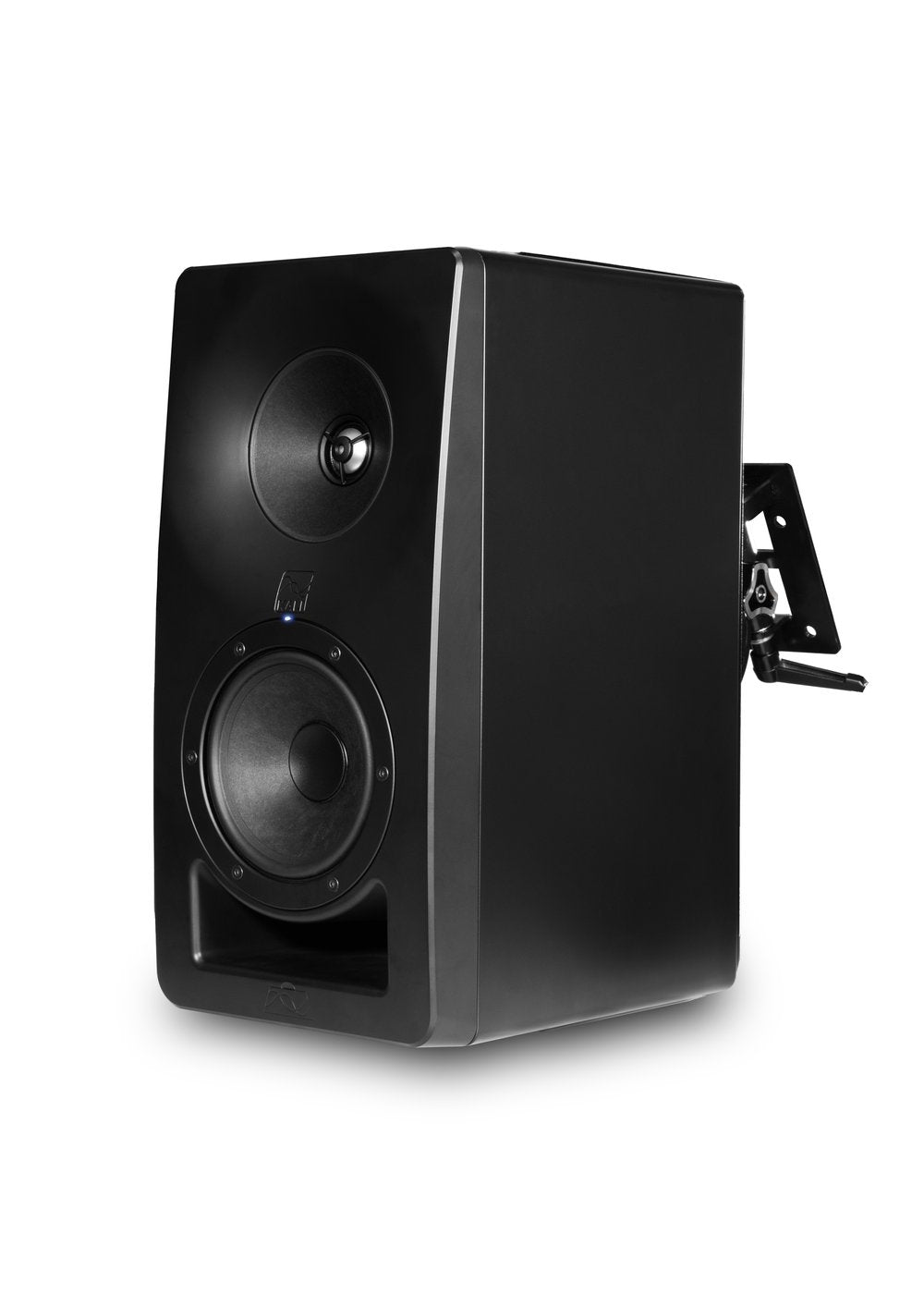

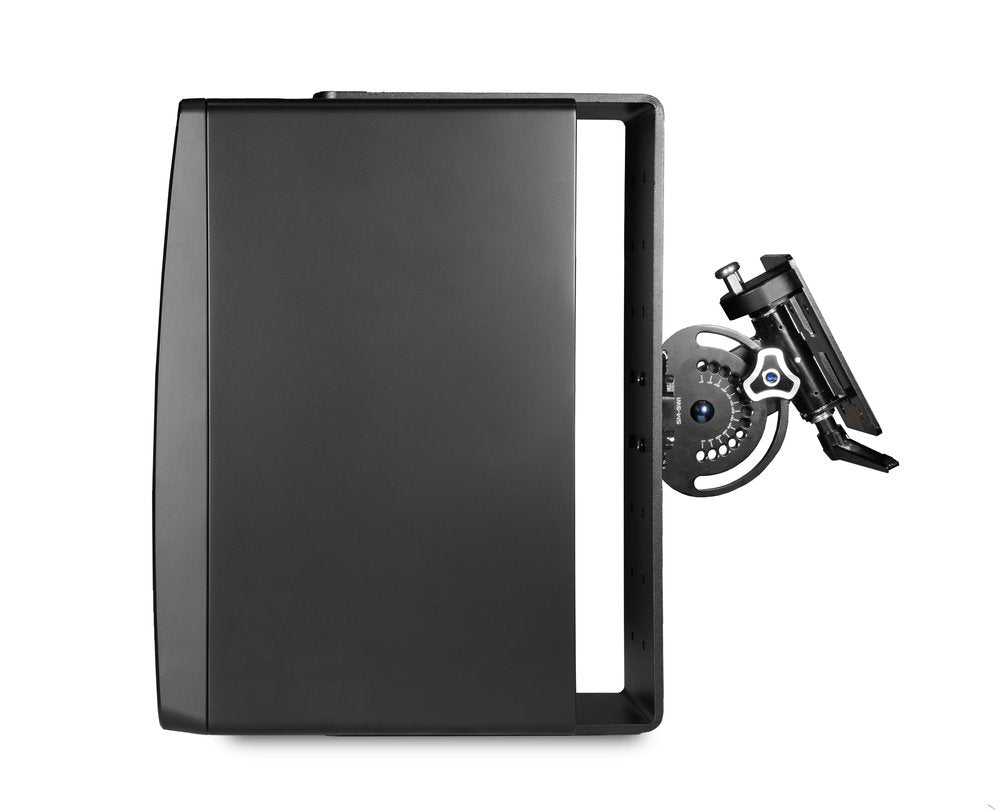

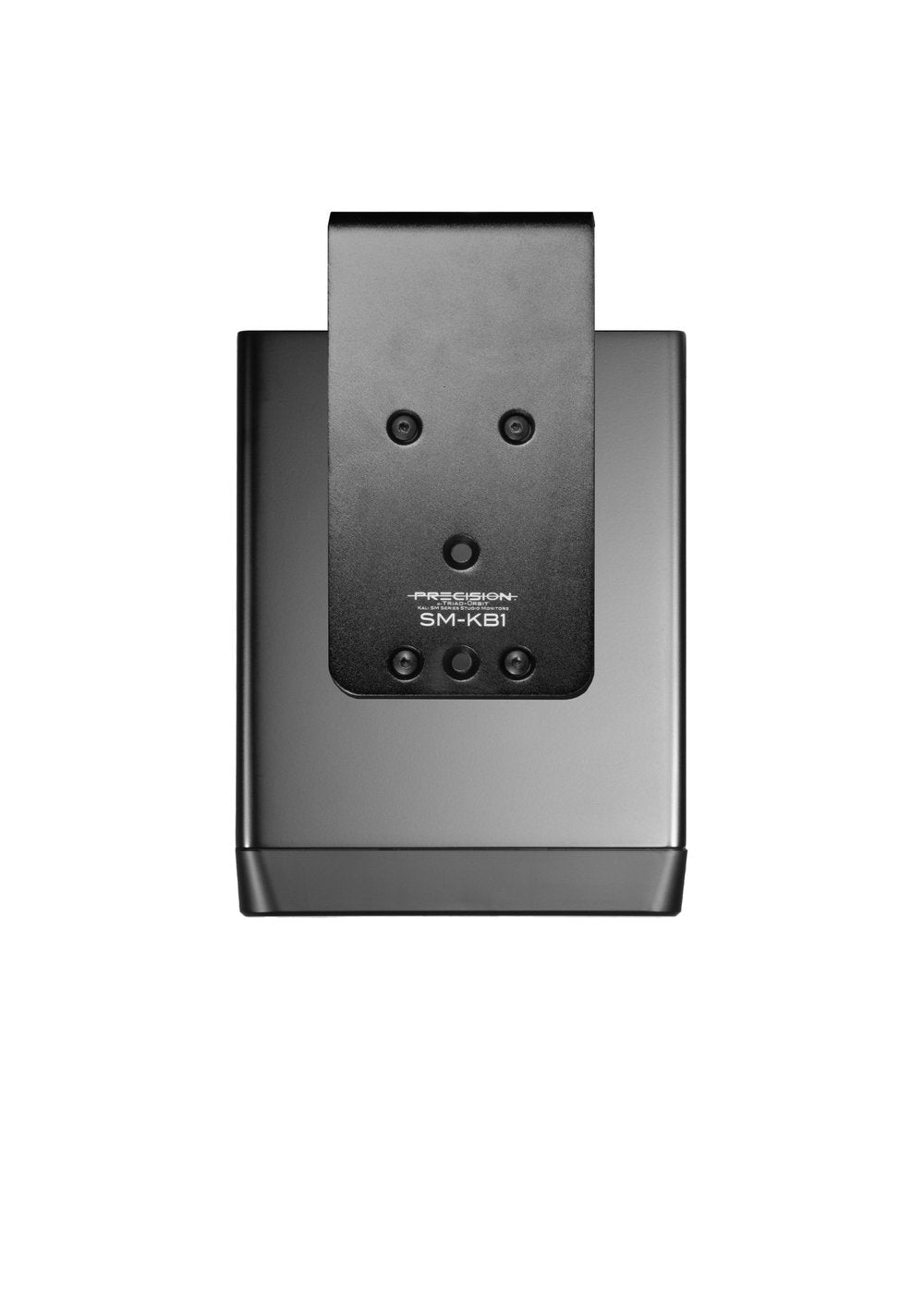

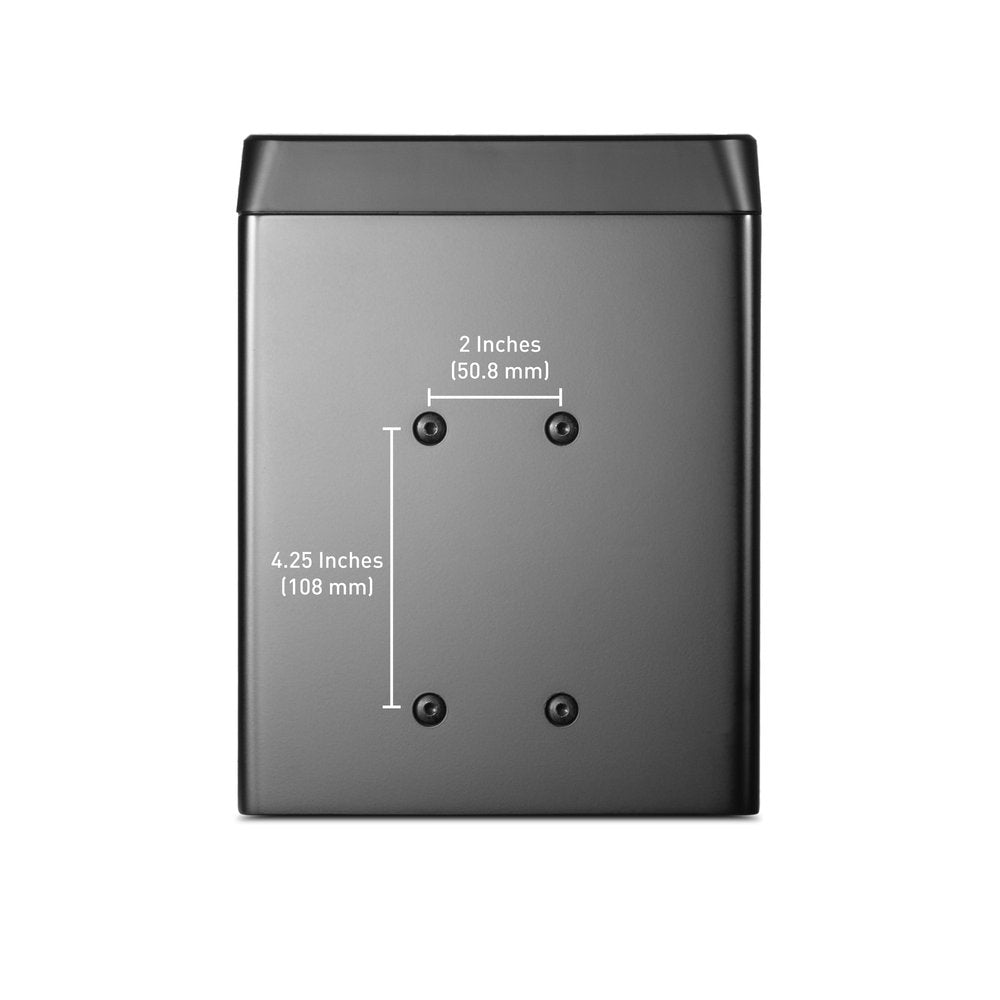

The SM–5 features mounting holes on both the top and bottom of the loudspeaker. Kali recommends using a speaker specific U-bracket from Triad-Orbit, but any speaker mount with a 4.25 x 2-Inch bolt pattern that is capable of holding the SM-5’s 21 lbs weight will also work.

Specifications
