Mackie HM-800 8-channel Headphone Amplifier

Product Description
$239.99
Maximum quantity available reached.

HM Series Headphone Amplifiers

Expand
Your Versatility

Perfect for studios, practice spaces, quiet stages, and more, the HM Series offers everything you need whether it is just splitting a single signal to your band, or more complex headphone distribution.

Flexible

Headphone amplification

Whether you need to expand your home studio headphone monitoring capability or add robust cue mix distribution, the affordable HM Series offers the sound quality, reliability, and flexibility you need to expand your setup.

The ultra-compact HM-4 offers a simple yet effective way to split a single stereo signal out into four pairs of headphones. Perfect for quickly splitting a phones mix in the studio or even crowding around a tablet to watch a movie at home.

The two 19" rackmount models, the HM-400 and HM-800, deliver flexible, robust headphone distribution for studios, practice spaces and more.

Features​

Great-sounding, reliable headphone amplification

Excellent Sound Quality

Premium analog circuitry and design delivers an ultra-low noise floor and high headroom.




Choice

Ultra-Flexible

From a simple yet effective way to split a single stereo signal out to four pairs of headphones to robust headphone distribution, the HM Series offers a wide range of options to suit your needs.


rugged

Built-Like-A-Tank™

With a heavy-gauge steel chassis, long wear potentiometers and switches, the HM Series is built to last.

Mackie HM-800 Overview

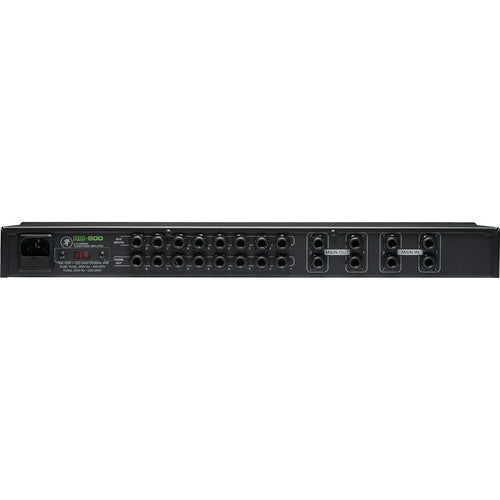

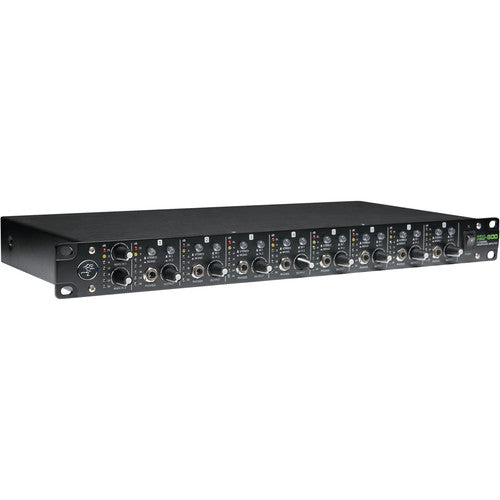

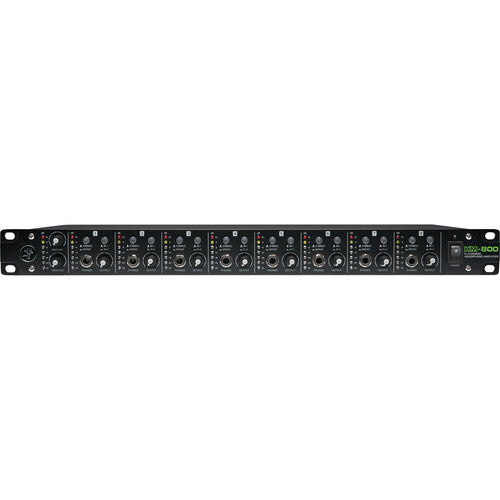

The Mackie HM-800 is a rack-mountable, 8-channel headphone amplifier designed to provide versatile headphone amplification for artists, musicians, and engineers monitoring through headphones in live stage applications and home, project, commercial, and mobile-recording studios. It features two stereo main outputs via four 1/4" jacks and sixteen 1/4" TRS stereo headphone outputs—two per channel—fed by a customizable blend of inputs.

Two stereo main inputs via four 1/4" jacks can be combined with a per-channel 1/4" stereo aux input. Each channel offers stereo/mono mode switching, input selection, and output level adjustments. 7-segment LED meters display main input and per-channel output levels.

The HM-800 ships with an IEC power cable and occupies 1 RU in a standard 19" rack.

Distribute signal to up to sixteen pairs of headphones
Occupies 1 RU
Two stereo main inputs via four 1/4" jacks
One 1/4" stereo aux input per channel
Two stereo main outputs via four 1/4" jacks
Two 1/4" stereo headphone outputs—one on the front panel and one on the rear—per channel fed by an output level control
Switches on each channel for stereo/mono operation input selection
7-segment LED metering for main input and each output channel
Heavy-gauge steel chassis for rugged durability

Mackie HM-800 Specs

Number of Channels 8
Input Connections 4 x 1/4" TRS balanced (two stereo pairs, also accepts 1/4" TS unbalanced)
8 x 1/4" TRS stereo unbalanced for aux inputs
Output Connectors 4 x 1/4" TRS balanced (two stereo pairs, also accepts 1/4" TS unbalanced)
16 x 1/4" TRS stereo unbalanced headphone outputs
Maximum Input Level Main Input: +19 dBu
Aux Input: +20 dBu
Maximum Output Level Headphone Outputs: 550 mW per channel at 47 Ohms (+21 dBu)
Input Impedance Main Input: 40 kOhms balanced, 20 kOhms unbalanced
Aux Input: 13 kOhms unbalanced
Output Impedance Headphone Outputs: 3 Ohms unbalanced
Gain Range Main Input: -67 to +19 dBu
Function Controls Power on/off
Main level knobs
In 1/2 switches per channel
Stereo/Mono switches per channel
Output knob per channel
Frequency Response 20 Hz to 20 kHz (±1 dB)
THD
Noise -70 dB
CMRR Main Input: >52 dB at 1 kHz
Display 1 x input level meter
8 x output level meters
Power Requirement 100 to 120 VAC, 50/60 Hz, 24 W
220 to 240 VAC, 50/60 Hz, 24 W
Power Connector 1 x 3-pin IEC male, 250 VAC, 10 A
Construction Material Heavy-gauge steel chassis
Dimensions (H x W x D) 1.8 x 19.0 x 8.8" / 46 x 483 x 224 mm
Weight 8 lb / 3.6 kg
Packaging Info
Package Weight 10.7 lb
Box Dimensions (LxWxH) 20.8 x 10.7 x 4.1"
