DIALED IN

Optimal Performance

Premium Mackie preamplifiers ensure transparent, low-noise/high-headroom characteristics right at the front of the mixer.  True 48V phantom power allows every condenser mic to perform at its full potential. Individual channel inserts and dedicated in-line compressors add even more ways to fine tune your mix.

tweak

"Gig Ready" FX

The RMFX+ processor features 24 solid FX that are known for their utility and usability.  Small, medium and large room reverbs with the choice of a warm or bright characteristic put your mix in the right space. Simple, rich choruses and an array of practical delays with tap tempo enable you to create

lOUD

Reliable Power

Every PPM mixer features two ridiculously robust Class-D power amps for Mains and Monitors designed for maximum efficiency and minimum heat, delivering 95% of power straight to the speakers. Fast Recovery™ circuitry eliminates the risk of pesky amp latching. And to help protect your speakers, we’ve included a built-in internal limiter that rival many outboard limiters available.

ADJUST

Fine Tune Your Mix

Designed for maximum tonal control in a live sound environment, the legendary Mackie 3-band active channel EQ, with up to 15dB boost/cut capability per band, provides more tone-sculpting latitude than any other mixer in its class.

TOUGH

Absolutely Armored

The PPM Series Mixers are "Built-Like-A-Tank", armored inside a solid steel chassis that helps protect the electronics from any potential environmental hazard (think beer). Extremely durable polycarbonate ABS end caps (PPM608 &PPM1008) will protect the mixer from years of abuse

SMART

All The Bells And Whistles

Dedicated In-line Compression provides increased presence and punch for vocals and instruments. Plus, features like 2 built-in DI boxes for direct instrument connections, dual 7-Band GEQ on the Mains and Monitor outputs provide the tools any engineer needs to create a solid mix.

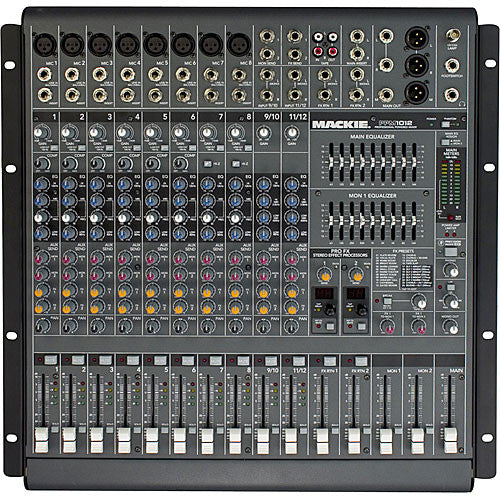

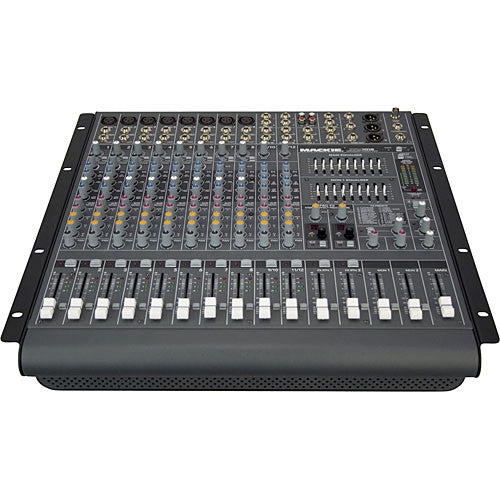

PPM1012

Featuring 800W + 800W peak Class-D, Fast Recovery™ power amplifiers, a full eight mono mic/line channels each with 3-band Perkins EQ and sweepable mid and two stereo channels each with 4-band Perkins EQ, the PPM1012 is the flagship mixer of the Mackie PPM series.

The PPM1012 is equipped with two 32-bit RMFX+™processors, each featuring 24 effects with tap delay, dual 9-band graphic EQ (one for mains, one for monitors) and dedicated in-line compressors on the first six channels.

Each mono channel has a premium Mackie mic preamp, an input Gain control with 50 dB of gain, a 100 Hz Low Cut filter, two Aux/Mon sends and two Aux/FX sends, Pan, Mute, Solo, a 60mm fader and a Channel Insert jack for connecting an external processor.

There are built-in DIs on channels seven and eight for direct connection of guitars or bass, a 1/4-inch stereo footswitch jack for muting effects and a switchable subwoofer output with variable low-pass frequency.

Other features include +48V phantom power, a stereo tape input and output, a 1/4-inch stereo headphone jack, stereo 12-segment LED meters, BNC lamp socket and XLR and TRS stereo (and mono) output jacks.

Despite its large channel count, the PPM1012 is ultra-light and rack-mountable. Plus, it’s a Mackie which means it is “Built-Like-A-Tank” and will survive years of abuse.

APPLICATIONS

Live sound mixing, houses of worship, clubs, gymnasiums, banquet halls, conference rooms, boardrooms, multitrack studio and field recording, video post-production, multimedia applications, broadcast, and many, many more.

FEATURES:

■ Full-featured 12-Channel, 1600W Powered Desktop Mixer with onboard effects

■ 800W + 800W peak Mackie designed Class-D, Fast Recovery™ power amplifiers

■ Dual 32-bit RMFX+™ processors featuring 24 “Gig Ready” reverbs, choruses, and tap delay

■ Eight mic/line mono inputs and two stereo line inputs with 4-segment LEDs

■ Mackie high-headroom, low-noise mic preamps with RF rejection and switchable 48V phantom power

■ Six dedicated In-line Compressors

■3-Band channel EQ with a Mid sweep (100 Hz – 8 kHz) on mono channels and 4-band EQ on stereo line channels 9/10 and 11/12

■ DI inputs for direct instrument connections on channels 7 and 8

■Four aux sends – two Mon and two FX

■ Dual 9-Band graphic EQs on the Mains and Monitor outputs

■ Mono output with level control and low pass filter adjustable from 75 Hz – 100 Hz

■ 3-Mode two-channel Amplifier, switchable as Mains Stereo L/R, Mono Mains/Monitor 1, or Mon 1 and Mon 2

■ Precision Passive EQ for enhanced clarity and low-frequency response with Mackie passive loudspeakers

■ 12v BNC lamp Jack

■ Built-like-a-tank metal chassis with a handle built into the front of the mixer for easy transport

■ Rack ears included

■ Lightweight and portable (29 lb / 13 kg)
