DIALED IN

Optimal Performance

Premium Mackie preamplifiers ensure transparent, low-noise/high-headroom characteristics right at the front of the mixer.  True 48V phantom power allows every condenser mic to perform at its full potential. Individual channel inserts and dedicated in-line compressors add even more ways to fine tune your mix.

tweak

"Gig Ready" FX

The RMFX+ processor features 24 solid FX that are known for their utility and usability.  Small, medium and large room reverbs with the choice of a warm or bright characteristic put your mix in the right space. Simple, rich choruses and an array of practical delays with tap tempo enable you to create

lOUD

Reliable Power

Every PPM mixer features two ridiculously robust Class-D power amps for Mains and Monitors designed for maximum efficiency and minimum heat, delivering 95% of power straight to the speakers. Fast Recovery™ circuitry eliminates the risk of pesky amp latching. And to help protect your speakers, we’ve included a built-in internal limiter that rival many outboard limiters available.

ADJUST

Fine Tune Your Mix

Designed for maximum tonal control in a live sound environment, the legendary Mackie 3-band active channel EQ, with up to 15dB boost/cut capability per band, provides more tone-sculpting latitude than any other mixer in its class.

TOUGH

Absolutely Armored

The PPM Series Mixers are "Built-Like-A-Tank", armored inside a solid steel chassis that helps protect the electronics from any potential environmental hazard (think beer). Extremely durable polycarbonate ABS end caps (PPM608 &PPM1008) will protect the mixer from years of abuse

SMART

All The Bells And Whistles

Dedicated In-line Compression provides increased presence and punch for vocals and instruments. Plus, features like 2 built-in DI boxes for direct instrument connections, dual 7-Band GEQ on the Mains and Monitor outputs provide the tools any engineer needs to create a solid mix.

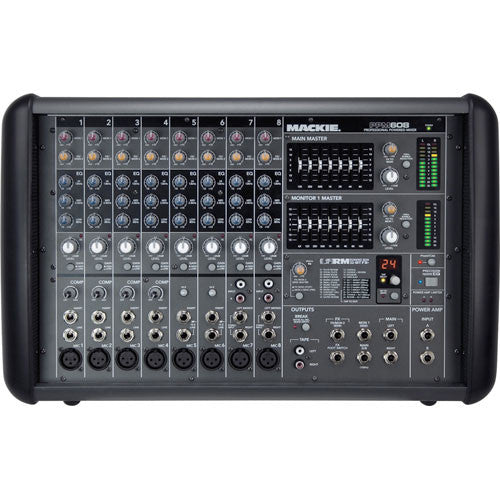

PPM608

The PPM608 features 500W + 500W peak Class-D, Fast Recovery power amplifiers, six mono mic/line channels and two stereo mic/line/RCA channels, each with 3-band Perkins EQ.

The PPM608 is equipped with a 32-bit RMFX+ processor featuring 24 effects with tap delay, dual 7-band graphic EQ (one for mains, one for monitors) and dedicated in-line compressors on the first four channels.

Each mono channel has a premium Mackie mic preamp, a low/high gain switch, one Mon send and one FX/Mon send and a Channel Insert jack for connecting an external processor.

There are built-in DIs on channels five and six for direct connection of guitars or bass, a 1/4-inch stereo footswitch jack for muting effects and a subwoofer output.

Other features include +48V phantom power, stereo tape output, stereo 12-segment LED meters and TRS stereo output jacks.

Despite its large channel count, the PPM608 is ultra-light. Plus, it’s a Mackie which means it is “Built-Like-A-Tank” and will survive years of abuse.

FEATURES:

■ Full-featured 8-Channel, 1000W Powered Mixer with onboard effects

■ 500W + 500W peak Mackie designed Class-D, Fast Recovery™ power amplifiers

■ 32-bit RMFX+™ processor featuring 24 “Gig Ready” reverbs, choruses, and tap delay

■ Six mic/line mono inputs and two mic/line stereo inputs

■ Mackie high-headroom, low-noise mic preamps with RF rejection and switchable 48V phantom power

■ Four dedicated in-line compressors

■3-Band channel EQ on all channels

■ DI inputs for direct instrument connections on channel on channels 5 and 6

■Two aux sends – one Mon and one FX/Mon

■ Dual 7-Band graphic EQ on the Mains and Monitor outputs

■ 3-Mode two-channel Amplifier, switchable as Mains Stereo L/R, Mono Mains/Monitor 1, or Mon 1 and Mon 2

■ Precision Passive EQ for enhanced clarity and low-frequency response with Mackie passive loudspeakers

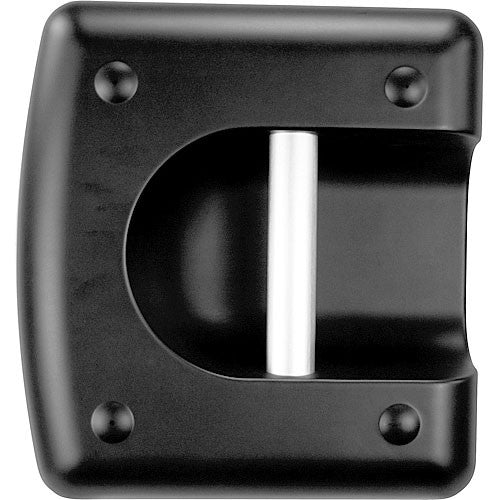

■ Built-like-a-tank poly carbonate ABS cabinet with built-in metal handles

■ Ultra-lightweight and portable (24.8 lb / 11.2 kg)
