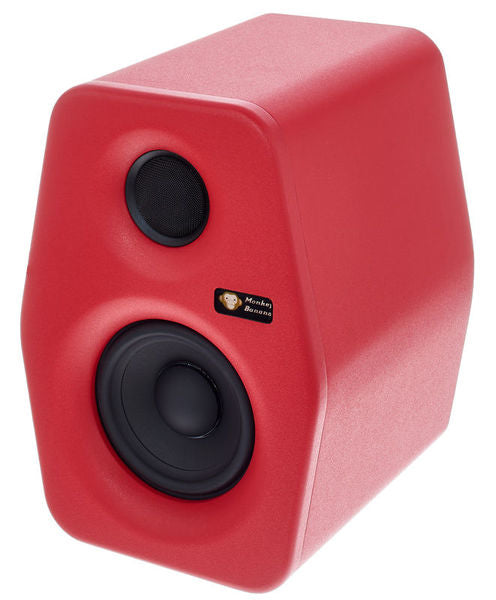

Turbo 4 is an active studio monitor and an ideal solution when smaller is a good option. The digital bi-amp-driven loudspeaker allows perfect mixes and mastering in small monitoring environments. The Turbo 4 is ideal as a desktop monitor or as a second monitoring solution. Do you need accurate control in the broadcasting studio or would you like to upgrade your home/studio with a stylish design? The active monitor also stands out as a fixed installation in hotels, shops and restaurants.

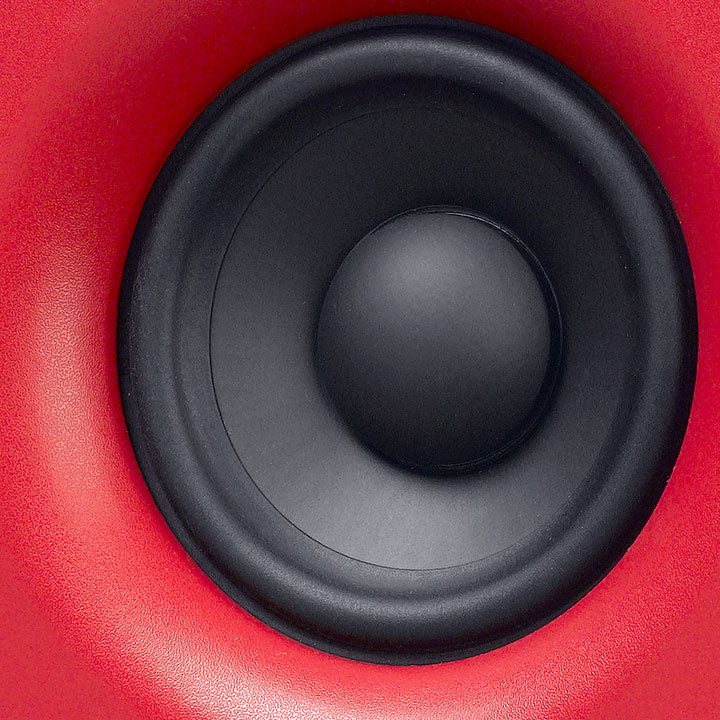

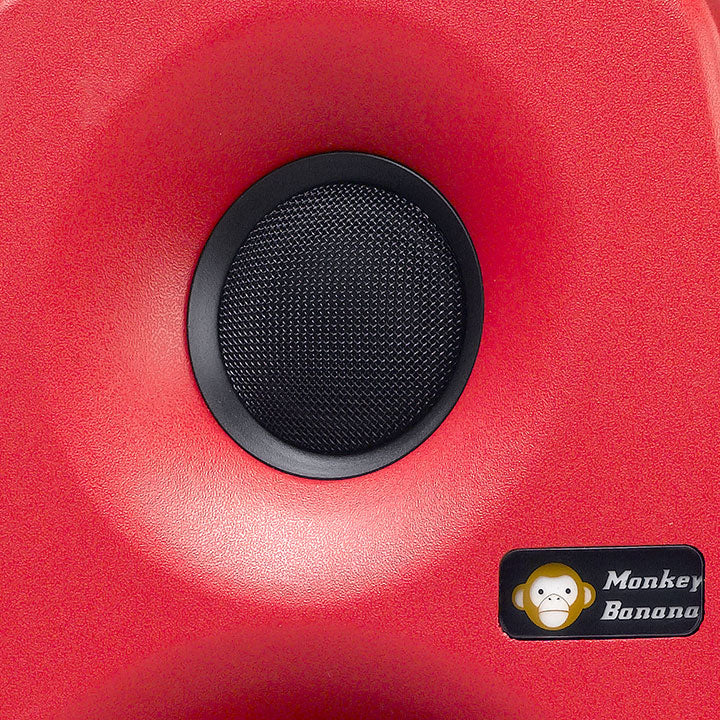

The application fields for near field monitoring with the small Turbo 4 are extremely broad. A 4” woofer with a magnetically shielded polypropylene/ceramic membrane is combined with a 1” silk tweeter. The amplification power of the bi-amp module is 30 watts for the low-end frequency range and 20 watts for the high-end frequency range.
| Woofer: |
4-inch magnetically shielded polypropylene / ceramic membrane |
| Tweeter: |
1-inch silk dome tweeter |
| Frequency response: |
60Hz - 30kHz |
| HF - Level: |
-6dB ~ +6 dB variable at 10kHz |
| LF - Level: |
-6dB ~ +6 dB variable at 100Hz |
| Crossover frequency: |
3kHz |
| LF - Amplifier Power: |
30W |
| HF - Amplifier Power |
20W |
| Signal HF / LF: |
88dB / 92dB |
| THD + N @ Rated Power HF / LF: |
0.06% / 0.03% |

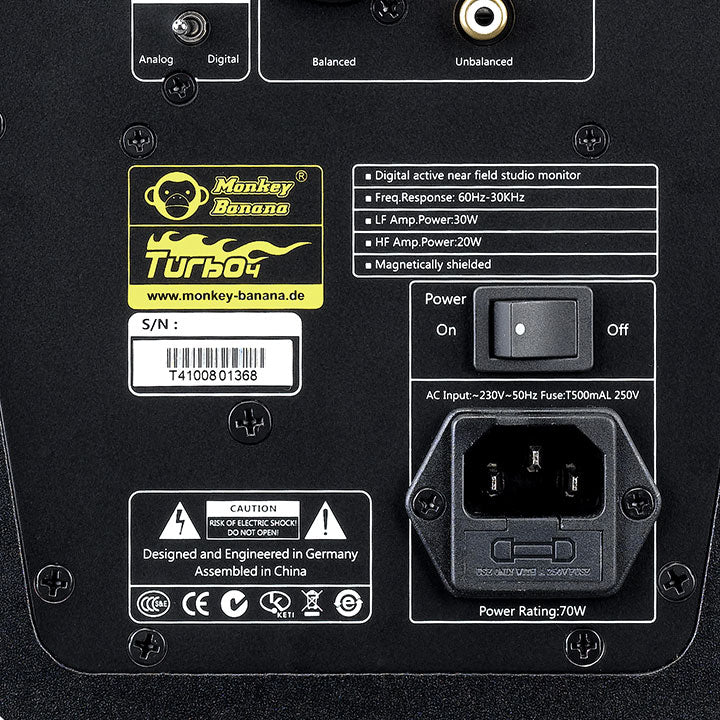

| Inputs: |
XLR/TRS - Neutrik® Combo-jack, RCA input, S/PDIF - RCA input for digital signal |
| Outputs: |
S / PDIF - RCA jack for digital signal thru |
| Input Select: |
Analog or Digital |
| Channel selection: |
Left or Right (Digital input mode only) |
| Input Impedance: |
20 kOhm balanced, 10 kOhm unbalanced |
| Input Sensitivity: |
+4 dBu (Balanced), -10dBV (unbalanced) |
| Available colors: |
Red, Black |
| Gross Weight: |
6 kg / 13.2lb |
| Net weight: |
4.5 kg / 9.9lb |
| Gross Dimensions: |
L287 x B255 x H346 mm
L11,29 x W10,03 x H13,62 in
|
| Net Dimensions: |
L195 x W173 x H245 mm
L7,68 x W6,81 x H9,65 in |
