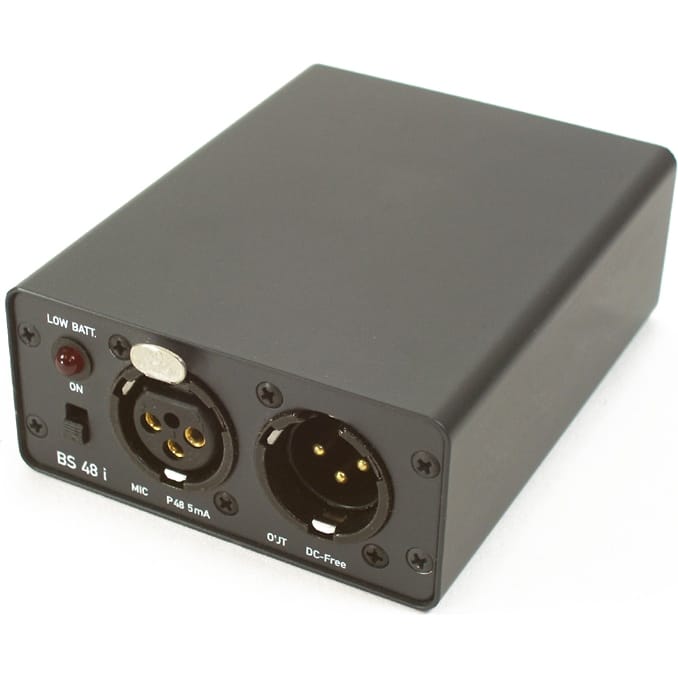

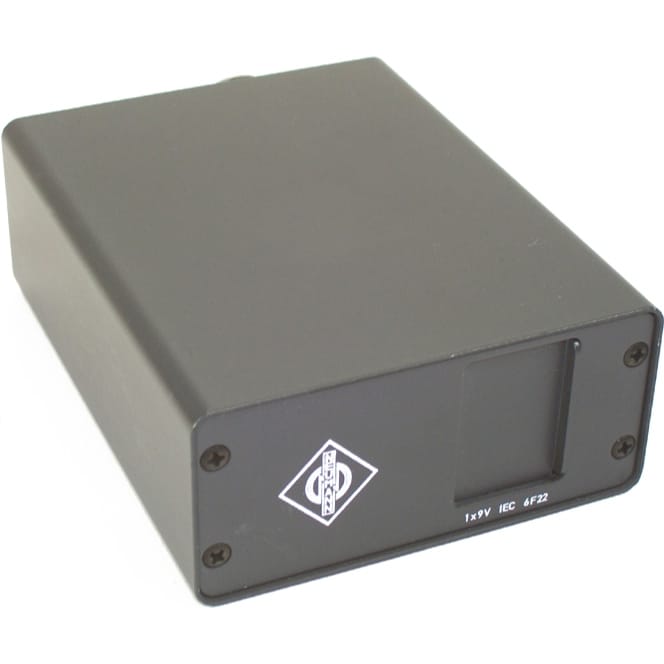

Neumann BS 48 i

Product Description
$1,250.00
Maximum quantity available reached.

Battery Supply

BS 48 i

The battery unit supplies one microphone with 48 V phantom powering (P48). The maximum supply current is 5 mA.

The audio output is dc-free. Therefore, no transformer is needed when connecting to unbalanced inputs. The cables couple to the BS 48 i through XLR 3 connectors.

Maximum length of operation depends on the type of battery and the current drain of the microphone. A microphone requiring e.g. 2 mA can be operated at least 20 hours with one alkaline battery.

Technical Data

Output voltage

48 ± 1 Vdc

Maximum current output

max. 5 mA

Battery

IEC 6 F 22.9 V

Weight

270 g (without battery)

H x W x D

37 x 80 x 102 mm

Order Information

BS 48 i

black

Cat. No. 006494



Sku: BS 48 i
Vendor: Neumann
