Product Feature

Benefit to the Customer

Low-distortion high-frequency reproduction

Smoother off-axis response,
More forgiving of diverse acoustical environments

Damping of break-up modes

Low distortions at high sound levels

Displays operation status  and activation of the extensive protection system

Protects against mechanical damage

Reduced bass compression and easier to mount in tight spaces such as OB vans

Minimizes resonances, better heat dissipation, long life

Freedom of movement across the mixing console

Reduces reflections off the mixing console

Reduced diffraction and smoother frequency response

Improved transient response

Any KH 120 is “pair-matched” to any other KH 120

More control in diverse acoustical environments

Easier interfacing with signal sources

More flexibility in mounting cabinets in more diverse locations

For low lighting level conditions or behind the screen applications

Reduced noise in electrically noisy environments and over-comes ground loops

One version works in any country and robust to poor quality mains supply

High reliability

Compatible with any analog line signal

For flexible and trouble-free digital interconnectivity
(24 bit, 192 kHz, AES3 and S/P-DIF)

To align audio and video signals

To compensate for listening distance differences

Acoustics

Free field frequency response

52 Hz … 21 kHz, ± 3 dB

Pass band free field frequency response

54 Hz … 20 kHz, ± 2 dB

Self-generated noise
(with input gain set to 100 dB for 0 dBu)

< 20 dB(A) at 10 cm

Total harmonic distortion < 0.5 % at 95 dB SPL at 1 m

> 100 Hz

Max. SPL in full space / calc. in half space
at 3% THD at 1m

105.1 / 111.1 dB SPL
(averaged between 100 Hz and 6 kHz)

Bass capability: Max. SPL in half space
at 3% THD at 1m

104.8 dB SPL
(averaged between 50 Hz and 100 Hz)

Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions

107 dB(C) SPL

Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair)

97 dB(C) SPL (full range)
104 dB(C) SPL (with subwoofer)

Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single/pair)

88 / 93 dB(C) SPL (full range)
89 / 94 dB(C) SPL (with subwoofer)

Electronics

Woofer amplifier,
cont.(peak) output power*

50 W (80 W)

Tweeter amplifier,
cont.(peak) output power*

50 W (80 W)

Controller design

Analog, active

Crossover Frequency

2.0 kHz

Crossover Slope (dB/oct.)

24, 4th order

Equalization - Bass

0, −2.5, −5, −7.5 dB

Equalization - Mid

0, −1.5, −3, −4.5 dB

Equalization - High

+1, 0, −1, −2 dB

Protection circuitry

Limiter: low, high

Infrasonic filter frequency; slope

30 Hz; 6 dB/oct.

Analog Input

Impedance, electrically balanced

10k Ohms in position 94/108 dB SPL at 1 m
20k Ohms in position 100/114 dB SPL at 1 m

Input gain control (sensitivity)

0 dB to −15 dB

Output level control

94, 100, 108, 114 dB SPL

CMRR

>56 dB @ 15 kHz

Maximum input level

24 dBu (18 dBu for analog delayed)

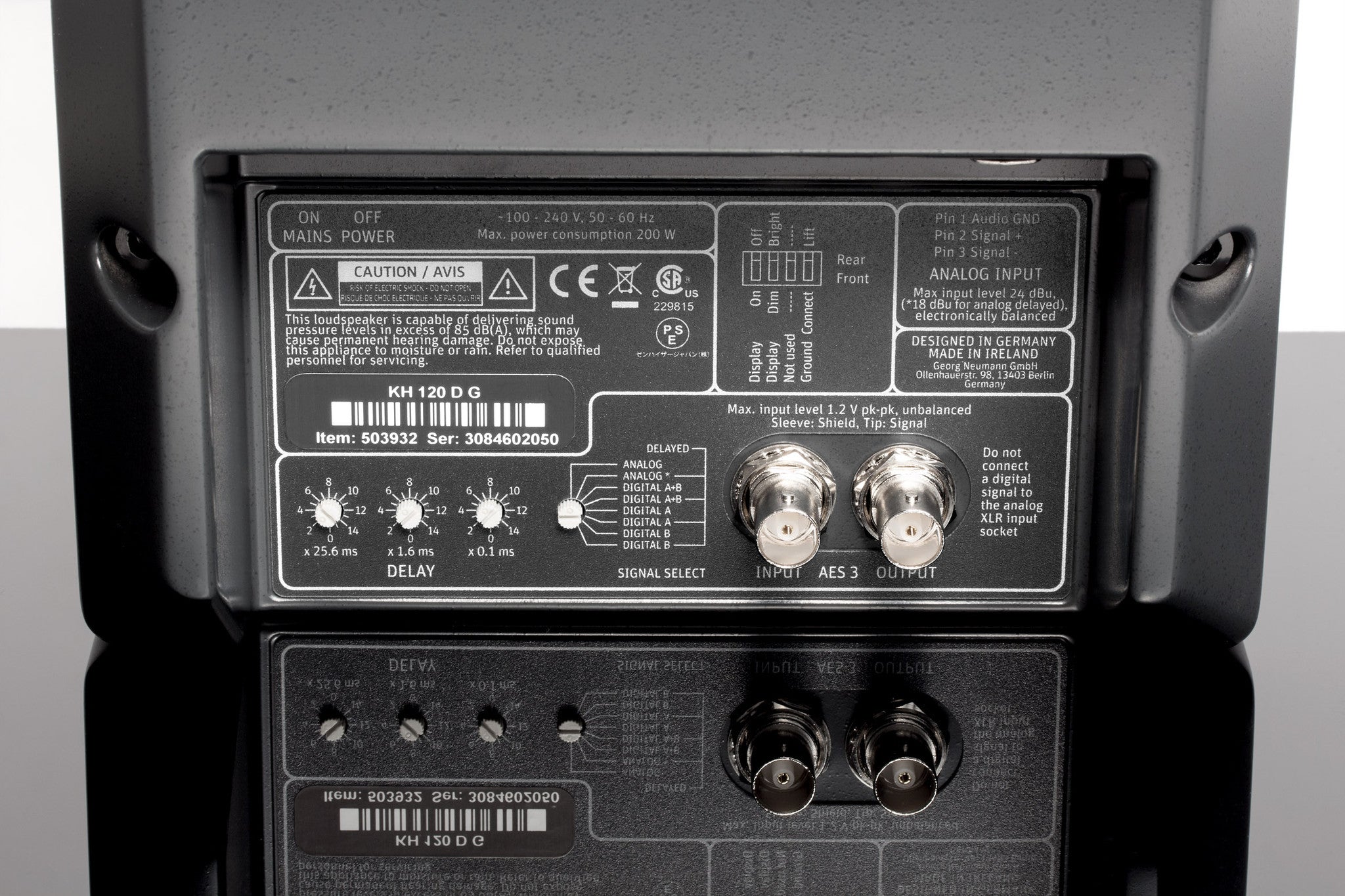

Digital Input/Output

Format BNC

AES3, S/P-DIF

Impedance BNC, unbalanced

75 Ω (input/output)

Input switching

Analog, Digital A, Digital B, Digital A+B (all available with and without delay)

Digital converter: resolution, design

16 … 24-bit DAC, Δ∑

Digital converter: sampling rate

32 … 192 kHz

Digital sensitivity

−18 dBFS

D-A dynamic range

120 dB

Audio-Video/lip sync and Time-of-Flight delay range

0 … 409.5 ms

Audio-Video/lip sync max. frames

0 … 10.2 (40 ms) frames,
0 … 12.3 (33 ms) frames

Resolution: time/distance

0.1 ms / 3.4 cm (1 3/8”)

Latency D-A (A-D-A)

0.22 -  1.85 ms (0.54 ms)

Displays and indicators - power on

Neumann logo “White”

Displays and indicators - limit/clip

Neumann logo “Red”

Displays and indicators - digital error

Neumann logo “Red” flash

Mains Power Supply, voltage; frequency

100-240 V~; 50/60 Hz

Power consumption – Idle

40 W

Power consumption – Full output AC

200 W

Mechanics

Cabinet surface finish, color: custom

Painted aluminium,
metallic anthracite (RAL 7021)

Operating conditions

+10° C to +40° C (+50° F to +104° F),
<90% RH, non-condensing

Transport/storage conditions

−25° C to +70° C (−13° F to 158° F),
<90% RH, non-condensing

Drivers

Magnetically shielded

Woofer

130 mm (5.25”)

Tweeter

25 mm (1”)

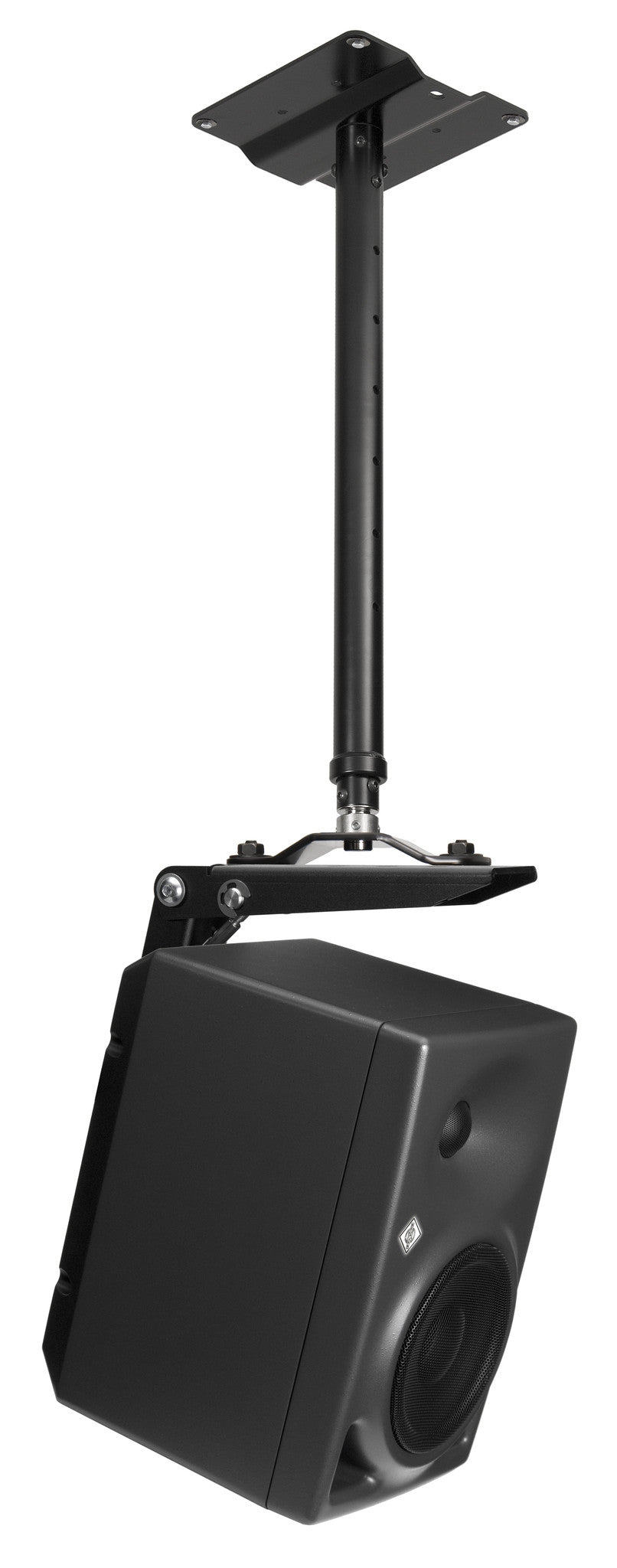

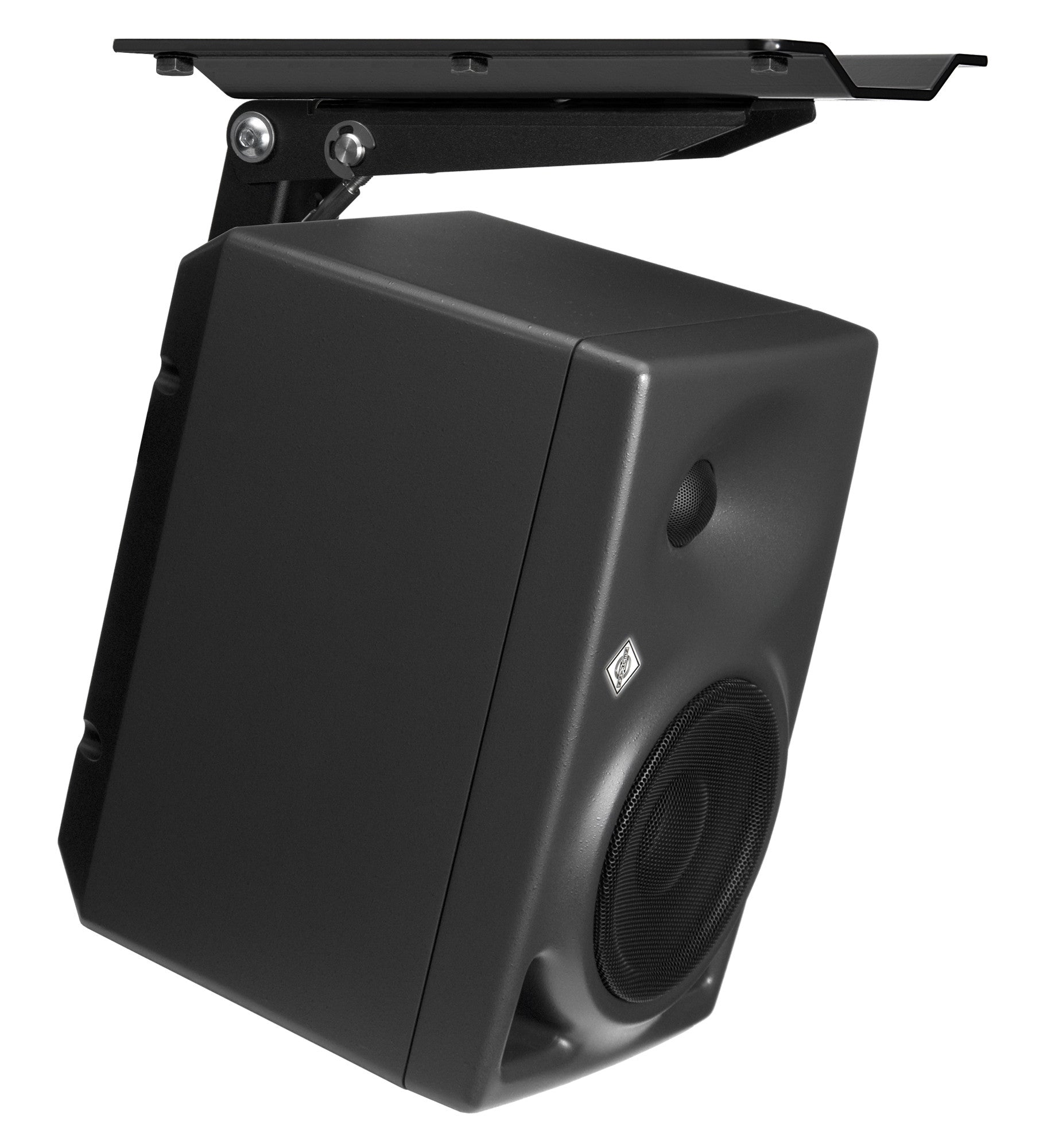

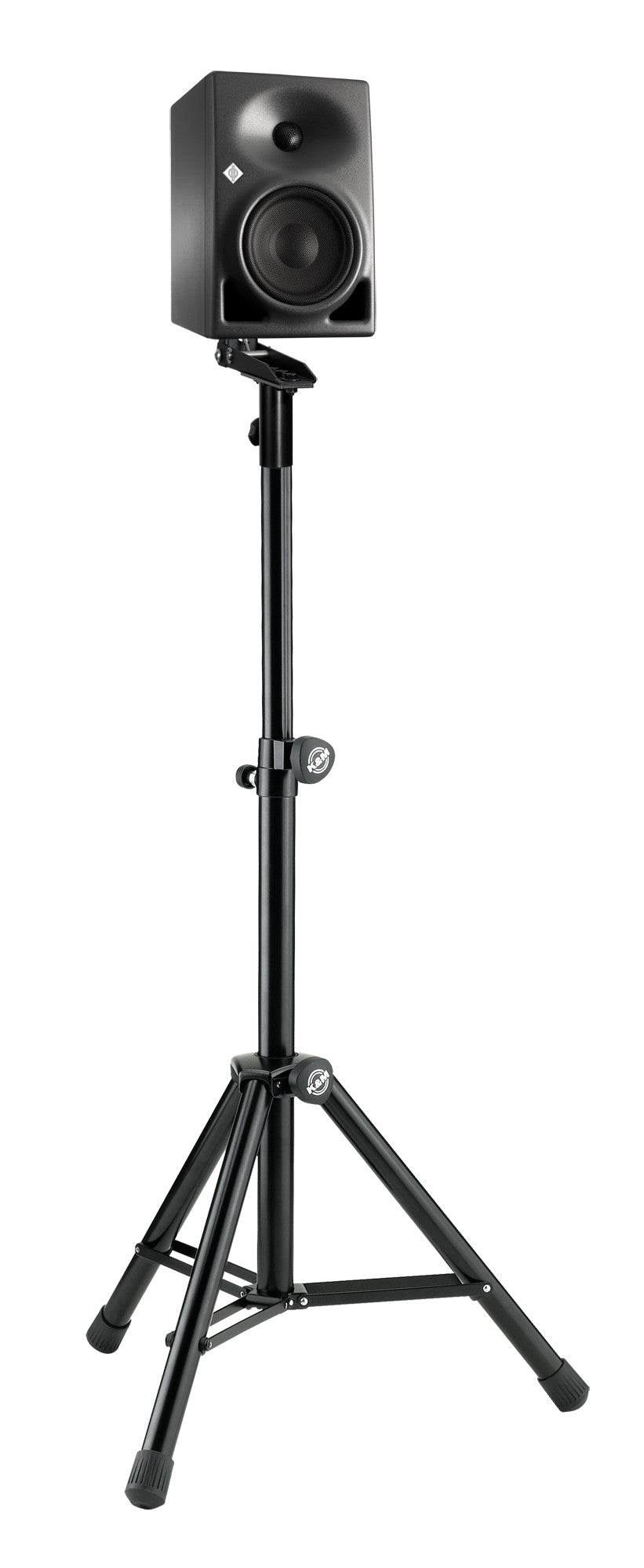

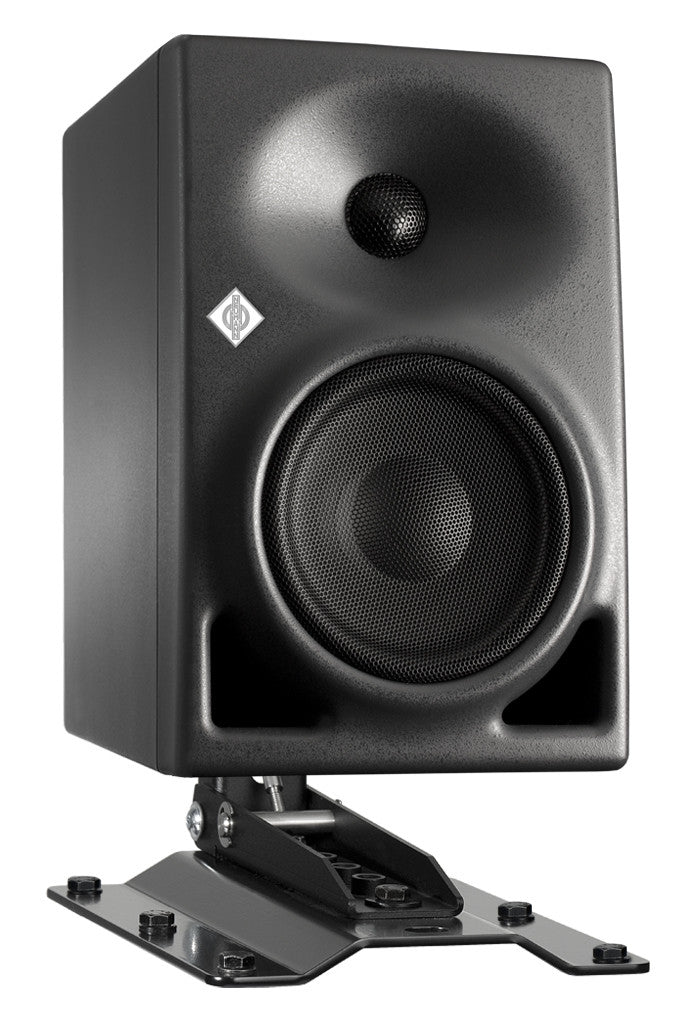

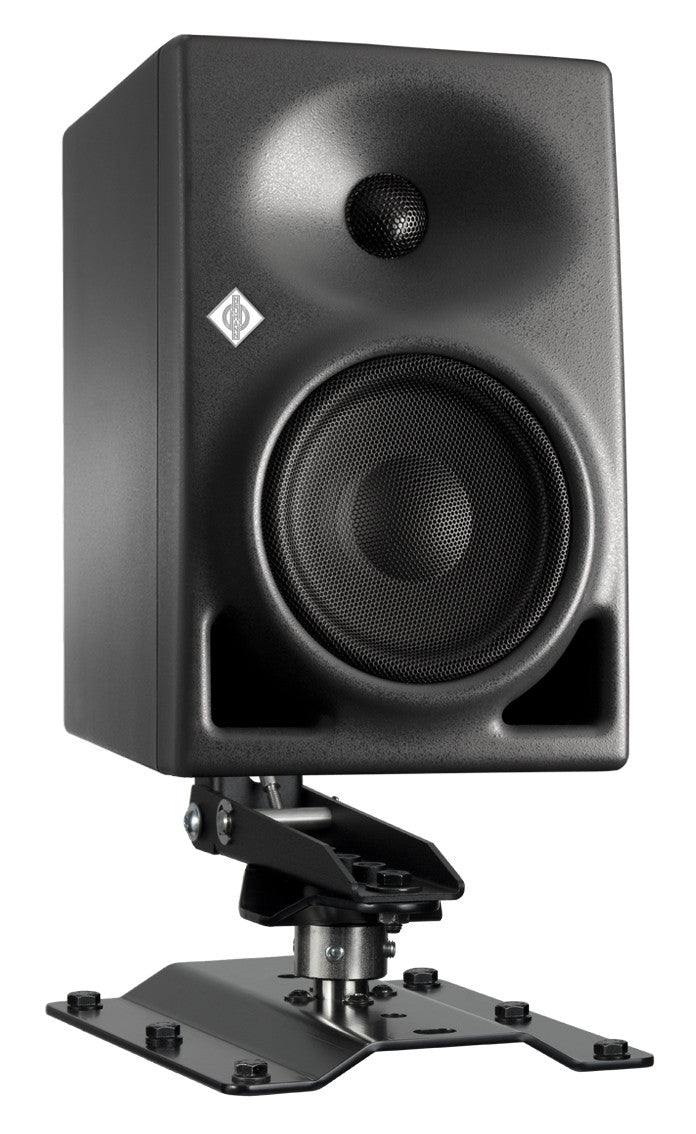

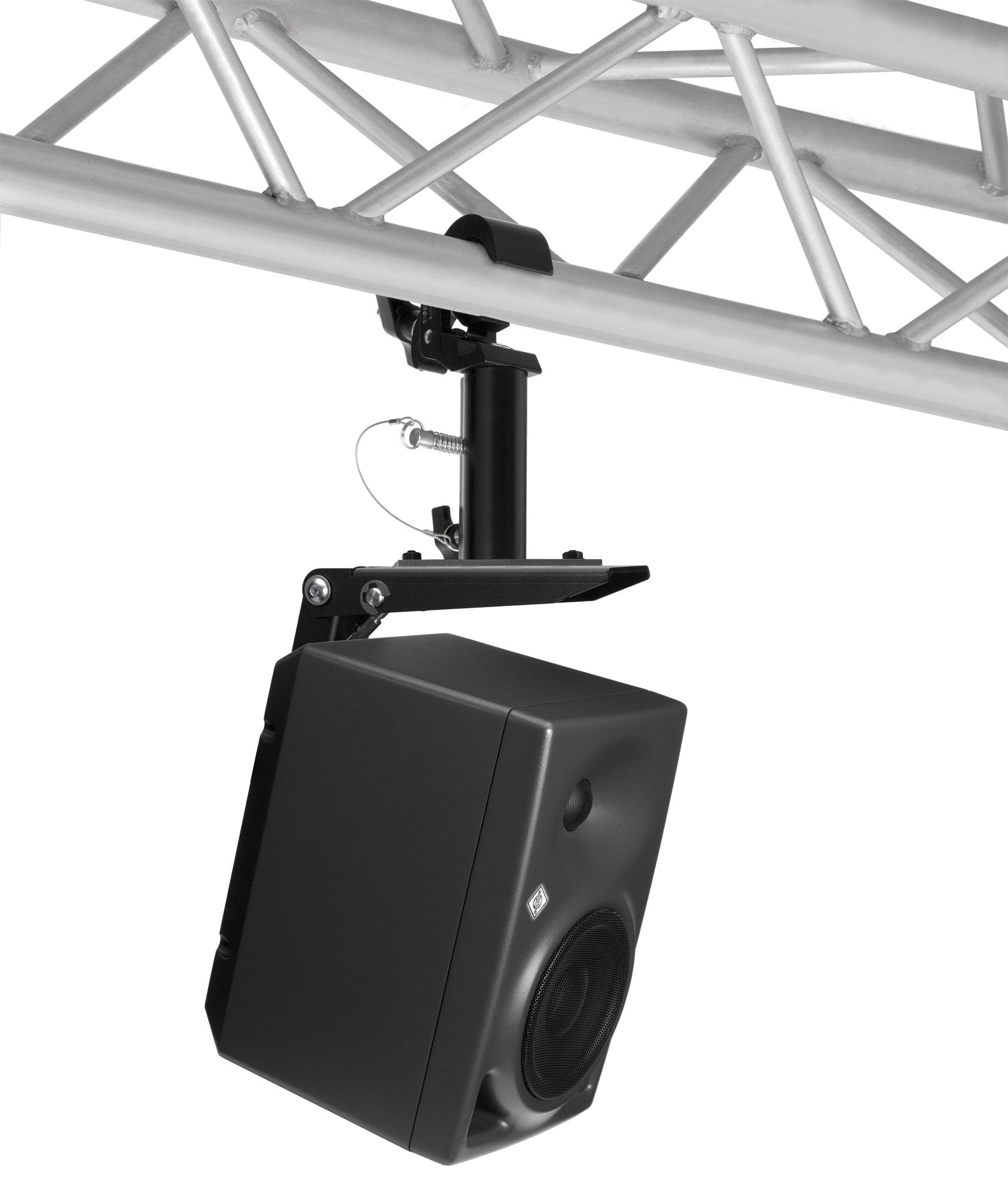

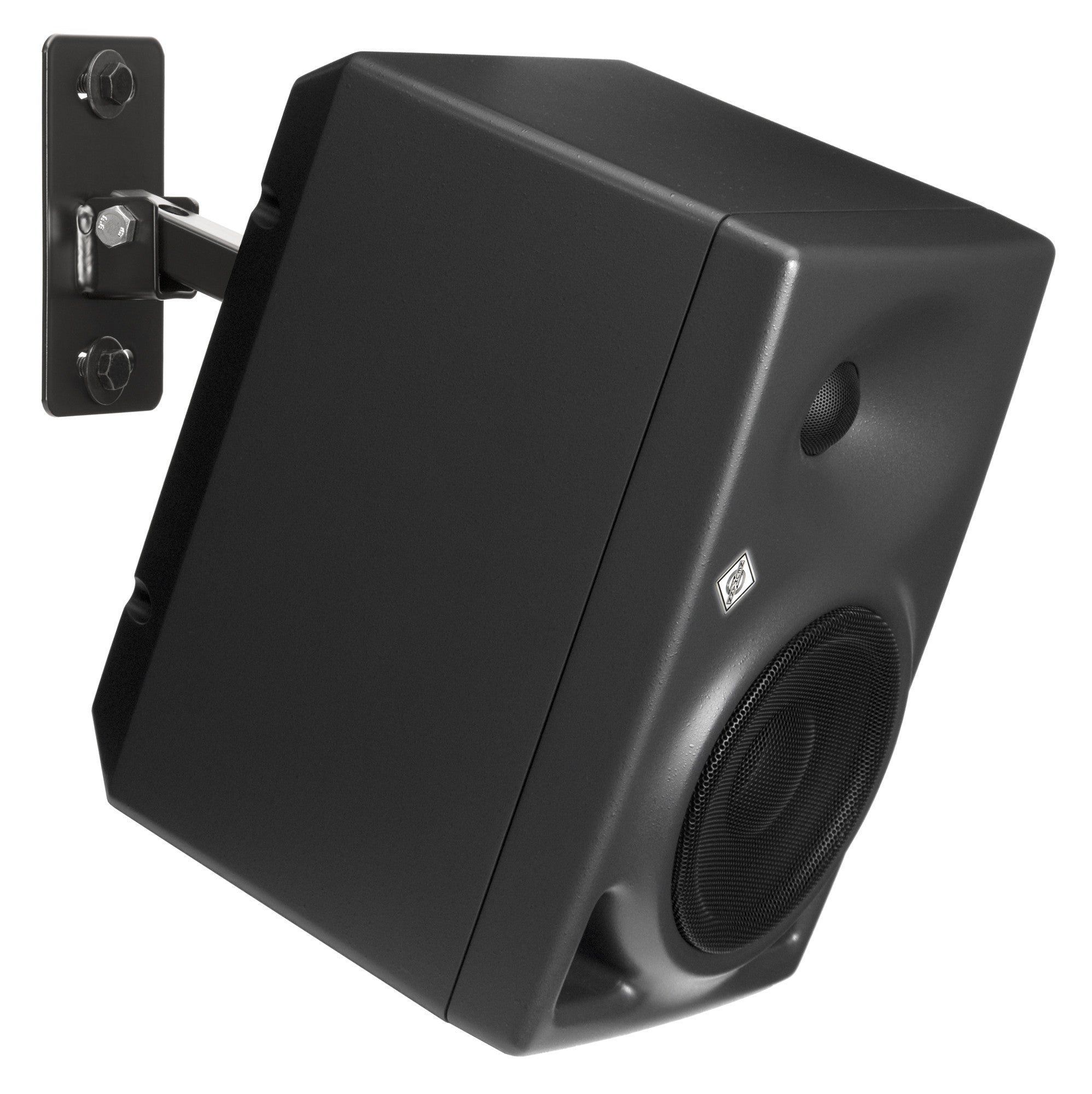

Mounting points

2 x M8 on rear panel

Product dimensions
(height x width x depth), mm (inches)

277 x 182 x 220 mm (10 7/8” x 7 1/8” x 8 5/8”)

Packed dimensions
(height x width x depth), mm (inches)

415 x 365 x 280 mm (16 3/8” x 14 3/8” x 11”)

Internal net volume / external volume

6.5 liters / 9.7 liters

Weight

6.5 kg (14.3 lbs)

Product

Article No.

Description

KH 120 D G

503932

2-way, 5.25"+1", active near-field reference monitor with analog controller, electronic-balanced and 192 kHz digital input, metallic anthracite (RAL 7021)

KH 120 D G UK

505999

2-way, 5.25"+1", active near-field reference monitor with analog controller, electronic-balanced and 192 kHz digital input, metallic anthracite (RAL 7021), UK mains cable

KH 120 D G CCC

503954

2-way, 5.25"+1", active near-field reference monitor with analog controller, electronic-balanced and 192 kHz digital input, metallic anthracite (RAL 7021), CCC certified*
