Neumann TLM 193

Product Description
$1,179.00
Maximum quantity available reached.

TLM 193

A large-diaphragm mic reduced to the essentials, but with no compromise in quality, featuring a cardioid directional characteristic and a classic design.

The TLM 193* is a large diaphragm microphone with a cardioid polar pattern. With this microphone Neumann continues its long tradition, and is offering high end technology at an affordable price for musicians and the home recording studio.

The microphone uses a transformerless circuit, featuring extremely low self noise and large dynamic range.

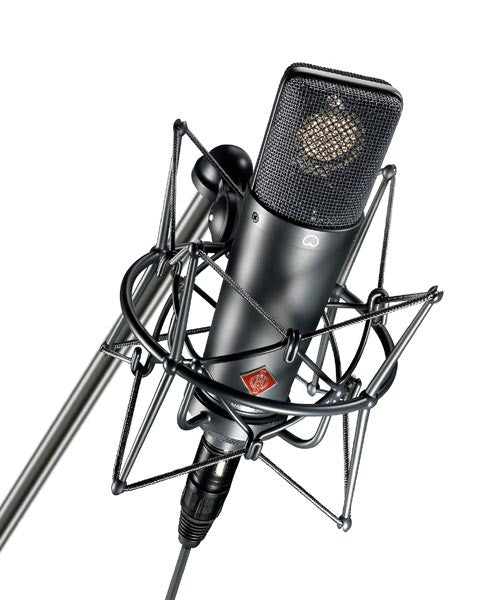

The polar response is very linear over a wide incidence angle. Thus, even signals coming from the side are reproduced faithfully and without coloration. The exposed surface of the microphone capsule is at ground potential, making it immune to typical interference and contamination. The microphone is supplied with a swivel mount.

Applications

The TLM 193 is a microphone with cardioid characteristic for professional recording and live applications. It is the ideal microphone for professional productions, for musicians and project studios.

Polar pattern

The TLM 193 has a large diaphragm capsule with cardioid characteristic.

Acoustic features

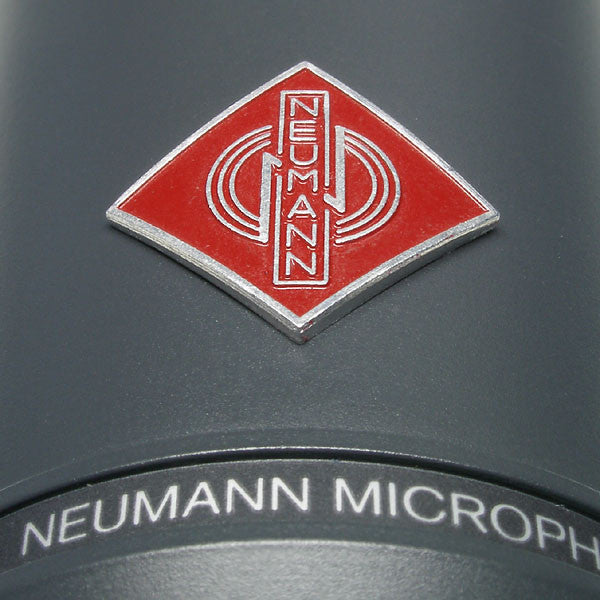

The TLM 193 is addressed from the front, marked with the Neumann logo. The large diaphragm capsule inside the headgrille has a very smooth frequency response for all polar patterns over a wide acceptance angle. The curves are flat and parallel to the 0° frequency curve up to 10 kHz within a pickup angle of ± 100°.

The TLM 193 differs from omnidirectional pressure transducers, where, due to physical reasons, the diffuse-field and free-field responses never agree. This microphone has a very even diffuse-field response for all polar patterns. This is important in a reverberant environment, as more reflections arrive at the microphone from different directions.

The acoustic information is not affected in its tonal quality when recorded by the microphone. This characteristic is achieved without resorting to corrective resonance effects. Therefore, the microphone maintains an excellent impulse response reproducing all transient phenomena of music and speech without coloration.

Electrical features

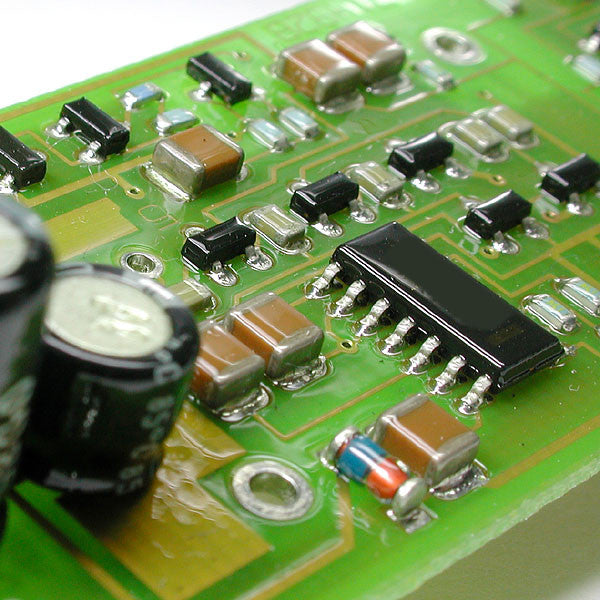

The letters TLM stand for "transformerless microphone". With TLM technology the usual output transformer is replaced by an electronic circuit.

As with traditional transformers, it ensures good common mode rejection, and prevents RF interference, that may influence the balanced audio signal.

Compared to other microphones the self noise level of the TLM 193 is considerably reduced. As it is capable of handling sound pressure levels up to 140 dB without distortion, the TLM 193 provides a dynamic range of 130 dB (A-weighted).

Operational safety

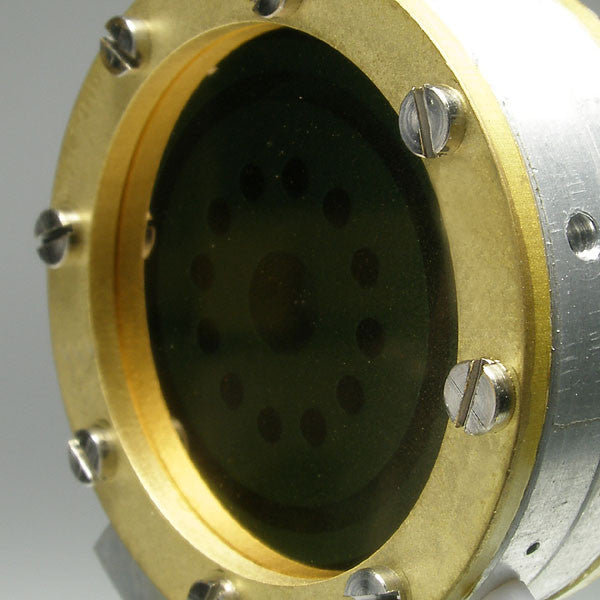

All exposed surfaces of the microphone capsule, including the diaphragms, are at ground potential. This technology makes them highly immune to electrical and atmospheric interference and contamination through microscopic dust particles.

The capsule is elastically mounted to avoid any structure borne noise that could interfere with its operation.

The frequency response of the TLM 193 amplifier is linear down to 20 Hz. Even very low bass signals are reproduced without coloration.

This implies that the microphone becomes more sensitive to subsonic frequencies, from structure borne noise or pop and wind noise.

To avoid any LF interference, we recommend to use the EA 1 elastic suspension, the PS 15 pop screen, or the WS 89 windscreen.

*The design of the microphone is a registered design of the Georg Neumann GmbH in certain countries.

 Features

Large diaphragm cardioid microphone

Pressure-gradient transducer

Transformerless circuitry

Extremely low noise: 10 dB (A)

Includes swivel mount

The "plug and play" microphone for professional studios, musicians and homerecording applications

High-quality professional equipment for mid-size budgets



Technical Data

Acoustical operating principle

Pressure gradient transducer

Directional pattern

Cardioid

Frequency range

20 Hz ... 20 kHz

Sensitivity at 1 kHz into 1 kohms

18 mV/Pa

Rated impedance

50 ohms

Rated load impedance

1 kohms

Equivalent noise level, CCIR1)

21 dB

Equivalent noise level, A-weighted1)

10 dB-A

Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL)

73 dB

Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL)

84 dB

Maximum SPL for THD 0.5%2)

140 dB

Maximum output voltage

13 dBu

Supply voltage (P48, IEC 61938)

48 V ± 4 V

Current consumption (P48, IEC 61938)

3 mA

Matching connectors

XLR3F

Weight

480 g

Diameter

49 mm

Length

175 mm

______________________________________________
1) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
2) measured as equivalent el. input signal



Accessories

Adapter Cable AC 22
Adapter Cable AC 25
Adapter Cable AC 27
Auditorium Hanger MNV 87 (mt)
Battery Supply BS 48 i
Battery Supply BS 48 i-2
Boom Attachment M 212 c
Double Mount DS 120
Elastic Suspension EA 1 (mt)
Elastic Suspension EA 2 (mt)
Elastic Suspension EA 4 (bk)
Floor Stand MF 5
Microphone Cable IC 3 mt
Microphone Cable IC 4 (mt)
Popscreen PS 15
Popscreen PS 20 a
Power Supply N 248
Shock mount Z 26 mt
Stand M 210/1
Stand M 214/1
Stand M 252
Stand Extension STV 4/20/40/60
Stand Mount SG 2
Table Stand MF 3
Table Stand MF 4
Vertical Bar MZEF 8060/8120
Windscreen WS 89
