Neumann TLM 49

Product Description
$1,475.00
Maximum quantity available reached.

TLM 49

Studio microphone with Retro look. Warm sound, optimized for vocal recordings. Uses the capsule of the legendary M 49 and U 47.
Cardioid polar pattern. Set includes elastic suspension.

The TLM 49* is a large-diaphragm studio microphone with a cardioid directional characteristic and a warm sound which is especially optimized for vocal performance. It is supplied as a set, with an elastic suspension.

The design is inspired by that of the legendary M 49 and M 50 microphones of the 1950s. Naturally the TLM 49 has the typical Neumann fine matte nickel finish. The “sound design” is also oriented toward that of the M 49 and the U 47.

By combining its retro look with proven Neumann transformerless circuit technology, this microphone ensures low self-noise and the use of high gain levels.

Applications

During the development phase, the sound was adjusted in extensive practical tests, so as to make the TLM 49 ideal particularly for vocal and speech recording. However, in addition, it is also suitable for instrumental applications in professional production studios and demanding home recordings.

Polar pattern

The large-diaphragm capsule of the TLM 49 provides a cardioid directional characteristic with a tendency toward supercardioid, due to the special capsule construction. Following the example of the M 49, high frequencies are more directional. The capsule diameter is 34 mm.

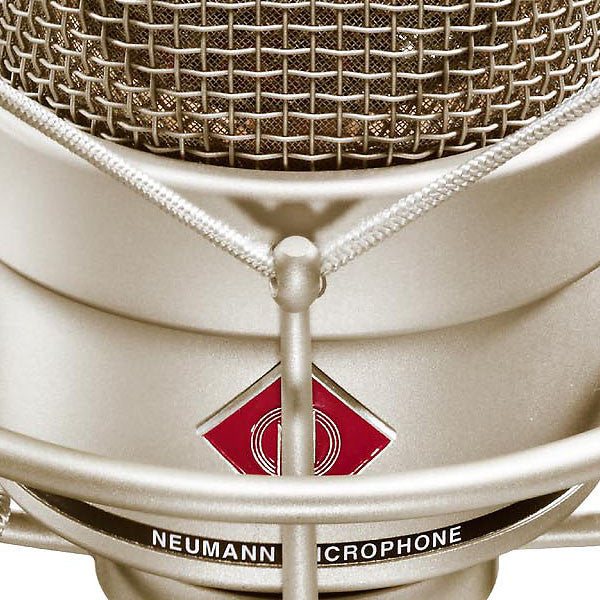

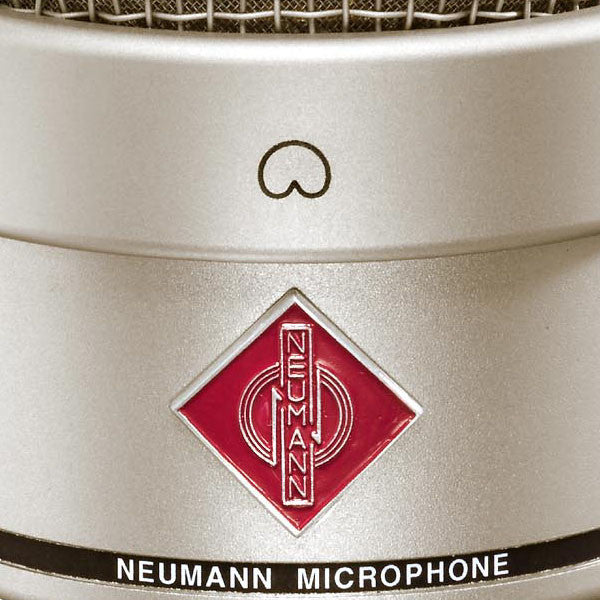

The front of the microphone is indicated by the red Neumann logo on the microphone body. The capsule is oriented so that the microphone is addressed from the front.

Acoustic features

The TLM 49 uses the famous K 47 capsule, which was also used in the M 49 and the U 47. The capsule has a linear frequency response up to the upper mid-range. Above 2 kHz there is a gentle presence boost up to 3 dB.

The capsule is enclosed by a large microphone headgrille, which is acoustically very open and is hence neutral with regard to the sound.

Electrical features

The letters TLM stand for “transformerless microphone”. With TLM technology the usual output transformer is replaced by an electronic circuit.

As with traditional transformers, it ensures good common mode rejection, and prevents RF interference that may influence the balanced audio signal.

Noise signals which affect the balanced modulation line are therefore effectively suppressed. The microphone can operate at sound pressure levels of up to 129 dB without distortion, and provides a dynamic range of 117 dB (A-weighted).

Operational safety

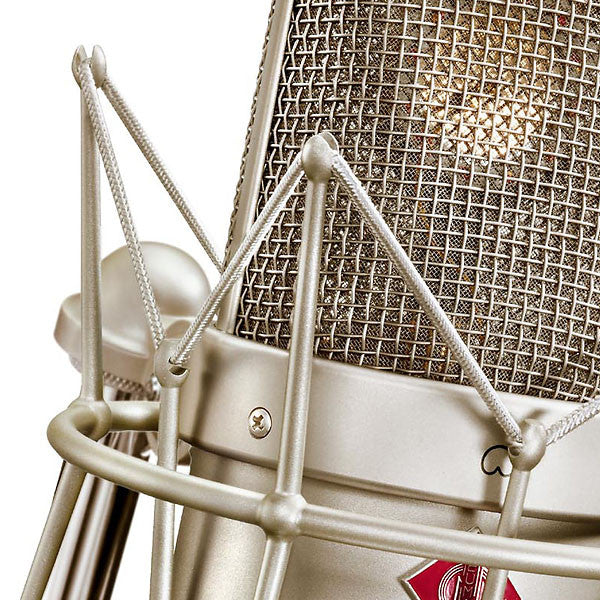

The entire interior structure is mounted elastically, to prevent the transmission of structure-borne noise. In addition, the capsule is mounted with a rubber shock mount.

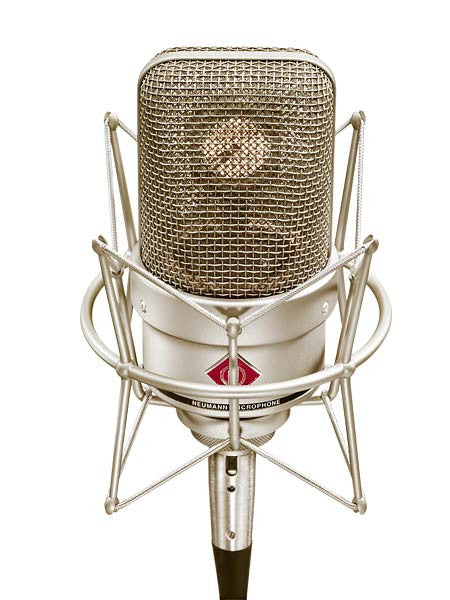

Due to the wide frequency response, the TLM 49 can also transmit extremely low-frequency signals without coloration. Of course this means that the microphone is also sensitive to noise signals such as vibration noise and wind noise in this frequency range. The TLM 49 is therefore supplied with the elastic suspension EA 3, which effectively protects the microphone from structure-borne noise. If the microphone is addressed at extremely close range, pop screen PS 15 or PS 20 a can be used in front of the microphone to provide protection against plosive sounds.

*The design of the microphone is a registered design of the Georg Neumann GmbH in certain countries.

 Features

Sound profile optimized for vocal performance

Pressure gradient transducer with the large-diaphragm capsule of the legendary U 47

Cardioid characteristic

Retro design

Transformerless output circuitry

Acoustically very open wire mesh headgrille

Complete set with elastic suspension



Technical Data

Acoustical operating principle

Pressure gradient transducer

Directional pattern

Cardioid

Frequency range

20 Hz ... 20 kHz

Sensitivity at 1 kHz into 1 kohm

13 mV/Pa

Rated impedance

50 ohms

Rated load impedance

1 kohms

Equivalent noise level, CCIR1)

23 dB

Equivalent noise level, A-weighted1)

12 dB-A

Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL)

71 dB

Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL)

82 dB

Maximum SPL for THD < 0.5 %2)

110 dB

Maximum SPL for THD < 5 %2)

129 dB

Maximum output voltage for THD < 5%2)

-1 dBu

Supply voltage (P48, IEC 61938)

48 V ± 4 V

Current consumption (P48, IEC 61938)

3.2 mA

Matching connector

XLR 3F

Weight

825 g

Diameter

78 mm

Length

165 mm

______________________________________________
1) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
2) measured as equivalent el. input signal, k2 dominant



Accessories

Adapter Cable AC 22
Adapter Cable AC 25
Adapter Cable AC 27
Auditorium Hanger MNV 87 (mt)
Battery Supply BS 48 i
Battery Supply BS 48 i-2
Boom Attachment M 212 c
Double Mount DS 120
Floor Stand MF 5
Microphone Cable IC 3 mt
Microphone Cable IC 4 (mt)
Popscreen PS 15
Popscreen PS 20 a
Power Supply N 248
Shock mount Z 26 mt
Stand M 210/1
Stand M 214/1
Stand M 252
Stand Extension STV 4/20/40/60
Stand Mount SG 2
Table Stand MF 3
Table Stand MF 4
Vertical Bar MZEF 8060/8120

Sku: TLM 49
Vendor: Neumann
