PreSonus Eris E66

Product Description
$349.95 $466.80
Ultra-wide, detailed stereo soundstage.

The Eris® E66 delivers an expanded and highly accurate frequency response and the widest stereo field available in its class. Its nested Midwoofer-Tweeter-Midwoofer (MTM, also known as “D’Appolito”) configuration offers improved off-axis response and spatial resolution. The result is a more consistent listening experience, smoother frequency response, and an ultra-wide, detailed stereo soundstage.

Consistent listening.

Sound waves radiating from the two components in a conventional speaker design can interfere with one another, creating peaks at some frequencies and dips at others, and these will vary depending on where the listener is relative to the speaker. In an MTM/D’Appolito configuration, component interference and the sonic inconsistencies that go with it are minimized. This affords listeners an ultra-wide sweet spot and a more consistent listening experience on- and off-axis.

Transparent and cohesive sound.

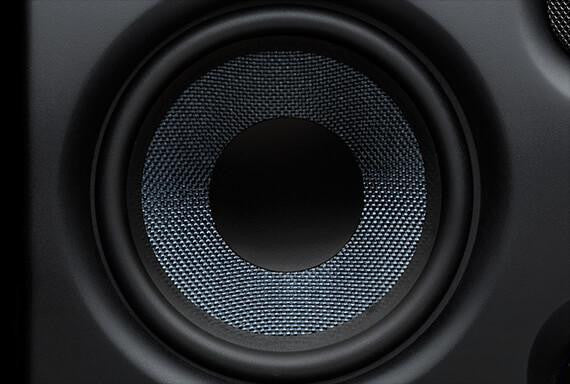

The E66 utilizes a pair of 6.5-inch, custom-woven, Kevlar® low-frequency drivers. This provides a more constant dispersion pattern throughout the frequency range, resulting in less time-smeared audio and cleaner overall sound. The weave and nature of the dual Kevlar woofers also helps break up reflected energy, so fewer delayed reflections reach the listener’s ear. In conjunction with the MTM/D’Appolito configuration, this helps create a transparent, cohesive sound.

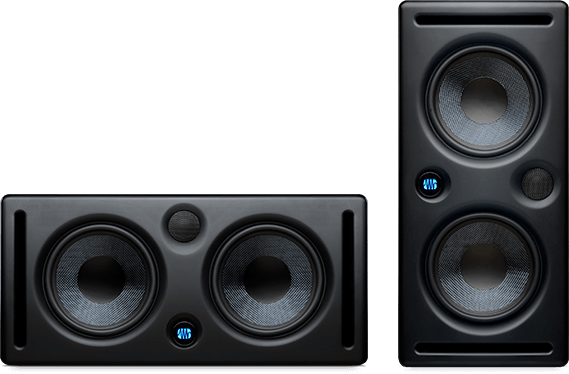

Horizontal or vertical—it’s up to you.

Many MTM configurations must be arrayed vertically, rather than horizontally, because vertical placement provides a clear, interference-free midrange and treble reproduction to either side, expanding the sweet spot. By bringing the midrange drivers closer together and raising the high-frequency driver, the E44 and E66 are able to perform optimally in both orientations. So, like all Eris speakers, the E44 and E66 let you position your speaker the way that works best for you.

You’re in control.

Today’s music producers deal with a wide variety of musical genres and often work in more than one location. That’s why Eris-series studio monitors offer extensive acoustic tuning controls. The three-position Acoustic Space switch helps to compensate for the boundary bass boost that can occur when a monitor is placed in a corner or near a wall. High and Mid controls help to further mitigate room anomalies. A Low Cutoff filter makes it easy to integrate a Temblor® subwoofer into your monitor setup.

Accuracy defined.

Like all PreSonus® studio monitors, the Eris E66 offers consistent, accurate listening and extensive user controls. The ultra-wide stereo image afforded by its MTM/D’Appolito design makes it an ideal solution for anyone who requires best-in-class spatial resolution. Hear it at your favorite PreSonus dealer.

Features

Components and construction

Dual 6.5-inch, custom-woven Kevlar® LF/midrange drivers produce dynamic, size-defying bass output
1.25-inch, silk-dome HF driver ensures smooth high-frequency performance that is never fatiguing to the ears

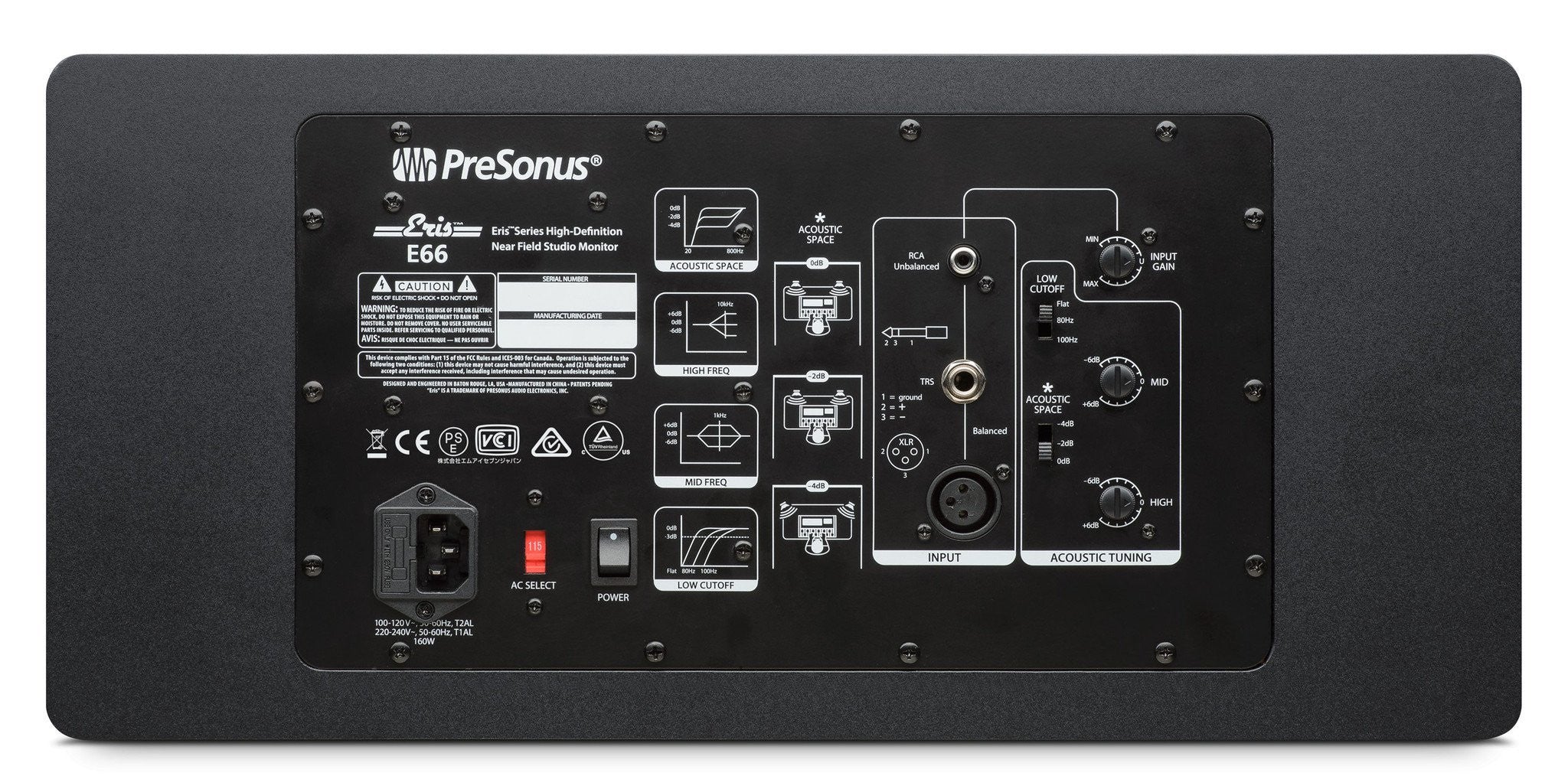

Balanced XLR, balanced ¼-inch TRS, and unbalanced RCA inputs provide flexibility for seamless integration into any environment
User controls

Acoustic tuning controls help to compensate for room anomalies, providing a consistent frequency response customized for your mix environment
Continuously variable HF and MF controls (-6 to +6 dB)
Low-cut filter (flat, 80 Hz, 100 Hz)
Acoustic Space settings (Flat, -2 dB, -4 dB) compensates for room placement
Power and safety

90W/140W Class A/B bi-amplification for an open, clear sound
RF interference, output-current limiting, over-temperature, and subsonic filter protection
Amplifier “soft start” feature eliminates popping on power-up
Internal power supply with IEC connector
Technical Specifications

Inputs

▪ 1- Balanced XLR
▪ 1- Balanced ¼” TRS
▪ 1- Unbalanced RCA

Performance

▪ Frequency Response 45 Hz – 22 kHz
▪ Crossover Frequency 2.4 kHz
▪ LF Amplifier Power 80W
▪ HF Amplifier Power 65W
▪ Peak SPL (@ 1 meter) 106 dB
▪ LF Driver Dual 6.5” Kevlar®
▪ HF Driver 1.25” silk dome
▪ Input Impedance 10 kΩ

User Controls

▪ Volume Range A-type taper
▪ MF Control Variable (-6 to +6 dB)
▪ HF Control Variable (-6 to +6 dB)
▪ Low Cut Flat, 80 Hz, 100 Hz
▪ Acoustic Space Flat, -2 dB, -4 dB

Protection

▪ RF interference
▪ Output-current limiting
▪ Over-temperature
▪ Turn-on/off transient
▪ Subsonic filter
▪ External mains fuse

Power

▪ 100-120V ⁓50/60 Hz
▪ 220-240V ⁓50/60 Hz

Cabinet

▪ Vinyl-laminated, medium-density fiberboard

Physical

▪ Width 18.1” (460 mm)
▪ Depth 8.5” (215 mm)
▪ Height 9.8” (250 mm)
▪ Weight 23.4 lbs (10.6 kg)
Vendor : PreSonus
