PreSonus R65-Single

Hear the most subtle details.

The R65 features a custom 6.8-square-inch Air Motion Transformer (AMT) tweeter that responds to the subtlest waveforms and the highest frequencies. This allows you to hear the “air” and the greater sense of space that is characteristic of audiophile recordings. The R65’s transparent and highly accurate sound makes it ideal for use in both commercial and home recording studios as well as broadcast and post-production environments.

Superior transient response.

In order to dampen resonance peaks at higher frequencies, conventional dome tweeters are injected with fluid to raise their mass, sacrificing transient response time. By contrast, the custom-designed AMT tweeter in the R65 uses an incredibly thin, folded Kapton® membrane (< 0.01 mm) with an inlayed aluminum circuit functioning as the voice coil, allowing the tweeter to move at the same instant as the electric current. The resulting reactive response time provides marked clarity and superior transient reproduction.
Wide, consistent stereo image.

An unfolded AMT tweeter diaphragm provides 8 to 13 times the projection area of a traditional 1-inch dome tweeter, enabling R65 monitors to provide a much wider stereo soundstage than traditional designs. At the same time, the R65 provides a very limited vertical dispersion, which helps to reduce reflections from the ceiling and desktop that can cause phase coherence issues. Because it’s less subject to room-anomaly interference, the R65 reacts predictably and sounds consistent from room to room.
Transparent sound.

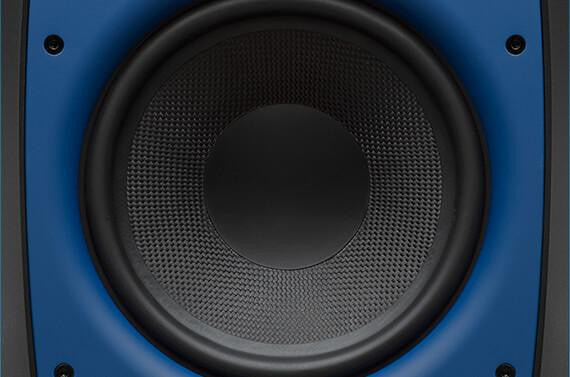

The R65 utilizes a 6.5-inch, custom-coated, woven Kevlar® low-frequency driver. This rigid cone maintains a more consistent dispersion pattern across its frequency response range. Biamped and driven by a 150W Class D amplifier—making the R series some of the most powerful monitors in their category—these monitors deliver an open, clear, and less fatiguing listening experience.
Have it your way.

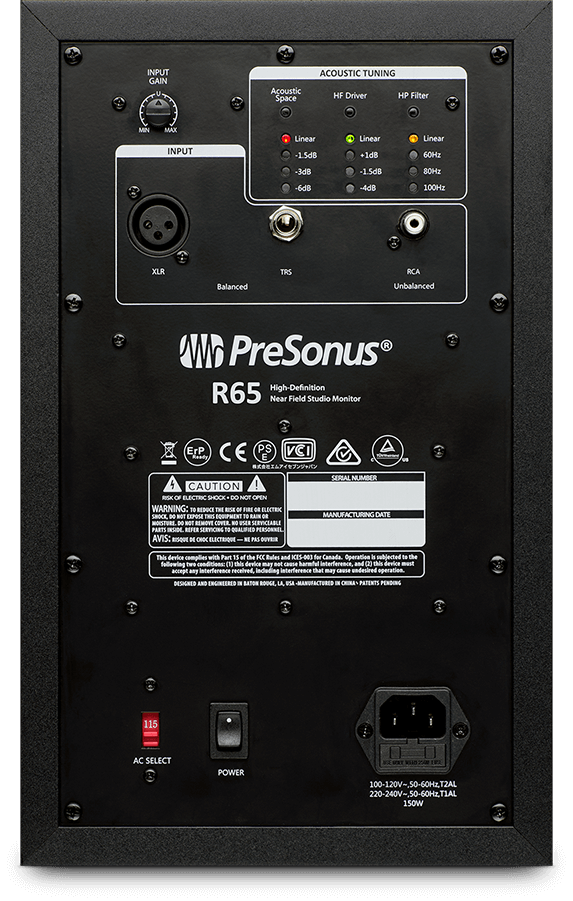

You can customize the R65 in several ways. It’s available with black or blue faceplates to fit your studio décor. With balanced XLR, balanced ¼” TRS, and unbalanced RCA line-level inputs, it’s easy to feed audio to your R65 monitors from a mixer, an interface, a media player, or almost any other line-level source. And R series monitors offer user-adjustable contour features for optimizing the monitors for your mixing space. This enables full integration into any studio environment.
Accuracy defined.

The R65’s AMT monitor design provides lifelike sonic reproduction that will allow you to hear the room in your recordings. Its transparent sound and responsive transient reproduction makes it an ideal solution for anyone who is mixing high-resolution audio. Hear the R65 at your favorite PreSonus® dealer.
Features
Components and Construction

2-way active AMT design provides articulate high-frequency response and wide stereo imaging
Custom-designed, 6.8-inch, AMT ribbon tweeter responds to the subtlest waveforms and the highest frequencies
6.5 Kevlar® LF drivers provide transparent mid- and low-frequency reproduction for clean sound and punchy bass
Balanced XLR and ¼-inch TRS plus unbalanced RCA inputs provide flexibility for seamless integration into any environment

User Controls

Acoustic Space settings (Linear, -1.5 dB, -3 dB, -6 dB) compensate for room placement

Power and Safety

Biamped 150W RMS (LF = 100W, HF = 50W), Class D power amplifier with switching power supply
RF interference, output current limiting, over temperature, turn-on/off transient, and subsonic filter protection
Energy Conservation Mode (with enable/disable) lowers standby power to <0.5W
External mains fuse
Internal power supply with IEC connector
Technical Specifications

Inputs

• 1- Balanced XLR
• 1- Balanced ¼” TRS
• 1- Unbalanced RCA

Performance

• Frequency Response 45 Hz – 22 kHz
• Crossover Frequency 2.7 kHz
• LF Amplifier Power 100W Class D
• HF Amplifier Power 50W Class D
• Peak SPL (@ 1 meter) 104 dB
• LF Driver 6.5” Kevlar®
• HF Driver Type AMT
• Diaphragm 6.8-inch2 (4,400 mm2)
• Equiv. Diaphragm ø 3” (75 mm)
• Input Impedance 20 kΩ balanced, 10 kΩ unbalanced
• SNR (typical, A-weighted) >100 dB

Power

• Factory preprogrammed 100-120V ～50/60 Hz or 220-240V ～50/60 Hz
• Standby Power < 0.5W

Protection

• RF interference
• Output-current limiting
• Over-temperature
• Turn-on/off transient
• Subsonic filter
• External mains fuse

User Controls

• Volume Range A-type taper
• HF Driver Linear, +1 dB, -3 dB, -6 dB
• Highpass filter Linear, 60 Hz, 80 Hz, 100 Hz
• Acoustic Space Linear, -1.5 dB, -3 dB, -6 dB
• Energy Conservation Mode On/Off/Query

Cabinet

• Vinyl-laminated, medium-density fiberboard

Physical

• Width 8” (203 mm)
• Depth 10.3” (261 mm)
• Height 13” (328 mm)
• Weight 14.7 lbs (6.65 kg)
