PreSonus Sceptre S8 -Single

The CoActual^® difference.

The single point source provided by coaxial designs offers unique advantages, thanks to their consistent acoustic center and symmetrical dispersion pattern. The proprietary CoActual design in the Sceptre S8 relies on custom coaxial drivers and advanced onboard DSP to create a seamless crossover transition and an even frequency response. The net result is exceptional 3D imaging and a natural listening experience that reveals the subtlest details.

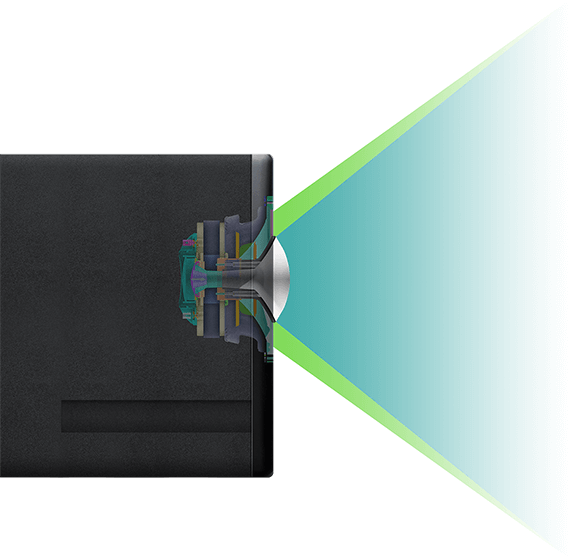

Symmetric response.

With a conventional two-way design that places the high-frequency driver directly above the low-frequency driver, where you are listening is critical to how well you will hear the audio. By contrast, the Sceptre S8’s frequency response is symmetrical horizontally and vertically, thanks to its coaxial design. When coupled with Fulcrum Acoustics Temporal Equalization algorithms, the result is a crisper stereo image, greater soundstage depth, more separation between components in a complex mix, and a less fatiguing listening experience.

Accurate transient reproduction.

Consonant sounds in speech, percussion, attack and decay of musical instruments are all transient signals. Transients consist of complex combinations of many frequencies. The phase relationships of these individual harmonics are a critical part of the characteristic “sound” of an instrument or voice. When they are reproduced accurately, the result is sonic transparency, definition, and intelligibility. By maintaining the transient reproduction, even at high volumes, CoActual speakers minimize distortion and produce clean, clear, consistent audio at any SPL.

Monitors you can customize.

Sceptres provide extensive user-adjustable contour features that let you optimize the monitors for your mixing space. This enables full integration into any studio environment. A four-position Acoustic Space switch helps to compensate for the boundary bass boost that occurs when the monitor is placed near a wall. A high-frequency driver level control helps to further mitigate room anomalies. An onboard highpass filter makes it easy to integrate a Temblor or other subwoofer into your monitor setup.

Accuracy defined.

The unique design of Sceptre S8 CoActual studio monitors delivers unmatched lifelike sonic reproduction and three-dimensional soundstage. Their ability to accurately reproduce transients and smooth frequency response will reveal subtle nuances that afford a truly honest listening experience. Hear them at your favorite

CoActual technology

• Combines DSP time-correction and point-source design for symmetrical soundstage and micro-definition imaging

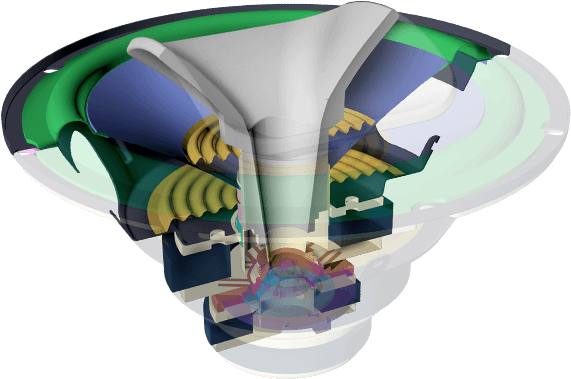

• Unique coaxial transducer integrates 8-inch midrange driver and 1-inch (25 mm), horn-loaded HF transducer with Coaxial Speaker Coherence Alignment
• Powerful DSP provides critical Temporal Equalization™ with multiple FIR filters

Acoustic-tuning controls

• HF Driver Adjust (0 dB, +1 dB, -1.5 dB, -4 dB)
• Acoustic Space settings (0 dB, -1.5 dB, -3 dB, -6 dB)
• High-pass filter (Off, 60 Hz, 80 Hz, and 100 Hz, -24 dB/octave slope)
• Sensitivity (+4 dBu to -10 dBV)

Power and safety

• 180W RMS, Class D biamplification with internal heat sink
• 102 dB maximum continuous SPL
• RF shielding, current-output limiting, and over-temperature protection
• Amplifier “soft start” feature eliminates popping on power-up
• Internal power supply with IEC connector
• Power switch with on/off LED

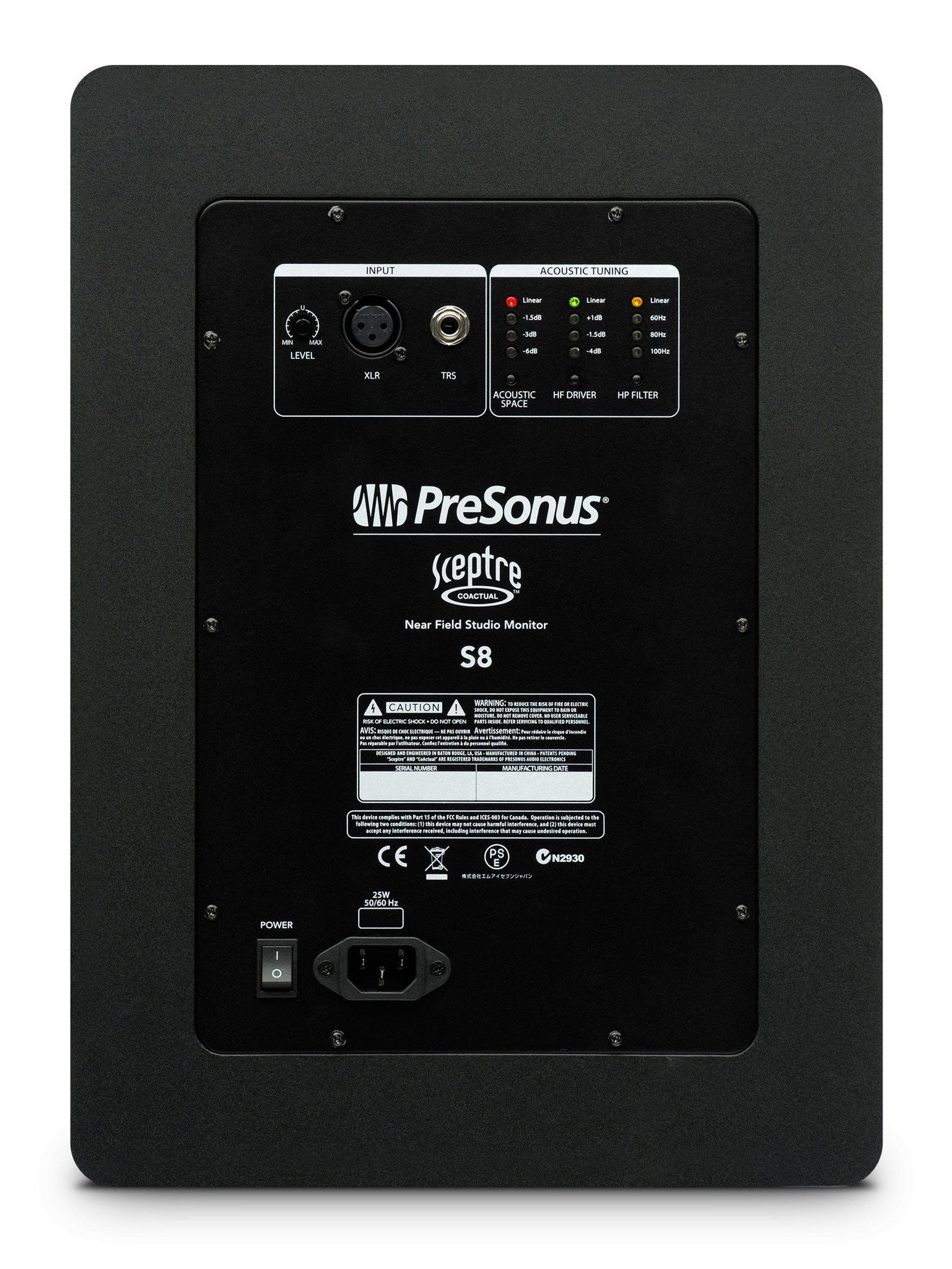

Inputs and outputs

• Balanced XLR and ¼-inch TRS line-level inputs with A-taper level control

  Technical Specifications

  Inputs

  • 1- Balanced XLR
  • 1- Balanced ¼” TRS

  Performance

  • Frequency Response (-3 dB) 46 Hz - 20 kHz
  • Frequency Response (-10 dB) 38 Hz - 23 kHz
  • Crossover Frequency 2.4 kHz
  • LF Amplifier Power (@ 4Ω) 90W
  • HF Amplifier Power (@ 4Ω) 90W
  • Peak SPL (@ 1 meter) 116 dB
  • LF Driver 8” glass-reinforced paper
  • HF Driver 1” diaphragm compression driver
  • Input Impedance 10 kΩ

  User Controls

  ▪ Volume Range A-type taper
  ▪ HF Control Flat, +1, -1.5, -4 dB
  ▪ Low Cut Flat, 60, 80 Hz, 100 Hz
  ▪ Acoustic Space Flat, -1.5, -3, -6 dB

  Protection

  • RF interference
  • Over-current
  • Over-voltage
  • Over-temperature
  • Turn-on/off transient
  • Subsonic filter
  • External mains fuse

  Power

  • 100-120V ~50/60 Hz or 220-240V ~50/60 Hz

  Cabinet

  • Vinyl-laminated, medium-density fiberboard

  Physical

  • Width 11.4” (290 mm)
  • Depth 13.3” (338 mm)
  • Height 15.75” (400 mm)
  • Weight 24.25 lbs (11 kg)
