24 input channels, each with:
- XLR mic and ¼” line inputs
- High-headroom Class A XMAX mic preamplifiers
- Analog ¼" inserts (rear panel)
- Trim control with –20 to +20 dBV line / -15 to +65 dBu mic gain range (80 dB!)
- +48V phantom power switch for condenser microphones
- Digital Audio Input Select
- 100 mm precision faders
- Phase reverse, highpass filter, noise gate/expander, compressor, 4-band EQ, limiter—all with A/B and Quick Null
- Cascade two StudioLive® AI mixers of any frame size to create custom-sized mixing consoles.
- 40 in x 26 out FireWire s800 direct digital recording interface (24-bit/44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz) compatible with Apple Thunderbolt to FireWire Adapter
- Compatible with ASIO and Core Audio; works with Logic®, Pro Tools, Cubase, Sonar™, Digital Performer™, Live, and others
- 20 dedicated mix buses for easy configuration
- 10 aux buses with analog outputs
- 4 internal FX buses
- 4 subgroups with analog outputs
- Stereo main bus with analog outputs
- Access to Fat Channel functions
Four subgroup buses, each with:
- Balanced TRS output
- Solo
- Mute
- Noise gate/expander, compressor, 4-band EQ, limiter — all with A/B and Quick Null
- 300 ms output delay
Ten aux buses, each with:
- Balanced TRS output
- Solo
- Mute
- Pre1/Pre2/post-fader send
- Output-level control
- Highpass filter, noise gate/expander, compressor, 4-band EQ, limiter — all with A/B and Quick Null
- 31-band graphic EQ with A/B and Quick Null
- Available sources: 24 input channels, Aux In A and B, Tape Input, Main digital-audio return, FXA, FXB, FXC, FXD, Talkback
Four internal effects sends (two reverbs, two delay effects), each with:
- Mute
- Pre1/Pre2/post-fader send
- Output-level control
- Highpass filter, noise gate/expander, compressor, 4-band EQ, limiter — all with A/B and Quick Null
Stereo main bus with:
- Balanced XLR outputs
- Balanced TRS outputs
- Mono sum XLR output
- Noise gate/expander, compressor, 4-band EQ, limiter — all with A/B and Quick Null
- 31-band graphic EQ with A/B and Quick Null
Master section
- Aux Input A and B
- Level Control and stereo pan
- Noise gate/expander, compressor, 4-band EQ, limiter with A/B and Quick Null
Talkback System
- Mic Level control
- Output Select (Auxes, Main)
- Talk button
- Rear-panel XLR mic input with trim control and continuous 48V phantom power
2-Track in
- Level control
- Tape Input to Mains button
- Main Digital Audio Return on/off
Solo bus
- Cue Mix volume control
- PFL/AFL and Solo In Place (SIP) buttons
- Latch, Radio, and CR Modes
- Solo Clear
Monitor bus
- Headphone-output level control
- Control-room monitor-level control
- Solo Bus to Monitor button
- Tape Input to Monitor button
- Main Digital Audio Return to Monitor button
- Main Mix to Monitor button
Fat Channel with rotary encoders:
- Pan with dedicated 15-LED display
- Stereo link for input channels, aux buses, and subgroups
- Phase reverse (input channels only)
- High-pass filter: -6 dB/oct., sweepable from Off to 1 kHz (main channels and aux's only)
- Gate: Threshold: 0 to -84 dB; Attack: 0.02 to 500 ms; Release: 0.05 to 2 sec; Bandpass Key Filter: 40 Hz to 16 kHz; second-order resonant bandpass filter Q (0.7) with Key Listen function
- Compressor: Threshold -56 to 0 dB; Ratio 1:1 to 14:1, LIM=∞:1; Attack 0.2 to 150 ms; Release 2.5 to 900 ms; Makeup Gain 0 to 28 dB; Soft Knee switch; Auto Mode with 10 ms Attack and 150 ms Release
- 4-band fully parametric equalizer
- Low EQ: sweepable from 36 Hz to 465 Hz, ±15 dB, switchable shelf or peaking
- Low Mid EQ: sweepable from 90 Hz to 1.2 kHz, ±15 dB, variable Q 0.1 to 4.0
- High Mid EQ: sweepable from 380 Hz to 5 kHz, ±15 dB, variable Q 0.1 to 4.0
- High EQ: sweepable from 1.4 kHz to 18 kHz, ±15 dB, switchable shelf or peaking
- Master EQ On/Off button
- Limiter: variable Threshold -28 dBfs to 0, ∞:1 Ratio
- Alt EQ & Dyn button for quick A/B comparisons of two complete sets of Fat Channel settings for each channel and bus
- Output Assign: 4 subgroups and main
- All settings can be copied among channels and buses and can be saved as user presets.
- 50 channel-strip presets for drums, bass, guitars, keyboards, and vocals
- Quick Parameter Null easily zeroes out any Fat Channel parameter
Four internal digital effects-processors (two reverbs, two delays), each with 50 customizable presets
Twelve 31-band graphic equalizers
- 6 Quick Scene buttons for instant Scene save/recall—like “speed dial” for Scenes
- Automatic Global AutoStore
- Customizable naming (for example, "Saturday Gig" or "Main Worship Service")
Individual channel-strip setting storage
- Up to 48 at a time, plus…
- 50 factory presets for instruments and vocal
- Copy and Paste between channels
- Can be browsed by category (DRM, VOX, HRN, GTR, BAS, MISC, SYS)
Lockout mode to keep inspired amateurs from changing your settings
Metering/Displays
Input/Output
- 24 x 16- LED Fat Channel matrix:
- Pre-dynamics/pre-fader input
- Post-dynamics/post-fader output
- Gain reduction
- Aux 1-14 and EFX A-D output
- Fader-position recall
- 8 x 15-LED main meter bank
- Selected channel level
- Selected channel gain reduction
- Sub buses 1 to 4
- Main stereo outputs
- 15-LED horizontal Pan/Balance display
- 64 x 194 LCD matrix
- Effects parameters
- Scene creation, storage, and recall
- System menus
- Channel Info page with custom naming
- GEQ Select
- 2-digit Channel Selected display
- 24 main inputs, each with XLR mic, ¼" line, and ¼" inserts
- 2 ¼" balanced stereo (L/R) aux inputs
- 1 XLR talkback-mic input with XMAX™ preamp, phantom power (always on), and level control
- Unbalanced RCA stereo (L/R) tape inputs and outputs
- XLR stereo (L/R) main outputs with level control
- ¼" balanced stereo (L/R) main outputs
- XLR mono output with level control
- ¼" balanced stereo (L/R) control-room outputs
- ¼" headphone output
- 4 ¼" balanced subgroup outputs
- 10 ¼" balanced aux outputs
- 24 pre-insert, balanced direct outputs, Ch. 1-8, 9-16, 17-24 on DB25 sockets
- Dedicated USB 2.0 port and included Wi-Fi LAN adapter for wireless communications
- Installed Option Card with:
- S/PDIF digital out
- 2 FireWire S800 ports (fully compatible with Apple Thunderbolt to FireWire Adapter)
- Optional Networking cards
- Dante™ (SL-Dante-Mix)
- AVB (SL-AVB-Mix)
Integrated software
- UC Surface Control Software with Smaart Measurement Technology™
- Studio One® Artist Digital Audio Workstation software for Mac® and Windows®
- Capture™ multitrack recording software for Mac and Windows
- QMix®-AI aux-control software for iPhone® and iPod® touch available free from Apple App Store
Digitalia
- High-definition Burr-Brown analog-to-digital converters (118 dB dynamic range)
- Unlimited-headroom, 32-bit floating point, digital mixing and effects processing
- Internal sample frequency 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Physical
- Rugged, non-flex steel chassis
- 100 mm long-throw faders
- Military-grade, quick-touch buttons
- BNC 12V lamp socket
- Optional dust covers available
Technical Specifications
Features
24 input channels, each with:
• XLR mic and ¼” line inputs
• High-headroom Class A XMAX mic preamplifiers
• Analog ¼" inserts (rear panel)
• Trim control with –20 to +20 dBV line / -15 to +65 dBu mic gain range (80 dB!)
• +48V phantom power switch for condenser microphones
• Digital Audio Input Select
• 100 mm precision faders
• Phase reverse, highpass filter, noise gate/expander, compressor, 4-band EQ, limiter—all with A/B and Quick Null
• Cascade two StudioLive® AI mixers of any frame size to create custom-sized mixing consoles.
• 40 in x 26 out FireWire s800 direct digital recording interface (24-bit/44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz) compatible with Apple Thunderbolt to FireWire Adapter
• Compatible with ASIO and Core Audio; works with Logic®, Pro Tools, Cubase, Sonar™, Digital Performer™, Live, and others
• 20 dedicated mix buses for easy configuration
• 10 aux buses with analog outputs
• 4 internal FX buses
• 4 subgroups with analog outputs
• Stereo main bus with analog outputs
• Access to Fat Channel functions
Four subgroup buses, each with:
• Balanced TRS output
• Solo
• Mute
• Noise gate/expander, compressor, 4-band EQ, limiter — all with A/B and Quick Null
• 300 ms output delay
Ten aux buses, each with:
• Balanced TRS output
• Solo
• Mute
• Pre1/Pre2/post-fader send
• Output-level control
• Highpass filter, noise gate/expander, compressor, 4-band EQ, limiter — all with A/B and Quick Null
• 31-band graphic EQ with A/B and Quick Null
• Available sources: 24 input channels, Aux In A and B, Tape Input, Main digital-audio return, FXA, FXB, FXC, FXD, Talkback
Four internal effects sends (two reverbs, two delay effects), each with:
• Mute
• Pre1/Pre2/post-fader send
• Output-level control
• Highpass filter, noise gate/expander, compressor, 4-band EQ, limiter — all with A/B and Quick Null
Stereo main bus with:
• Balanced XLR outputs
• Balanced TRS outputs
• Mono sum XLR output
• Noise gate/expander, compressor, 4-band EQ, limiter — all with A/B and Quick Null
• 31-band graphic EQ with A/B and Quick Null
Master section
• Aux Input A and B
• Level Control and stereo pan
• Noise gate/expander, compressor, 4-band EQ, limiter with A/B and Quick Null
Talkback System
• Mic Level control
• Output Select (Auxes, Main)
• Talk button
• Rear-panel XLR mic input with trim control and continuous 48V phantom power
2-Track in
• Level control
• Tape Input to Mains button
• Main Digital Audio Return on/off
Solo bus
• Cue Mix volume control
• PFL/AFL and Solo In Place (SIP) buttons
• Latch, Radio, and CR Modes
• Solo Clear
Monitor bus
• Headphone-output level control
• Control-room monitor-level control
• Solo Bus to Monitor button
• Tape Input to Monitor button
• Main Digital Audio Return to Monitor button
• Main Mix to Monitor button
Fat Channel with rotary encoders:
• Pan with dedicated 15-LED display
• Stereo link for input channels, aux buses, and subgroups
• Phase reverse (input channels only)
• High-pass filter: -6 dB/oct., sweepable from Off to 1 kHz (main channels and aux's only)
• Gate: Threshold: 0 to -84 dB; Attack: 0.02 to 500 ms; Release: 0.05 to 2 sec; Bandpass Key Filter: 40 Hz to 16 kHz; second-order resonant bandpass filter Q (0.7) with Key Listen function
• Compressor: Threshold -56 to 0 dB; Ratio 1:1 to 14:1, LIM=∞:1; Attack 0.2 to 150 ms; Release 2.5 to 900 ms; Makeup Gain 0 to 28 dB; Soft Knee switch; Auto Mode with 10 ms Attack and 150 ms Release
• 4-band fully parametric equalizer
• Low EQ: sweepable from 36 Hz to 465 Hz, ±15 dB, switchable shelf or peaking
• Low Mid EQ: sweepable from 90 Hz to 1.2 kHz, ±15 dB, variable Q 0.1 to 4.0
• High Mid EQ: sweepable from 380 Hz to 5 kHz, ±15 dB, variable Q 0.1 to 4.0
• High EQ: sweepable from 1.4 kHz to 18 kHz, ±15 dB, switchable shelf or peaking
• Master EQ On/Off button
• Limiter: variable Threshold -28 dBfs to 0, ∞:1 Ratio
• Alt EQ & Dyn button for quick A/B comparisons of two complete sets of Fat Channel settings for each channel and bus
• Output Assign: 4 subgroups and main
• All settings can be copied among channels and buses and can be saved as user presets.
• 50 channel-strip presets for drums, bass, guitars, keyboards, and vocals
• Quick Parameter Null easily zeroes out any Fat Channel parameter
Four internal digital effects-processors (two reverbs, two delays), each with 50 customizable presets
Twelve 31-band graphic equalizers
6 Quick Scene buttons for instant Scene save/recall—like “speed dial” for Scenes
Automatic Global AutoStore
Customizable naming (for example, "Saturday Gig" or "Main Worship Service")
Individual channel-strip setting storage
• Up to 48 at a time, plus…
• 50 factory presets for instruments and vocal
• Copy and Paste between channels
• Can be browsed by category (DRM, VOX, HRN, GTR, BAS, MISC, SYS)
Lockout mode to keep inspired amateurs from changing your settings
Metering/Displays
Input/Output
• 24 x 16- LED Fat Channel matrix:
• Pre-dynamics/pre-fader input
• Post-dynamics/post-fader output
• Gain reduction
• Aux 1-14 and EFX A-D output
• Fader-position recall
• 8 x 15-LED main meter bank
• Selected channel level
• Selected channel gain reduction
• Sub buses 1 to 4
• Main stereo outputs
• 15-LED horizontal Pan/Balance display
• 64 x 194 LCD matrix
• Effects parameters
• Scene creation, storage, and recall
• System menus
• Channel Info page with custom naming
• GEQ Select
• 2-digit Channel Selected display
• 24 main inputs, each with XLR mic, ¼" line, and ¼" inserts
• 2 ¼" balanced stereo (L/R) aux inputs
• 1 XLR talkback-mic input with XMAX™ preamp, phantom power (always on), and level control
• Unbalanced RCA stereo (L/R) tape inputs and outputs
• XLR stereo (L/R) main outputs with level control
• ¼" balanced stereo (L/R) main outputs
• XLR mono output with level control
• ¼" balanced stereo (L/R) control-room outputs
• ¼" headphone output
• 4 ¼" balanced subgroup outputs
• 10 ¼" balanced aux outputs
• 24 pre-insert, balanced direct outputs, Ch. 1-8, 9-16, 17-24 on DB25 sockets
• Dedicated USB 2.0 port and included Wi-Fi LAN adapter for wireless communications
• Installed Option Card with:
• S/PDIF digital out
• 2 FireWire S800 ports (fully compatible with Apple Thunderbolt to FireWire Adapter)
• Optional Networking cards
• Dante™ (SL-Dante-Mix)
• AVB (SL-AVB-Mix)
•
Integrated software
• UC Surface Control Software with Smaart Measurement Technology™
• Studio One® Artist Digital Audio Workstation software for Mac® and Windows®
• Capture™ multitrack recording software for Mac and Windows
• QMix®-AI aux-control software for iPhone® and iPod® touch available free from Apple App Store
Digitalia
• High-definition Burr-Brown analog-to-digital converters (118 dB dynamic range)
• Unlimited-headroom, 32-bit floating point, digital mixing and effects processing
• Internal sample frequency 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Physical
• Rugged, non-flex steel chassis
• 100 mm long-throw faders
• Military-grade, quick-touch buttons
• BNC 12V lamp socket
• Optional dust covers available

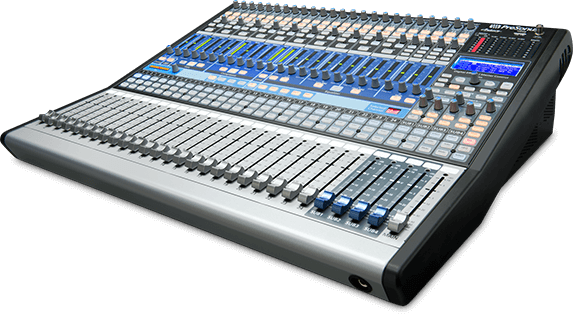

StudioLive 24.4.2AI
Computer system requirements:
Below are the minimum computer-system requirements for UC Surface.
Apple iPad
• iPad® Air, iPad mini with Retina display, iPad (4th generation), iPad mini, iPad (3rd generation), or iPad 2
• iOS® 7.03 or later
Mac
• Mac® OS X 10.8 64-bit or later
• Intel® Core™ 2 Duo processor (Intel Core i3 or faster recommended)
• 4 GB RAM (8 GB or more recommended)
Windows
• Windows® 7 x64/x86 SP1, Windows 8 x64/x86, Windows 10 x64/x86
• Intel Core 2 Duo processor (Intel Core i3 or faster recommended)
• 4 GB RAM (8 GB or more recommended)
Mac and Windows Systems
• Wired or wireless network connection
• Internet connection
• For Capture™ and Studio One®:
• FireWire S800 (IEEE 1394b) port
• Internal or external 7200 RPM storage drive highly recommended
• Monitor with 1280x800 resolution
• Note that the speed of your processor, amount of RAM and size and speed of your hard drive will greatly affect the overall performance of your recording system. Also, a more powerful system (faster processor with more RAM) will allow for lower latency (signal delay) than you might experience while monitoring audio or MIDI signals.
Technical Specifications
• Microphone Preamps (XLR Balanced)
• Type XLR Female, Balanced
• Frequency Response to Direct Output 20 Hz to 40 kHz ±0.5 dBu
• Frequency Response to Main Output 20 Hz to 20 kHz ±0.5 dBu
• Input Impedance (Balanced) 1 kΩ
• THD to Direct Output < 0.007%, +4 dBu, 20-20 kHz, unity gain, unwtd
• THD to Main Output <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
• EIN to Direct Output +125 dB unwtd, +130 dB A-wtd
• S/N Ratio to Direct Output 105 dB
• S/N Ratio to Main Output 94 dB
• Common Mode Rejection Ratio 65 dB
• Gain Control Range -15 dB to +65 dB (± 1 dB)
• Maximum Input Level (unity gain) +22 dBu
• Phantom Power +48 VDC
Line Inputs
• Type ¼" TRS Female, balanced mono
• Frequency Response to Direct Outputs 10-40 kHz, 0 / -0.5 dBu
• Frequency Response to Main Outputs 20-20 kHz, ±0.5 dBu
• Input Impedance 10 kΩ
• THD to Direct Output <0.007%, +4 dBu, 20-20 kHz, unity gain, unwtd
• THD to Main Output <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
• S/N Ratio to Direct Output 105 dB
• S/N Ratio to Main Output 94 dB
• Gain Control Range (±1 dB) -20 dB to +20 dB
• Maximum Input level (unity gain) +22 dBu
Tape Inputs
• Type RCA Female, unbalanced (stereo pair)
• Maximum Input Level +22 dBu
Auxiliary Inputs
• Type ¼" TRS Female, balanced (2 stereo pairs)
• Maximum Input Level +22 dBu
Main Outputs
• Type Male, balanced (stereo pair); ¼" TRS Female, balanced (stereo pair); XLR Male, balanced (mono)
• Rated Output Level +24 dBu
• Output Impedance 100Ω
Aux Outputs
• Type ¼" TRS Female, balanced (mono)
• Rated Output Level +18 dBu
• Output Impedance 100Ω
Subgroup Outputs
• Type ¼" TRS Female, balanced (mono)
• Rated Output Level +18 dBu
• Output Impedance 100Ω
Tape Outputs
• Type RCA Female, unbalanced (stereo pair)
• Rated Output Level +18 dBu
• Output Impedance 100Ω
Control Room Outputs
• Type ¼" TRS Female, balanced (stereo pair)
• Rated Output Level +18 dBu
• Output Impedance 100Ω
System Crosstalk
• Input to Output (Ref = +4 dBu, 20 Hz-20 kHz, unwtd) -90 dBu
• Adjacent Channels (Ref = +4 dBu, 20 Hz-20 kHz, unwtd) -87 dBu
Noise Gate / Expander
• Threshold Range -84 dB to 0 dB
• Attack Time 0.02s to 500 ms / 0.5 ms
• Release Time 0.05s to 2s
• Expander Attenuation Range 2:1
• Gate Attenuation Range -84 dB to 0 dB / ∞
• Key Listen Filter 2nd-order resonant bandpass; Q=0.7; OFF, 40 Hz-16 kHz
Limiter
• Threshold -56 dB to 0 dB / -28 dBFS
• Ratio ∞:1
• Attack 20 ms
• Hold 10 ms
• Release 20 ms
Compressor
• Threshold Range -56 dB to 0 dB
• Ratio 1:1 to 14:1
• Attack Time 0.2 ms to 150 ms
• Release Time 40 ms to 1000 ms
• Auto Attack and Release Attack = 10 ms, Release = 150 ms
• Curve Types hard and soft knee
Parametric EQ
• Type 2nd-order shelving filter (Q = 0.55)
• Low (Lowpass or Bandpass) 36 to 465 Hz, ±15 dB
• Low Mid 90 Hz to 1.2 kHz, ±15 dB
• High Mid 380 Hz to 5 kHz, ±15 dB
• High (Highpass or Bandpass) 1.4 kHz to 18 kHz, ±15 dB
• Q 0.1 to 4
Graphic EQ
• 31-Band 1/3rd Octave Controls Curve-fitting algorithm
• Gain/Attenuation ±15 dB
Digital Audio
• ADC Dynamic Range (A-wtd, 48 kHz) 118 dB
• DAC Dynamic Range (A-wtd, 48 kHz) 118 dB
• FireWire s800, 800 Mb/s
• Internal Processing 32-bit, floating point
• Sampling Rate 44.1, 48 kHz
• A/D/A Bit Depth 24
• Reference Level for 0 dBFS +18 dBu
Clock
• Jitter <20 ps RMS (20 Hz - 20 kHz)
• Jitter Attenuation >60 dB (1 ns in ≈ 1 ps out)
Power/Environmental
• Connector IEC
• Input-Voltage Range 100 to 230V, 50-60 Hz
• Power Requirements 200W
• Temperature Range 0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit
Physical
• Length 21.31" (54.13 cm)
• Width (chassis only) 25.19" (63.98 cm)
• Maximum Height 7.02" (17.82 cm)
• Weight 30 lbs. (13.6 kg)
