Prodipe PACK UHF DSP SB21 LANEN

Product Description
$255.23
Maximum quantity available reached.
Use the new UHF B210 DSP bodypacks to reproduce the musicality of your instruments and turn wireless into wired!

Description

PACK UHF DSP SB21 LANEN
This pack consists of following elements:

✓ A wireless system UHF B210 DSP SOLO
✓ An instrument mic SB21 Sax & Brass Lanen

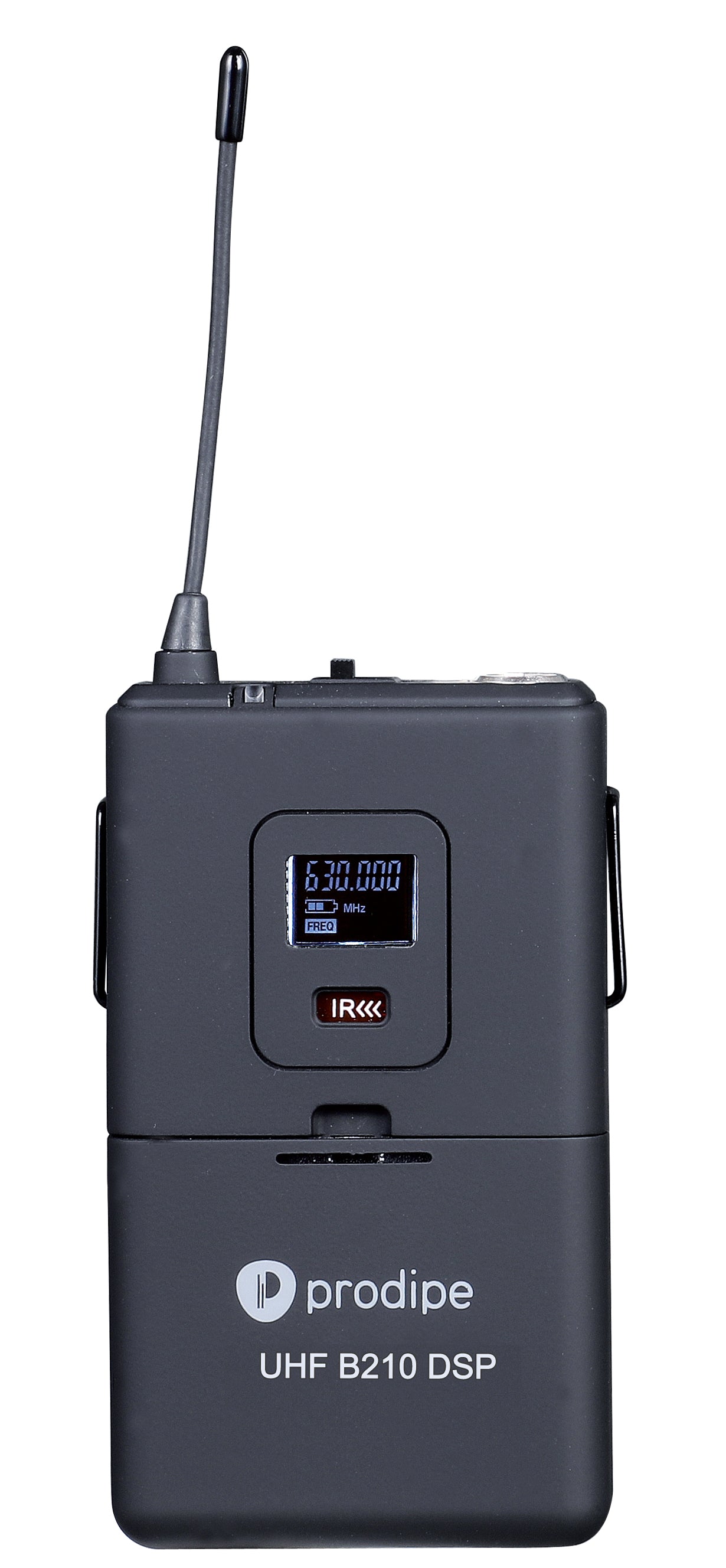

UHF B210 DSP Solo

Use the new UHF B210 DSP bodypacks to reproduce the musicality of your instruments and turn wireless into wired!

We've added a new, high performing Digital Signal Processor (DSP) to manage the frequencies in all our wireless systems.

DSP technology gives greater wireless stability and precision, practically matching the type of sound quality you would expect from a wired system. Relish the uncompromising sound balance when you sing or play in wireless.

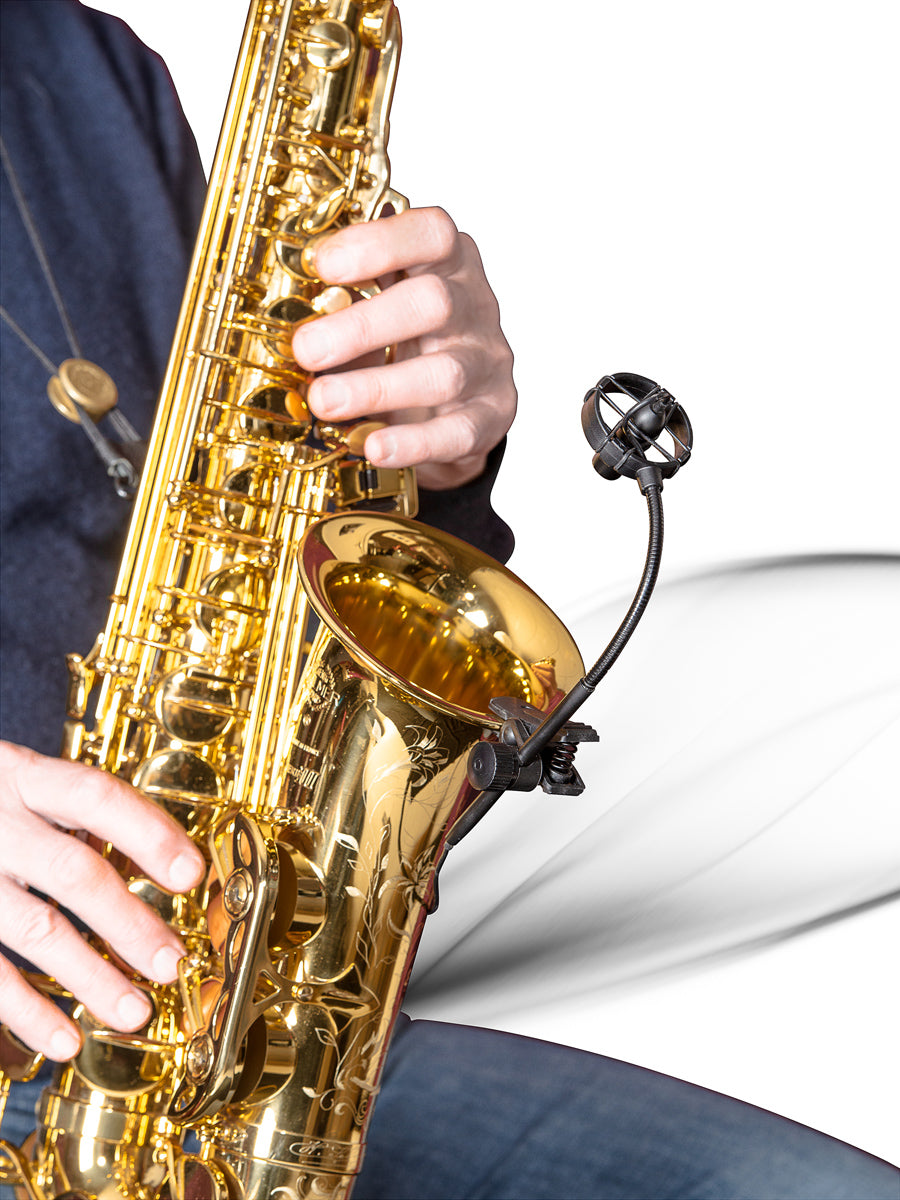

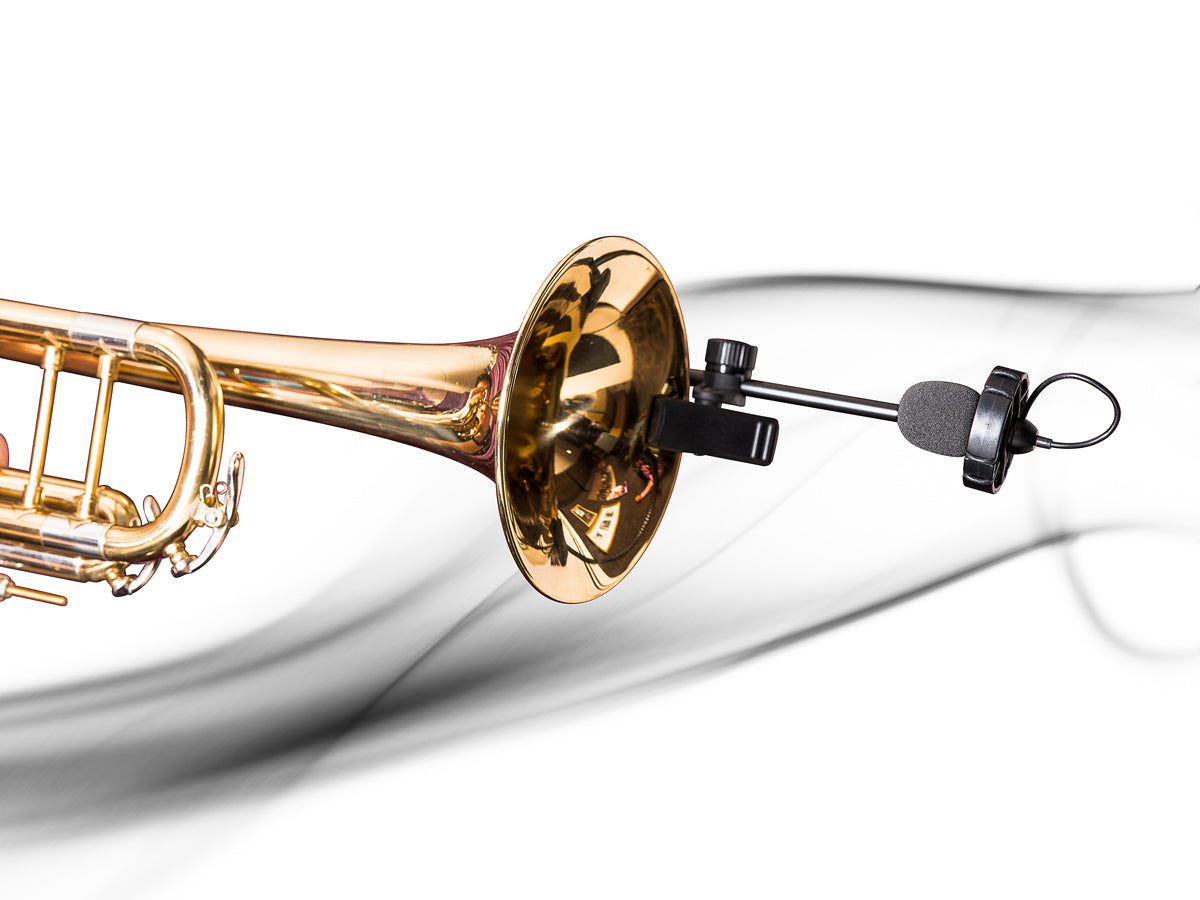

SB21 Sax & Bass Lanen : the SB21 Lanen Sax & Brass has been designed for alto saxophones, tenor saxophones, trumpets, trombones, tubas, French horns et all other brass instruments.

✓ Excellent natural sound.
✓ Very high acceptable sound pressure level (140 dB).
✓ UHF compatible
✓ Flexible gooseneck for fast, easy mounting.
✓ Very high level of protection from instrument vibration.
✓ Mini XLR to XLR connector adaptor ensures that the mic lead is properly positioned on your instrument (48V phantom power supply required for wired connection).

SPECIFICATIONS

Brand : Prodipe

SB21 Sax & Brass mic:

✓ Kind of microphone : Condenser
✓ Directivity : Cardioid
✓ Output impedance : 2.2 KΩ
✓ Sensitivity : -47dB ±3dB (0dB=1V/Pa at 1KHz)
✓ Pression max. SPL : 140dB
✓ Signal - noise : 68dB
✓ Frequency response : 50Hz - 20KHz

System - principal fonctions:

✓ Transmission type: UHF
✓ Bandwith: 630 - 680MHz
✓ Frequencies: 2 x 100
✓ Dynamic: >90dB
✓ Harmonic distorsion: <0.1%
✓ Frequency response: 30Hz at 20KHz
✓ Range: 60 M

System - Transmitter :

✓ Power: 10mW
✓ Modulation: FM
✓ Sensitivity: RX < -94dBm
✓ Power source: LR6 (AA) 1.5V ×2 (approx. 8h)

System - Receiver:

✓ Power supply: AC100~240V (50-60Hz)
✓ Voltage: 12V S/N RATIO >96dB
✓ Unbalanced audio output: 1 x Jack 6.35 mm
✓ Balanced audio output: 1 x XLR
Sku: PROUHFSB21DSPPAK
Vendor: Prodipe
