Prodipe UHF DSP AL21 PACK SOLO

Digital Signal Processor (DSP) technology for your accordion.

Description

UHF DSP AL21 PACK SOLO

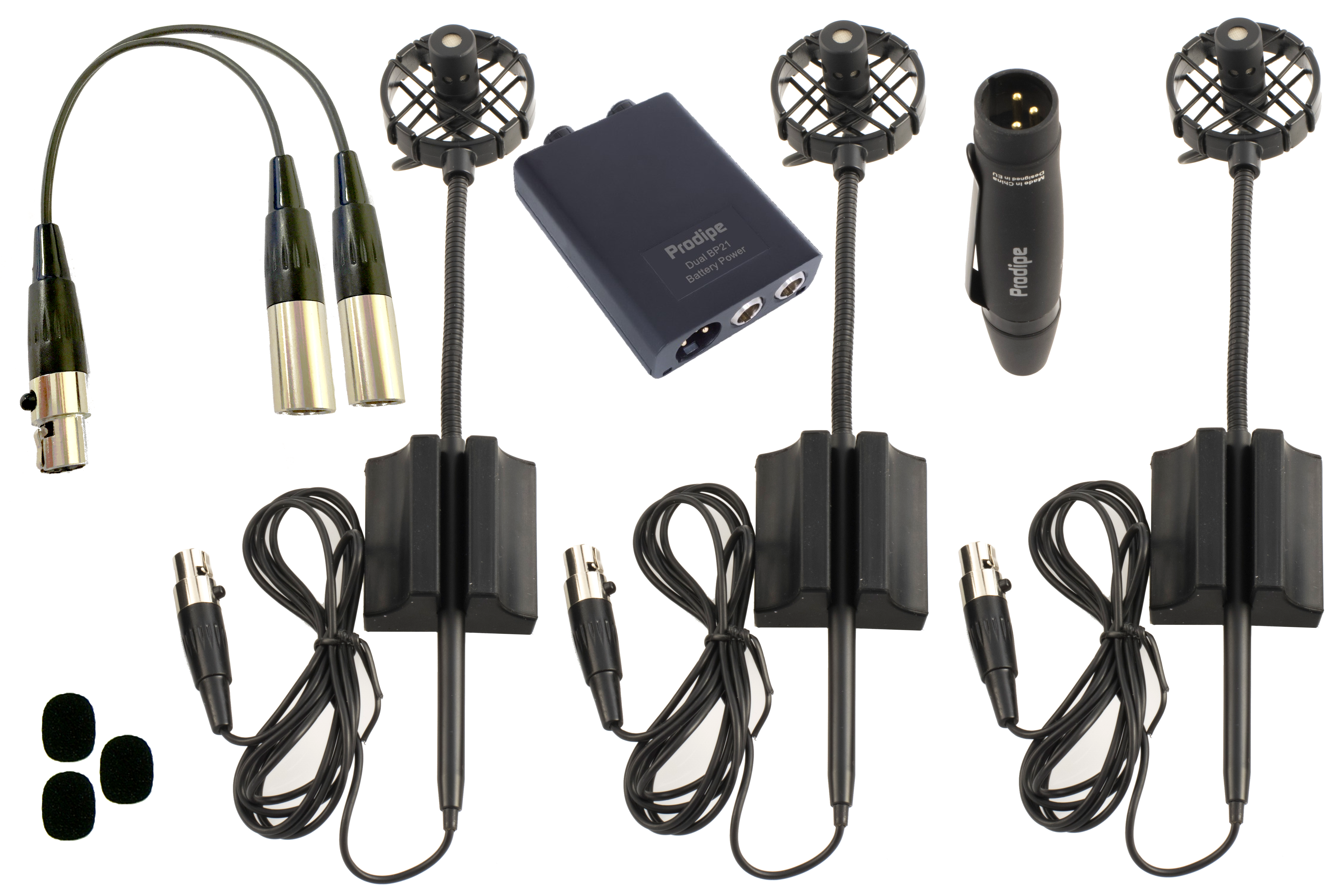

This pack contains the following elements:

✓ The AL21 Romanelli Accordion three mics pack
✓ The wireless system UHF B210 DSP Solo

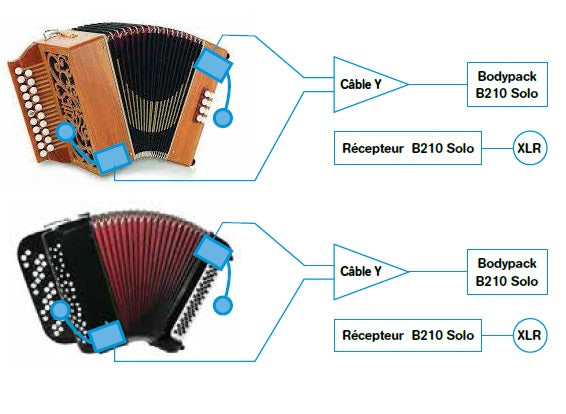

Combine your AL21 Romanelli mic pack with the UHF B210 DSP Solo for wireless sound reproduction of your diatonic/chromatic accordion using two mics. You can also connect two AL21 mics directly to the UHF B210 Solo bodypack using a Y-cable with the AL21 mic pack.

SPECIFICATIONS
Brand : Prodipe

AL21 specifications:

• Directivity: cardioid
• Output Impedance: 2.2 KΩ
• Sensitivity: -47dB ±3dB (0dB=1V/Pa at 1KHz)
• Cable length: 1 m
• Pression max. SPL: 140dB
• Signal - noise: 68dB
• Frequency response: 50Hz - 20KHz

UHF DSP AL21 PACK SOLO sytem's main functions:

• Type de transmission : UHF
• Bande passante : 630 - 680MHz
• Fréquences : 1 x 100
• Dynamique : >90dB
• Distorsion harmonique : <0.1%
• Réponse en fréquence : 30Hz à 20KHz
• Portée : 60 M

Système - Transmetteur :

• Puissance : 10mW
• Type de modulation : FM
• Sensibilité : RX < -94dBm
• Alimentation : LR6 (AA) 1.5V × 2 (environ 8h)

Système - Récepteur :

• Puissance alimentation : AC100~240V (50-60Hz)
• Voltage : 12V
• S/N ratio : >96dB
• Sortie audio asymétrique : Jack 6.35 mm
• Sortie audio symétrique : XLR
