RME QuadMic II
RME QuadMic II
RME QuadMic II
RME QuadMic II

RME QuadMic II

Price
$559
Taxes and shipping calculated at checkout

Stock Notification

Get notified when this product is available again

Frequently Bought Together

Have a question?
Excellent signal/noise ratio, lowest harmonic distortions and wide gain range make the QuadMic II a first choice for superior studio recordings. QuadMic II is battery powerable and thus excellent for remote applications.

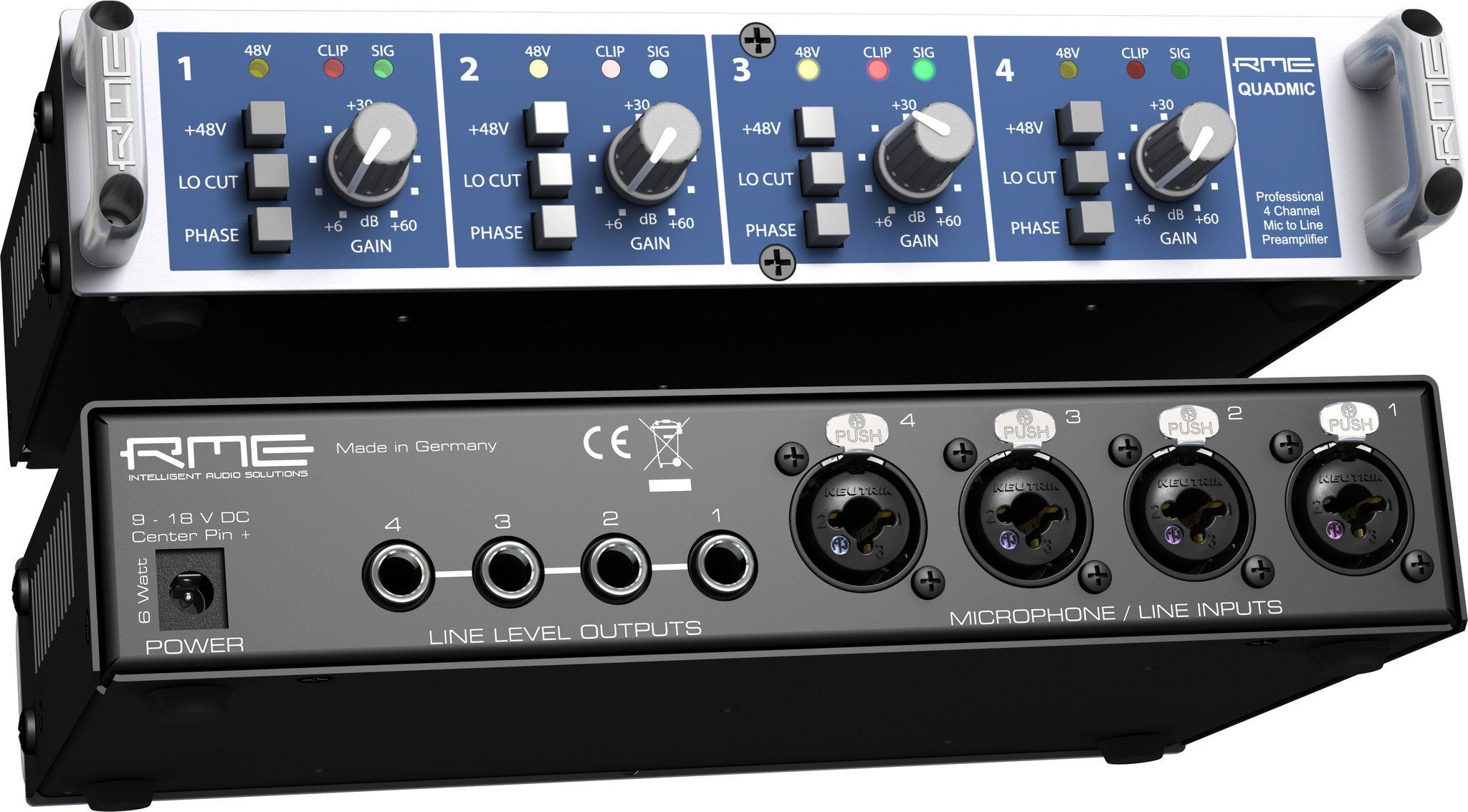

Each of the 4 channels features balanced microphone and line inputs with Neutrik XLR/TRS combo jacks, switchable 48V phantom power, phase reversal and a low cut filter.

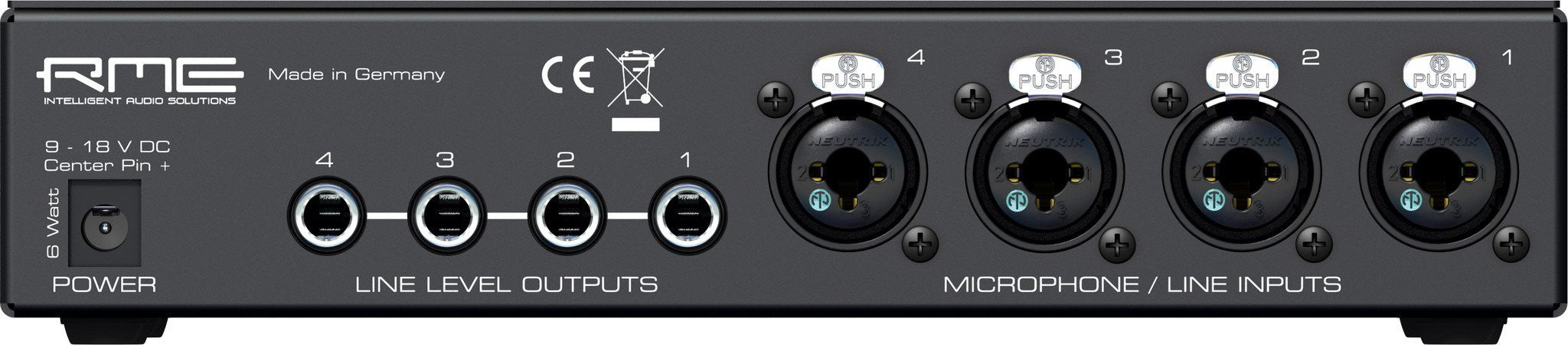

All channels are also equipped with LEDs for signal presence, clip state, and activated phantom power. The input amplification can be set from 6 to 60 dB. The balanced line level output signals are provided on the rear of the unit as four 6.3 mm (1/4") TRS jacks.

A maximum balanced and unbalanced output level of +21 dBu makes the QuadMic II fully compatible to RME's converters and interface series having analog inputs.

The QuadMic II complements any RME system with line inputs by adding external microphone inputs. Since the unit runs on supply voltages from 9 to 18V DC, it can operate on virtually any power source available, including batteries and rechargeable batteries.

Power supply: Operates with voltages ranging from 9-18V DC

Operation with practically any DC power source, including (rechargeable) batteries

High-quality switching power supply included, for worldwide operation at 100-240 Volt

Max. input level XLR: +15 dBu

Max. input level TRS: +21 dBu

Max. output level: +21 dBu

SNR: 129 dB EIN @ 150 Ohm

THD: < 0.0005% @ 30 dB Gain

Wide frequency response with special RF input filter

Frequency response: 5 Hz - 200 kHz, - 0.5 dB

Hi-pass filter at 80 Hz, 18 dB/oct
Quadmic

    External Power Supply for CardBus (NTCB-EU)
    Line Cord for Power supply (NETZ-CB)
    Car Cable for CardBus (AUTOK)
    Cable for Storage Battery (AKKUK)
