Rupert Neve Designs R6 Six Space 500 Series Rack

Product Description
$569.00 $599.00
Maximum quantity available reached.

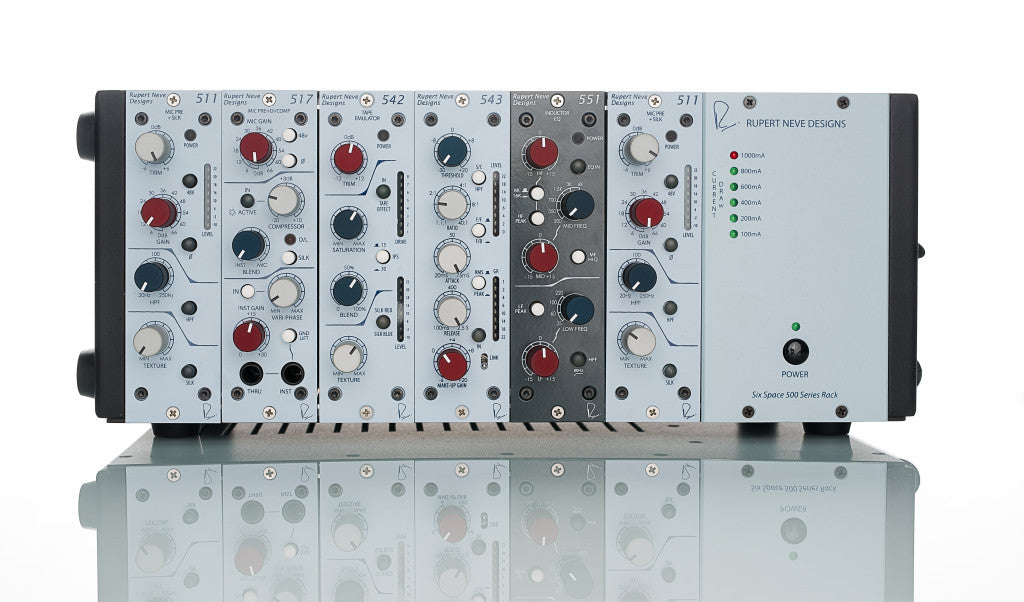

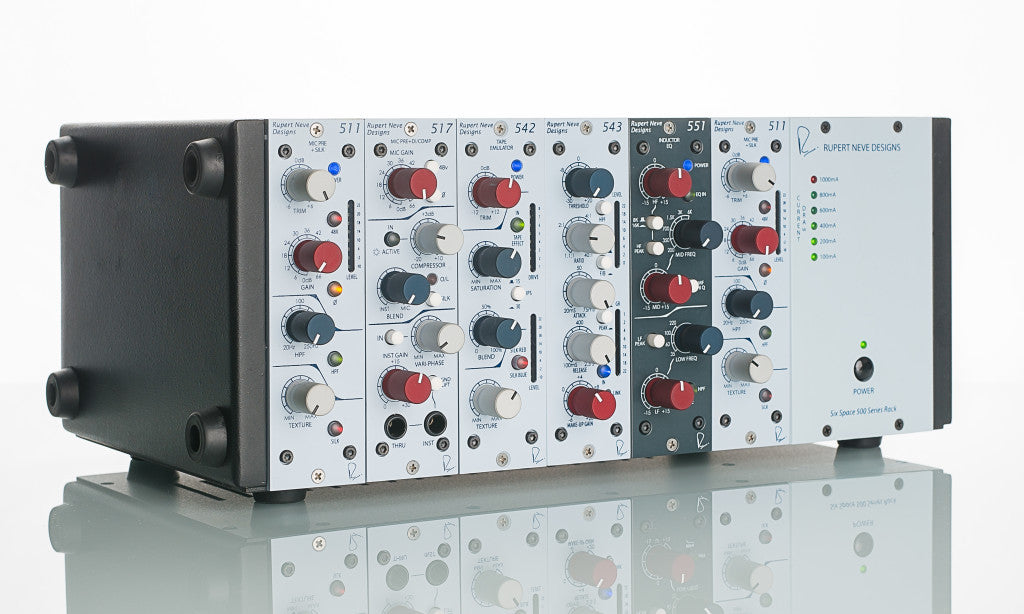

R6 - Rupert Neve Designs 500 Series Rack

With abundant power and versatile connections, the R6 delivers peace of mind for engineers who demand a higher degree of confidence in their 500 series racks.

Power You Can Trust

Power-wise, the R6 has more than 150% the required current for a 6-space chassis to prevent the power rails from failing under a higher-than-expected load. To help monitor and troubleshoot problematic modules, the R6 is equipped with LED current metering to show how much power is being used. The internal power supply itself has been carefully designed and double-shielded to avoid significant magnetic induction in any of the channel positions. With such attention to providing and monitoring power, the R6 helps your modules realize their fullest potential.
Connect Like Never Before

With a plethora of connections available, the R6 backpanel is practically a patchbay on its own. The R6 features 8 channels of balanced I/O options including DB-25, XLR and TRS that may be used interchangeably. This versatility is especially handy when you are taking the R6 with you to another environment where you are unsure of the cables available, or if you need to convert DB-25, XLR or TRS connections to another format using the THRU functionality on channels 7-8.

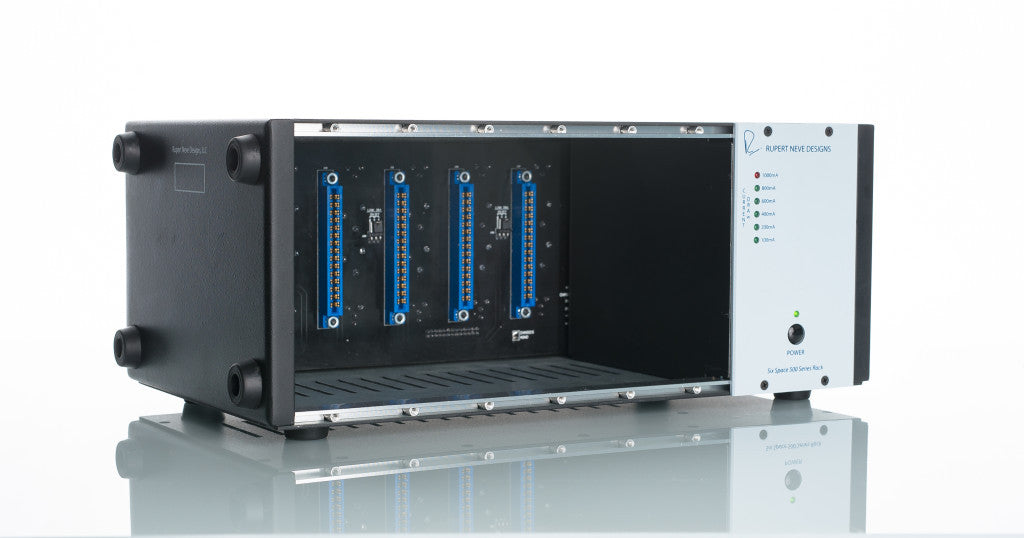

Solid Steel Construction

The chassis is comprised of solid steel with bumpers to support the unit in both horizontal and vertical configurations, and features a collapsable handle for portability. All connectors and fittings are of the highest quality to ensure that the R6 will hold up to many years of use.
A New Level of Confidence in the 500 Series

Because the R6 is built to 500 series specifications, it will work flawlessly with any properly-designed 500 series module you wish to include in it. To help accommodate modules that are slightly out of spec, the R6 has variable-position screw holes to help make the installation process as smooth as possible. The 500 series link function can be enabled in pairs on the R6 using the link jumpers on Channels 1-2, 3-4, or 5-6. Matching blank panels are also available to cover any empty slots.

If you want to get the very best performance out of your 500 series modules, the Rupert Neve Designs R6 is the serious rack for the serious sound you want.
Optional R6 Rack Kit

To mount the R6 into a standard 19" rack frame, there is a rack kit available for R6 racks with serial numbers higher than 250 (shipped after June 2015). When the bottom feet are removed, the R6 takes up 3U of rack space.
500 Series Blank Panel

To fill gaps in the R6, the 510: Blank Panel can be used to create a more seamless look.

510-blank-plate

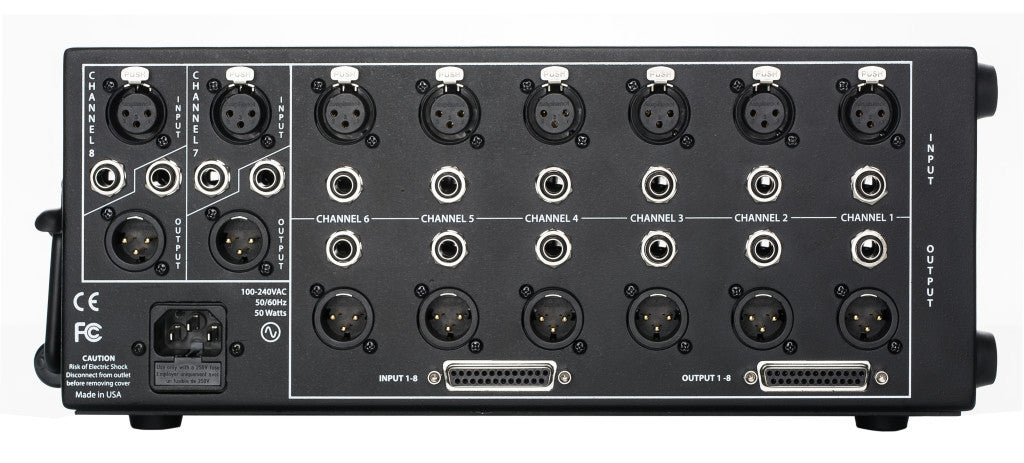

Massive Connectivity

Interchangeable XLR, TRS, and DB-25 I/O connections are provided to ensure that you can connect wherever you go with the backpanel patchbay
Serious Power

Even with modules that overdraw the 500 series specification, the R6 has the reserve power to maintain the voltage

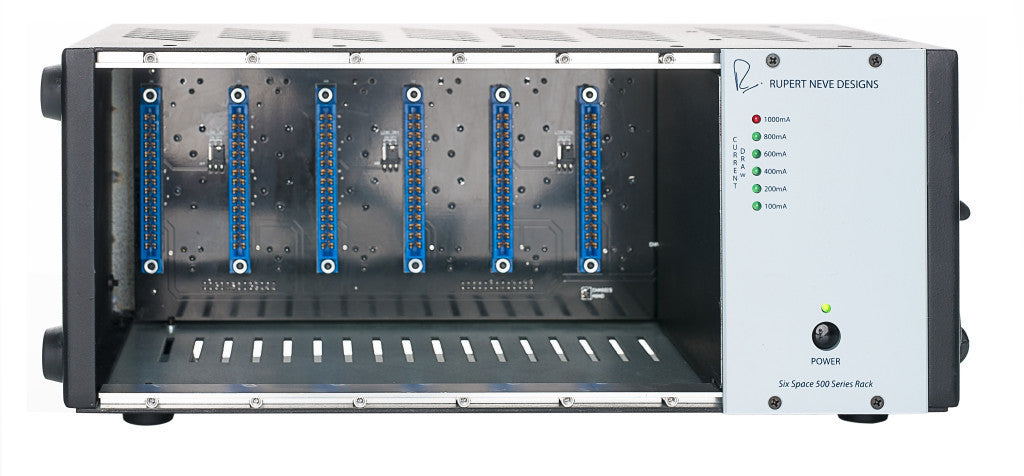

Power Monitoring

An LED Meter monitors the R6 current usage to ensure that you never run short on power. This meter can also be useful for troubleshooting a module that is severely overdrawing its allotment
Channel 7-8 Thru Conversion

The channel 7-8 thru connections can be used as a way to quickly and easily convert your signal from/to DB-25, XLR, and TRS connectors
48V Phantom Supply

Provide rock-solid phantom power to your microphones with the R6’s robust 48V buss

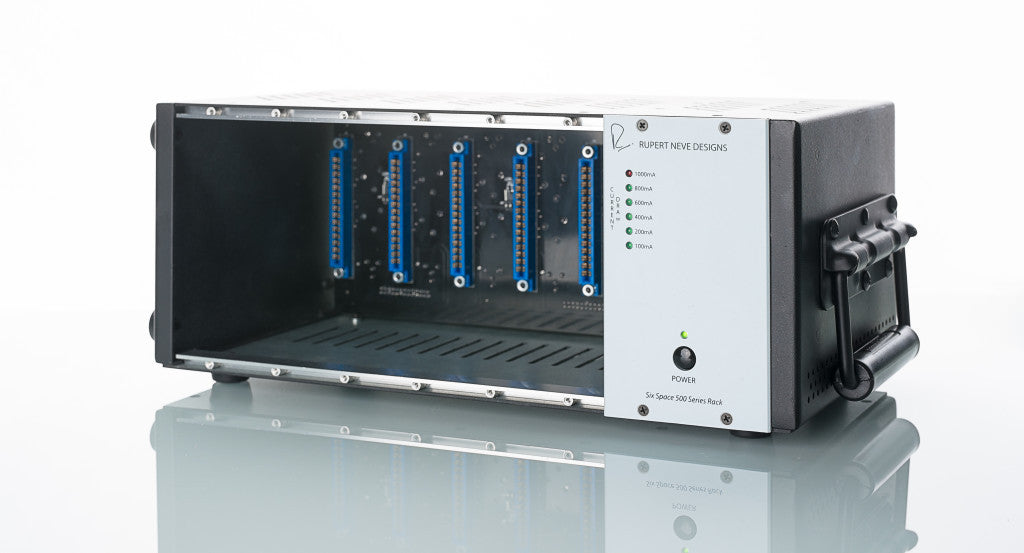

"Built For The Road" Frame

A solid steel enclosure, two sets of rugged rubber feet for horizontal and vertical mounting and a collapsible handle make the R6 completely portable and ready for the road
DC Voltage to Units

+/-16VDC and +48VDC for phantom power
Max Current

1000mA for modules, 150mA for 48V phantom power
Power Requirements

100-240VAC, 50/60Hz, 50 Watts
Weight

9.5lbs
Dimensions

13” long x 7.5”wide x 5.5” high
