RANE SEVENTY-TWO

Product Description
$1,899.00
Maximum quantity available reached.

Maximum performance, ultimate reliability

Solid steel construction - built like a tank for non-stop, heavy-duty use

Ultimate design

Designed with leading Turntablists on the foundation of a globally trusted Seattle, US based engineering heritage, the SEVENTY-TWO’s pristine audio quality (114db SNR USB to analog output), redefines what is possible when true DJ artistry meets groundbreaking technology.

Solid steel construction

The SEVENTY-TWO is solid. With the strength and durability of solid steel and aluminum casing, the gig and battle-ready SEVENTY-TWO mixer represents the ultimate in advanced control needs and performance expectations of today’s DJs.

Interactive performance touchscreen

Powered by Serato DJ Pro software, the SEVENTY-TWO’s 4.3" color touch-screen interface visualizes its moving waveforms, enabling navigation, track selection, FX control and extensive performance preference adjustment too.

Touchscreen & FX
4.3" touchscreen for waveform display, track navigation, customization and X/Y FX control. Stacked Serato DJ Pro FX with internal dual pad FLEX FX

MAG THREE faders
Contactless tension adjustable faders for crossfader and channel faders with reverse, contour controls, and cut-in adjustment



MPC performance pads

16 MPC pads with independent mode controls per deck, Serato control plus special modes for FX, Pitch ‘n Time, transport and custom layer for assignable MIDI

Tech Specs

Display

  • Full-color display with capacitive multi-touch (2.1” x 3.7” / 54 x 95 mm (wxd)) (4.3” / 109 mm (diagonal))

Pads

  • 16x velocity-sensitive multi-color back-lit pads (8 per deck, 10 modes each)

Faders

  • 3x MAG THREE tension-adjustable faders (2 channel/line faders, 1 crossfader)

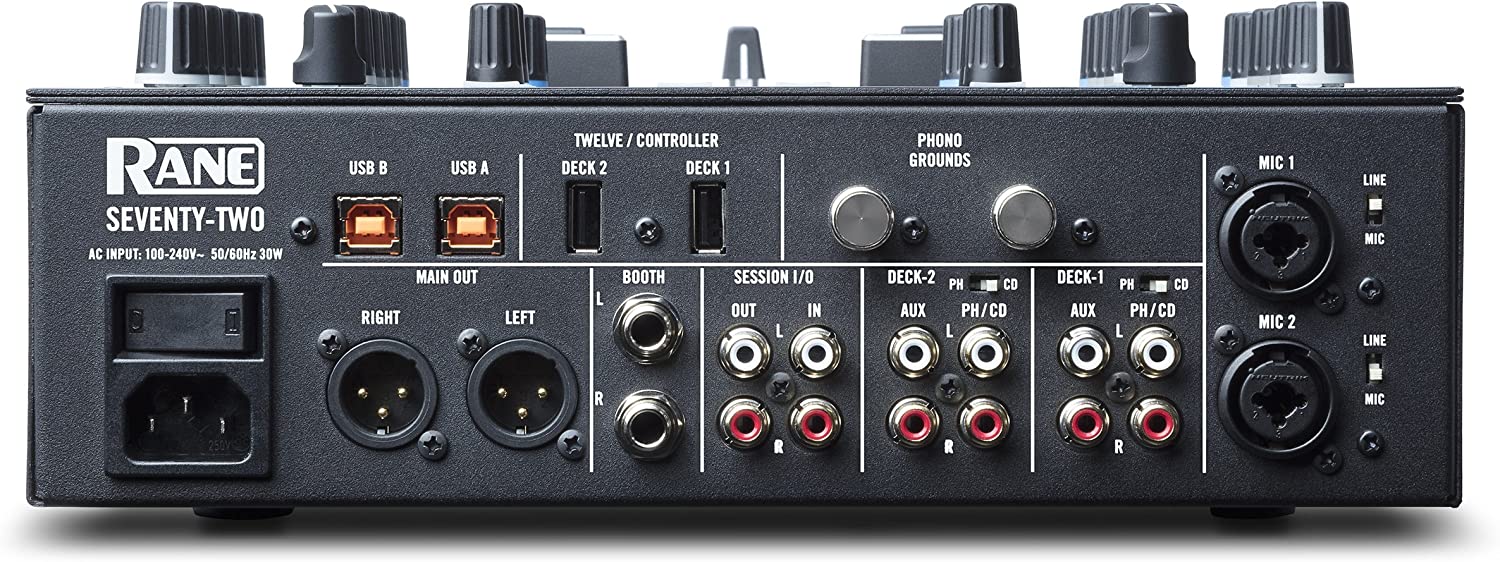

Outputs

  • 2x XLR (Main)
  • 2x 1/4” (6.35 mm) TRS (Booth)
  • 1x RCA stereo pair (Session)
  • 1x 1/4” (6.35 mm) TRS (Headphones)
  • 1x 1/8” (3.5 mm) TRS (Headphones)

Inputs

  • 4x RCA stereo pairs (Deck 1–2)
  • 2x XLR / 1/4” (6.35 mm) TRS (Mic 1–2)
  • 1x RCA stereo pair (Session)
  • 1x 1/4” (6.35 mm) TRS (Footswitch)

Connections

  • 2x USB Type-A ports (Deck 1–2 USB Controllers)
  • 2x USB Type-B ports
  • 1x IEC power cable input

Digital Audio

  • Converters: AKM High Definition Audio; 24-bit PCM, 48 kHz
  • Digital Signal Processing: 32-bit, floating point, double precision
  • Dynamic Range (A-weighted, unity gain):
    • ADC: 114 dB
    • DAC: 114 dB
    • CD Input to Analog Output: 114 dB
    • CD Input to USB Output: 114 dB
    • USB Input to Analog Output: 114 dB

Power

  • Voltage: 100–240V, 50/60 Hz
  • Consumption: 30 W

Dimensions

  • Dimensions (wxdxh): 11.2” x 17.5” x 4.25” (28.4 x 44.5 x 10.8 cm)

Weight

  • 12.0 lbs. (5.46 kg)

Two Deck Inputs

  • Left Deck and Right Deck
  • Source selects
    • USB-A
    • PH-CD
    • AUX
    • USB-B
  • PH-CD RCA Inputs
    • Select Phono (RIAA) or CD (line-level)
    • CD setting
      • 4 Vrms maximum input
      • A-weighted DR 114 dB
    • Photo Setting
      • RIAA Curve, +0.1/-0.2dB
      • Gain @ 1kHz = 30 dB
      • Maximum input at 1 kHz = 126mV
  • AUX RCA Input
    • 4 Vrms maximum input
    • A-weighted DR 114 dB
  • Gain Trim
    • Off at minumum
    • 0dB @ center position
    • +15
  • Tone Controls
    • Full-cut 2nd order filters
    • Off @ minumum, flat at center, +6 dB maximum
    • Crossover frequencies 300 Hz and kHz
  • Manual swept filter
    • Flat at center, CCW = High-cut, CW = Low-cut
    • 4th order, adjustable Q

Session Inputs

  • RCA Inputs
  • Max Input 4 Vrms
  • A-weighted DR 114 dB

Analog to Digital Converters

  • AKM High Definition Audio
  • 24-bit PCM, 48 kHz

Digital to Analog Converters

  • AKM High Definition Audio
  • 24-bit PCM, 48 kHz

Digital Signal Processing

  • 32-bit, floating point, double precision

A-weighted Dynamic Range (unity gain)

  • ADC, 114 dB
  • DAC, 114 dB
  • Single CD Input to any Analog Output, 111 dB
  • Single CD Input to USB Output, 114 dB
  • Single USB Input to any Analog output, 114 dB

USB Ports

  • Two Device Ports
  • Two powered Hub Ports
    • +5V @500mA
    • Connect RT01 Controller
    • Auto-switch HUB ports between USB-A and USB-B
      • Determined by Input Selection
  • USB 2.0 Class-compliant Audio and MIDI
    • No driver needed for MAC
    • Universal ASIO driver for windows
    • 24-bit PCM, 48 kHz SR
    • USB Port Audio for USB-A and USB-B
      • Record
        • Deck-1 Pre L/R
        • Deck-2 Pre L/R
        • Deck-1 Post L/R
        • Deck-2 Post L/R
        • Mix L/R
        • Mics L/R
        • Session L/R
      • Playback
        • Deck-1 L/R
        • Deck-2 L/R
        • Sampler L/R

Two Mic Inputs

  • Mic-1 Features
    • XLR/TRS Combo Jack
    • Mic/Line Select on Rear Panel
      • Dynamic Mic, Analog Gain 30dB, Max Input 0.126 Vrms
      • Line, Analog Gain 4.75 dB, Max Input 2.3 Vrms
    • ON/OFF switch
      • Press to toggle on/off
      • Press and hold to enable auto talk-over
        • Duck level = 10 dB
    • Gain Trim: Off to +20dB (unity at center)
    • Tone Control
      • One knob tilt tone control
      • Max boost/cut = 10 dB
    • Echo Effect (Mic-1 Only)
      • Echo enable button on top plate
      • Echo Depth Control on Front Panel
  • Mic-2 Features
  • XLR/TRS Combo Jack
  • Mic/Line Select on Rear Panel
    • Dynamic Mic, Analog Gain 30dB, Max Input 0.126 Vrms
    • Line, Analog Gain 4.75 dB, Max Input 2.3 Vrms
  • ON/OFF switch (front panel)
    • Toggle on/off
  • Gain Trim (front panel)
    • Off to +20dB (unity at center)
    • On front Panel
  • Tone Control (front panel)
    • One knob tilto tone control
    • Max boost/cut = 10 dB

Line Outputs

  • Balanced XLR Main Output
    • Frequency Response Flat 20 to 20 kHz (+/- 0.2 dB)
    • Maximum Output, 8 Vrms
    • THD+N, 0.002%, 1 kHz, 4 Vrms
  • Balanched TRS Booth Output
    • Frequency Response Flat 20 to 20 kHz (+/- 0.2 dB)
    • Maximum Output, 8 Vrms
    • THD+N, 0.002%, 1 kHz, 4 Vrms
  • Unablanced Session Output
    • Frequency Response Flat 20 to 20 kHz (+/- 0.2 dB)
    • Maximum Output, 4 Vrms
    • THD+N, 0.02%, 1 kHz, 2 Vrms

Headphones

  • 1/4" TRS and mini 3.5mm TRS Jacks
  • Max ouput voltage, 4V, (no load)
  • THD+N @ 2Vrms = 0.003%
  • Power Into 50 ohms, 96mW
  • Turn on/off muting

Universal AC Mains Power Supply

  • AC Input: 100 to 240 AC, 50/60 Hz, 30 watts

Minimum System Requirements

  • Operating System
    • macOS High Sierra 10.13
    • macOS Sierra 10.12
    • Mac OS X 10.11
    • Windows 10
    • Windows 8.1
    • Windows 7
  • Processor
    • i3: 1.07GHz
    • i5: 1.07GHz
    • i7: 1.07GHz
  • Screen Resolution
    • 1280x720
  • Memory
    • 4 GB
  • USB
    • Available USB 2.0 port
  • Free HDD Space
    • 5 GB
