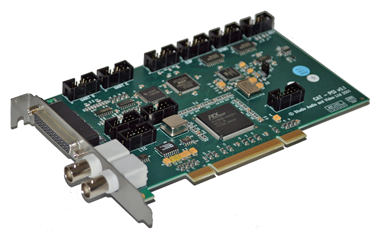

The CAT card provides a video reference input and timecode interface with 4 channels of RS422 as an optional accessory for the PCM4, PCM8, PCM-H16, PCM-H64 and PCM-H128 systems.

An appropriate cable for the specific system is supplied with the card. When connecting to a BoB800 Break-out Box, a 25-way D-sub cable is supplied.

SPECIFICATIONS
half length PCI card providing Timecode and machine control I/O
Video Input
Termination Card applies 75Ω termination
Sync amplitude Pulses should be 300mV when terminated in 75Ω
Connector 75Ω BNC
Video Output
Source Impedance 75Ω
Connector 75Ω BNC

SPECIFICATIONS Cont.
Control
connector 25-way D-sub male connector
Format 4 x RS422 connections
Industry standard machine control pin-out via 9-pin break-out.
