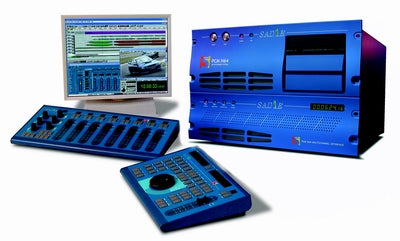

SADiE PCM-H64 Multi-channel recorder / editor

Product Description
Free
Maximum quantity available reached.

Overview

The SADiE PCM-H64 system is a multitrack digital recorder which can benefit from the full range of SADiE editing and processing features which comprise SADiE 6 software.

The PCM-H64 can slot seamlessly into a range of traditional analogue or digital studios, with modular I/O available in multiples of 16 channels up to 64 in 64 out. The PCM-H64 comes in two form factors: the 4u MADI version and the 7u "Expander" version. The former provides digital I/O only on a MADI interface. The latter provides an expansion chassis into which can be plugged a range of cards known as "slithers" providing flexible combinations of analogue and digital I/O options. The Expander section has slots for up to 12 slithers, allowing for configurations that include up to 64 channels of Analogue and digital I/O. The available cards are: Two different software interfaces are available according to the intended use: firstly, for high channel count recording, the "LiVE" branded systems are supplied with MultiTrack Recorder software. This is a streamlined, one-window interface which offers quick and easy control over stream and stem record enabling, locating, and drop in/out. For more complex mixing and editing, the full SADiE 6 workstation software adds a huge range of features appropriate to mixing, editing, post production and mastering.

Location recording using MTR software

For taking a multitrack recorder to a venue equipped with a digital desk, a PCM-H64 MADI system is a very compact and easily-rigged option. Offering 64 channels of MADI (and MADI-X) recording in a 4U rack, it is easily connected to the console and can record audio directly to the required format, whether WAV, AIFF or SDII, using primary and mirrored secondary disks. So whether you're delivering the recording for post-production by SADiE, Pro Tools, Fairlight or any other workstation, as soon as the show is over, the audio drives may be removed and taken away without any delay or the audio can be transferred over a network connection. As a location recorder, SADiE is a highly efficient multi-format audio acquisition tool.

Music studio multitrack recorder using SADiE 6 software

Equipped with up to 64 channels of IO (MADI, AES3, or analogue mic/line) the PCM-H64 system slots into a music studio in place of a multitrack tape recorder. All track arming, locating, and transport controls are controllable from a console via 9-pin, and SADiE will perform perfectly in a machine room without ever drawing attention to itself. When it comes to mixing and processing, the resolution and sound quality of SADiE's onboard processing is a step above anything else which is usually used in a music studio. Imagine having mastering-quality sound and processing accuracy over all 64 channels - that's just one of the benefits of using SADiE in a multitrack environment.

COMPLIANCE
CE marked Yes
Conforms to the following standards: EN50081-1 (EN55022);1995
EN50082-1 (EC 801-2,3,4); 1992
LV and EMC Directives: 73/23/EEC
89/336/EEC


PHYSICAL
Turnkey MADI system supplied in 4u 19" rack-mounting chassis, Expander version supplied in 7u (4u + 3u) 19" rack-mounting chassis.
Dimensions
Height 4u 180mm (MADI version)
7u 315mm (Expander Version)
Width 485mm
Depth 550mm (MADI version)
560mm (Expander Version)
Weight <20kg (MADI version)
<40kg (Expander Version)


ELECTRICAL
Voltage 100 - 240V AC 50-60Hz
Power Consumption <300W steady state (MADI version)
<600W steady state (Expander version)
Fuse

5A (T)
