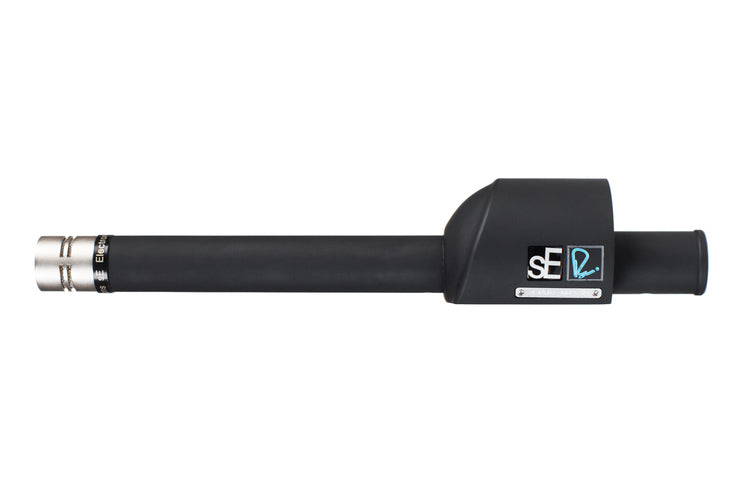

SE Electronics RN17

Product Description
$967.00
Maximum quantity available reached.
SE Electronics RN17

Designed with Mr. Rupert Neve, the RN17 redefines the capabilities of an SDC.
This is the world's first pencil microphone with a large-scale, hand-wound, ultra high performance transformer.

The second product of the sE / Rupert Neve collaboration, work on the RN17 began with a discussion between Rupert and Siwei Zou on the merits and problems of small-diaphragm condensers.

According to Siwei, "The SDC's problem is that they have a very clear sound - the SPL is high, but the sound is very cold, not like with a large diaphragm. The quality of the transformer can make the sound much, much better - but with a small transformer, nobody can do it."

"Rupert told me, 'I want THIS transformer.' I said, 'That transformer is too big. This is a small-capsule microphone. Impossible.' He said, 'I want the impossible to be possible.'"

SPECIFICATIONS
  • Capsule Type: Hand-Crafted True Condenser
  • Diaphragm: 17.2mm Gold/Mylar
  • Directional Pattern: Cardioid (omnidirectional capsule available separately)
  • Frequency range: 20 Hz - 20 kHz
  • Impedance: 200 Ohms
  • Sensitivity: 5.96 mV/Pa (-44.5dB)
  • Sensitivity (Figure-8): 2.51 mV/Pa (-52dB)
  • Max SPL: 131 dB (0.5% THD @ 1kHz)
  • Signal to Noise Ratio: 76 dB
  • Self Noise: 18 dB(A) (cardioid), 15 dB(A) (omni)
  • Matching Connectors: XLR3F
  • Power requirement: 48V phantom
  • Weight: 320g / 11.32oz
  • Diameter: 44 mm (transformer), 17mm (capsule)
  • Length: 200 mm

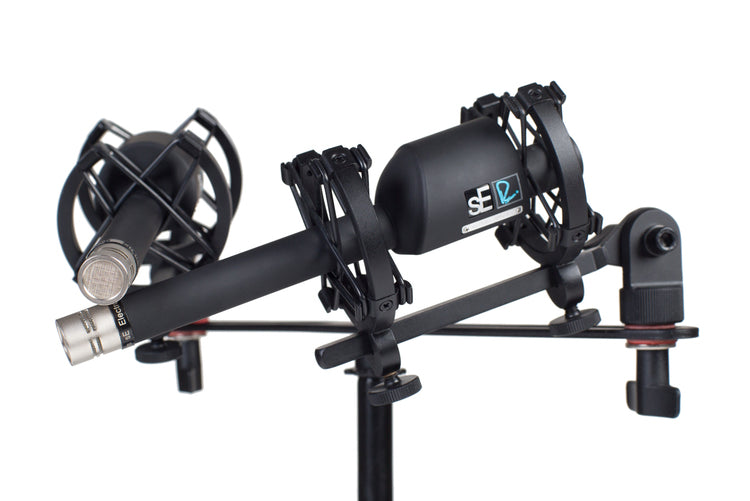

  • Stereo Bar (Matched Stereo Pair Only)
  • Weight: 245 g / 8.64 oz
  • Dimensions: 300 x 25 mm
  • Max. width between mic mounts: 276 mm
  • Min. width between mic mounts: 58 mm
Sku: RN17
