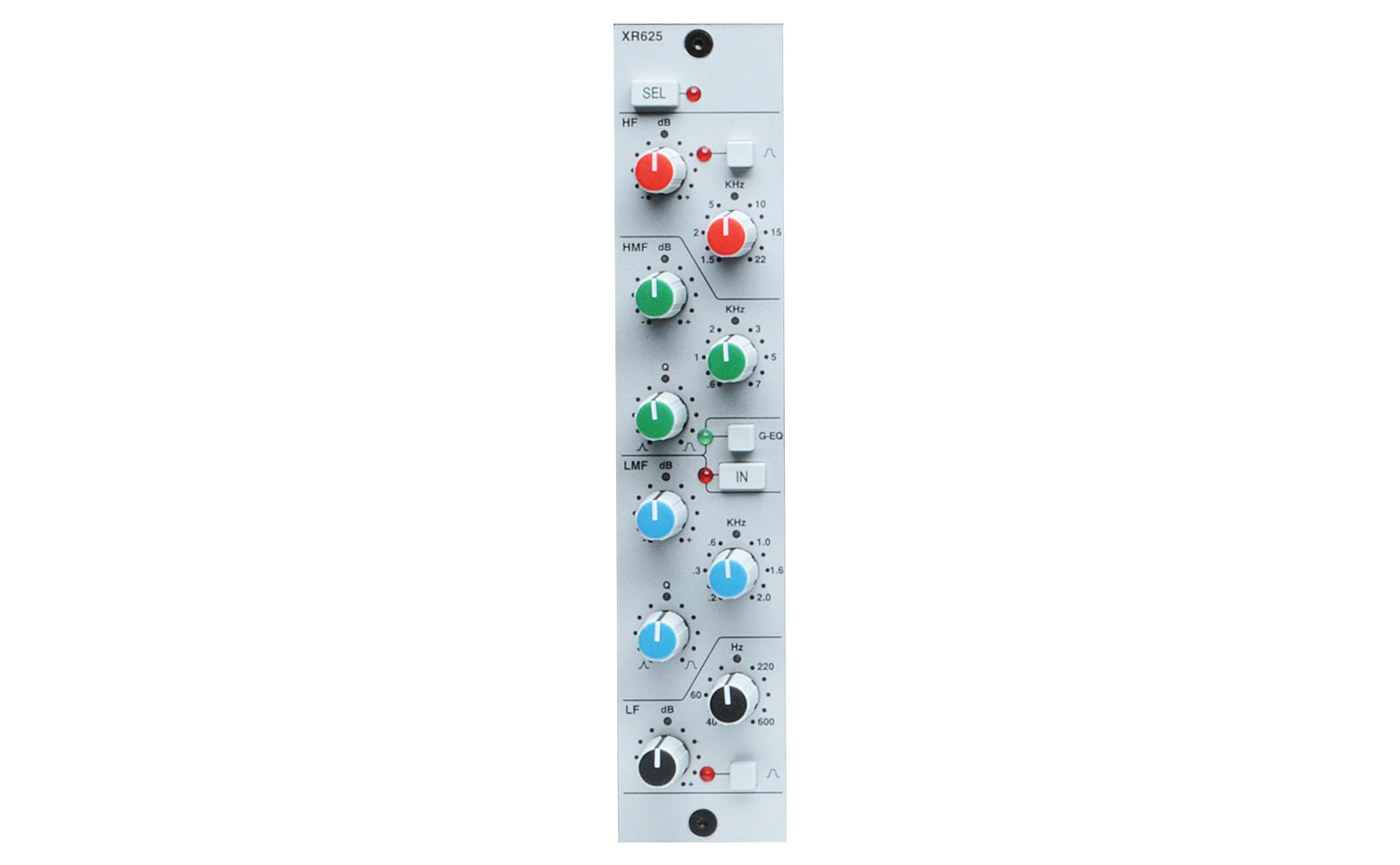

Solid State Logic X-Rack Channel EQ Module

Product Description
$894.60
Maximum quantity available reached.
X-Rack Channel EQ Module

Classic SSL four-band parametric EQ that is a superb all round frequency adjustment tool kit. Whether you need pinpoint accuracy for surgical problem solving, smoother broader sound shaping or a little more aggressive character the SSL EQ will give you what you need. This is a fully featured EQ with high- and low-bands switchable between shelving or fixed Q bell curves and two mid-bands each with variable Q control.

Key Features:
✓ Direct copy of the XL 9000 K Equaliser as used on Duality & AWS 900+ consoles
✓ E and G characteristic switching
✓ High and low-bands switchable between shelving and fixed Q bell curves
✓ Switchable between SSL E and G series console channel EQ characteristics
✓ EQ IN switch for A/B comparison
✓ Rear panel connections on balanced XLR
✓ TotalRecallTM status LEDs

A little SSL EQ history
Prior to 1987 SSL used the colour of the Low Frequency EQ knob caps to indicate which type of EQ was fitted. All consoles were custom built and could feature different combinations of EQ module. The following colour codes apply:

E Series BROWN: The original SSL EQ fitted to all consoles prior to the summer of 1985. Despite the rumours these equalisers only came in one version. The EQ card was called the '02'.

E Series ORANGE: The infamous EQP equaliser. This was a variation on the Brown EQ with controls simulating the curves of a valve type EQ. Very few were sold. This card was named the '132'.

E Series BLACK: The last version of the standard E series EQ. It evolved in the early 1980's from discussions with many top engineers and proved very popular. The EQ card was called the '242'.

G Series: With the arrival of the G Series console in 1987 the colour coding was abandoned and the classic SSL end cap colour scheme used today was adopted. First introduced in 1987 the original G Series EQ introduced Q characteristics which were proportional to gain settings and had a degree of over shoot when boosting and under shoot when cutting.

The current generation of SuperAnalogueTM console EQ (featured on Duality, AWS & the mono X-Rack EQ Module) are switchable between EQ characteristics that offer either the E Series 'Black' EQ or the G Series EQ.

The X-Rack Stereo EQ Module is the first product to introduce 'Selective Mode' E & G curve selection, enabling independent switching between E Series 'Black' & G Series EQ curves for the high/low bands and the two mid bands to create a uniquely versatile EQ design.
