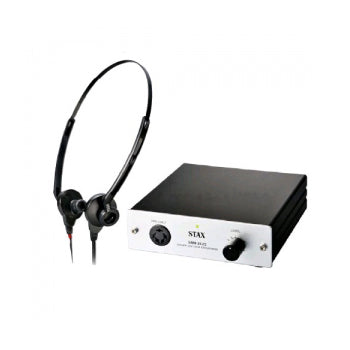

STAX SRS-005SMK2

Product Description
$700.00
Maximum quantity available reached.
The SR-003MK2 is a 5-pin PRO bias type in-the-ear earspeaker, and can be used by connecting to a driver unit having 5-pin PRO bias output socket. The redesigned ear canal type structure of the SR-003 enables you to enjoy excellent electrostatic sound quality without covering your ears. The SR-003MK2 connects to STAX driver units or adapters equipped with 5-pin type PRO bias output.

Re-designed Ear Piece
Re-designed ear piece with 3 silicone ear bud sizes.

LIGHTER DIAPHRAGM
15% lighter than the S-001/MK2 results in further resolution, transparency and purer listening pleasure.

The SRM-252S is an exclusive driver unit (amplifier) for driving STAX ear speakers with PRO-bias 5 pins. Its line input can directly connect to the audio output terminal of CD player, portable audio player and PC. The SRM-252S has a simple design that excels in sound quality employing the carefully selected newest high-voltage transistors and low-noise FETs. The output stage featuring the emitter-follower configuration reinforces the driving performance and also realized the smooth sound quality. Moreover, the class-A amplification throughout the stages with no coupling capacitors reproduces exhaustively the finest nuance of music. Although the SRM-252S includes a class-A DC amplifier in a compact CD jacket size case, the internal heat is effectively dissipated through the chassis of aluminum extrusion material to improve the reliability over a long period of time. Also, the parallel output terminal was added to distribute the source signal so that a loud speaker may also be simultaneously used when source equipment has only a pair of output terminals.

SR-003 SPECIFICATIONS:

✓ Type: Push-Pull electrostatic circular sound element, In-The-Earcanal type enclosure
✓ Frequency Response: 20-20kHz (4dB)
✓ Capacitance: 44pF (including cable)
✓ Sensitivity: 110dB / 100V r.m.s. 1 kHz
✓ Bias Voltage: 550-580V D
✓ Ear Pads: Silicone earbuds (Small, Medium, or Large) Medium included
✓ Cable: parallel 6-core, 1.5m full length
✓ Weight: 0.4oz without cable / 1oz with cable

SRM-252S SPECIFICATIONS:

✓ Type: All-stage semiconductors, Low-noise dual FET input Class A operation, Pure balance DC amplifier configuration Earspeaker driver unit
✓ Frequency Response: DC to 35,000Hz with SR-207 (with SR-207)
✓ High Harmonic Distortion: Max 0.01% (1kHz at 100V r.m.s. )
✓ Gain: 58dB (x800)
✓ Input Terminal: 1 RCA with 1 RCA parallel out
✓ Rated Input Level: 125mV / 100V Outputs
✓ Max. Input Level: 30V (at minimum volume level)
✓ Input Impedance: 50KΩ(RCA)
✓ Max. Output Voltage: 280V r.m.s. (1kHz)
✓ Standard Bias Voltage: PRO 580V x 1
✓ Power Voltage Frequency: 117V (50Hz / 60Hz)
✓ Power Consumption: 4W DC12V
✓ Temperature & Humidity: 0 to 35ºC / 90% max. without condensation
✓ Dimensions: 5.2 (W) x 1.5 (H) x 5.2 (D) in
✓ Weight: 1.2lbs
✓ Color: Silver
✓ Voltage: 120V/60HZ
✓ Warranty: 1-year U.S. limited warranty
Sku: SRS005SMK2
Vendor: STAX
