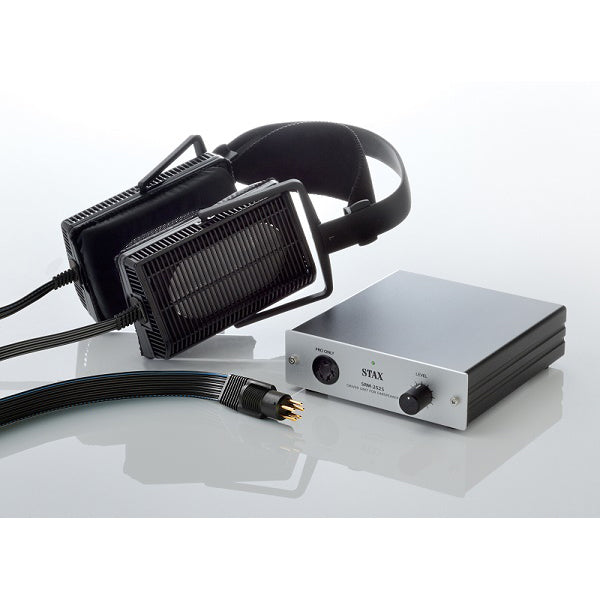

STAX SRS-3100

The SR-L300 earspeaker employes new hand selected thin film diaphragm and tough stainless fixed electrodes. Rich deep bass response, delicate high frequency and soothing mid-range has been achieved in a balanced manner.

The SRM-252S is an exclusive driver unit (amplifier) for driving STAX ear speakers with PRO-bias 5 pins. Its line input can directly connect to the audio output terminal of CD player, portable audio player and PC. The SRM-252S has a simple design that excels in sound quality employing the carefully selected newest high-voltage transistors and low-noise FETs. The output stage featuring the emitter-follower configuration reinforces the driving performance and also realized the smooth sound quality. Moreover, the class-A amplification throughout the stages with no coupling capacitors reproduces exhaustively the finest nuance of music. Although the SRM-252S includes a class-A DC amplifier in a compact CD jacket size case, the internal heat is effectively dissipated through the chassis of aluminum extrusion material to improve the reliability over a long period of time. Also, the parallel output terminal was added to distribute the source signal so that a loud speaker may also be simultaneously used when source equipment has only a pair of output terminals.

SR-L300 SPECIFICATIONS:
Type: Push-Pull electrostatic oval sound element, Open-Air type enclosure
Frequency Response: 7 - 41,000Hz
Capacitance: 110pF (including cable)
Sensitivity: 101dB / 100V r.m.s. 1 kHz
Bias Voltage: 580V DC
Left & Right Channel Identification: L' and 'R' indicated on the arc assembly, solid line (left) and dotted line (right) on cable
Ear Pads: High-quality synthetic leather
Cable: OFC parallel 6-strand, low-capacity wide cable, 2.5m full length
Ambient Temperature & Humidity: 0 to 35ºC / 90% max. without condensation
Weight: 11.4oz without cable / 15.8oz with cable

SRM-252S SPECIFICATIONS:

✓ Type: All-stage semiconductors, Low-noise dual FET input Class A operation, Pure balance DC amplifier configuration Earspeaker driver unit
✓ Frequency Response: DC to 35,000Hz with SR-207 (with SR-207)
✓ High Harmonic Distortion: Max 0.01% (1kHz at 100V r.m.s. )
✓ Gain: 58dB (x800)
✓ Input Terminal: 1 RCA with 1 RCA parallel out
✓ Rated Input Level: 125mV / 100V Outputs
✓ Max. Input Level: 30V (at minimum volume level)
✓ Input Impedance: 50KΩ(RCA)
✓ Max. Output Voltage: 280V r.m.s. (1kHz)
✓ Standard Bias Voltage: PRO 580V x 1
✓ Power Voltage Frequency: 117V (50Hz / 60Hz)
✓ Power Consumption: 4W DC12V
✓ Temperature & Humidity: 0 to 35ºC / 90% max. without condensation
✓ Dimensions: 5.2 (W) x 1.5 (H) x 5.2 (D) in
✓ Weight: 1.2lbs
✓ Color: Silver
✓ Voltage: 120V/60HZ
✓ Warranty: 1-year U.S. limited warranty
