Vicoustic | Trap Fuser

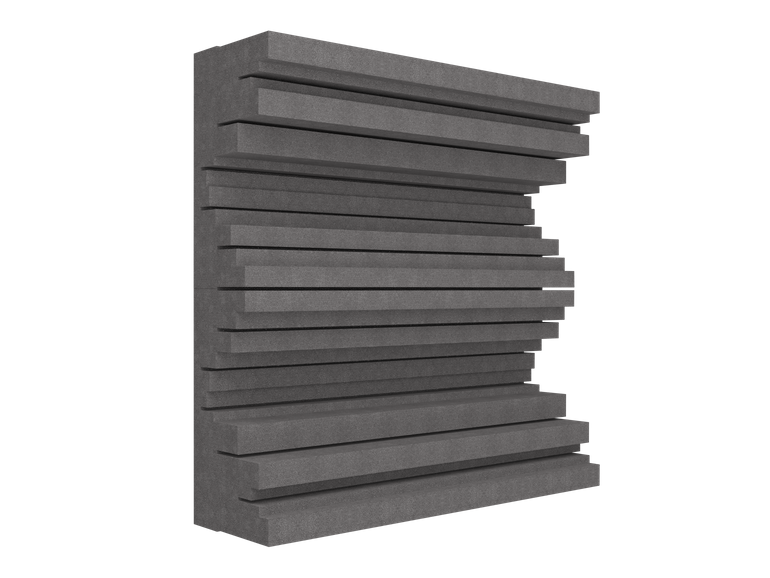

Trap Fuser

Panel for diffusion control

Manufactured from high-quality EPS (Expanded Polystyrene), the Trap Fuser is a unidirectional panel that controls sound reflections in two different ways – absorption and diffusion. Its hybrid structure allows sound energy to either be trapped in the cavities or scattered by the plain surfaces. Usually applied for the treatment of mid or high frequencies, the Trap Fuser panel represents true acoustic science development. Designed for a range of frequencies between 630 Hz to 5KHz.

In many practical applications, especially those that require a large area of diffusion treatment, it is common to repeat the same diffuser, so as to introduce periodicity into a sequence. This will concentrate the reflection energy in the diffraction orders of the grating and result in a narrower diffusion pattern.

The innovation with the Trap Fuser RD lies in the freedom to position the panel’s two halves and create random sequences. By rotating these diffusers in different directions, you can achieve combinations of patterns that are not only appealing to the eye but also extremely efficient when the aim is diffusing sound in a particular area.

You may also install this product with the new VicFix J Profile fixation system using VicFix Base, sold separately.

Main Info

• Dimensions: 595 x 595 x 169mm
• Scratch Resistance: No
• Washable: No

Performance

• Functionality: Absorption & diffusion
• Absorption Frequency Range: Medium Frequencies
• NRC: 0,35

Fire Rate

• Europe: Euroclass E

Packaging Information

• Units/Box: 6
• Box Dimensions: 530x910x620mm
• Box Gross Weight: 16,20 Kg

Installation

• Installation: Wall, Ceiling

• Accessories: Flexi Glue Ultra, VicFix Base

Disclaimers

• Please notice that the dimensions of these panels have a tolerance of +/- 2mm. A slight color variation may occur between different batches. The product images used are illustrative and may differ from the actual product.
